Replacement cranks

Landlord from Madison, WI
May 23, 2024 10:27 pm
Hello,
Looking to replace some cranks and I need a little guidance. They are Truth cranks. I measured 8-3/4 for the arm, but I probably didn't measure correctly. I will have to go back and do it again. I did take some pictures of the model numbers, but not sure how much they will help. Any guidance would be appreciated.

Alex

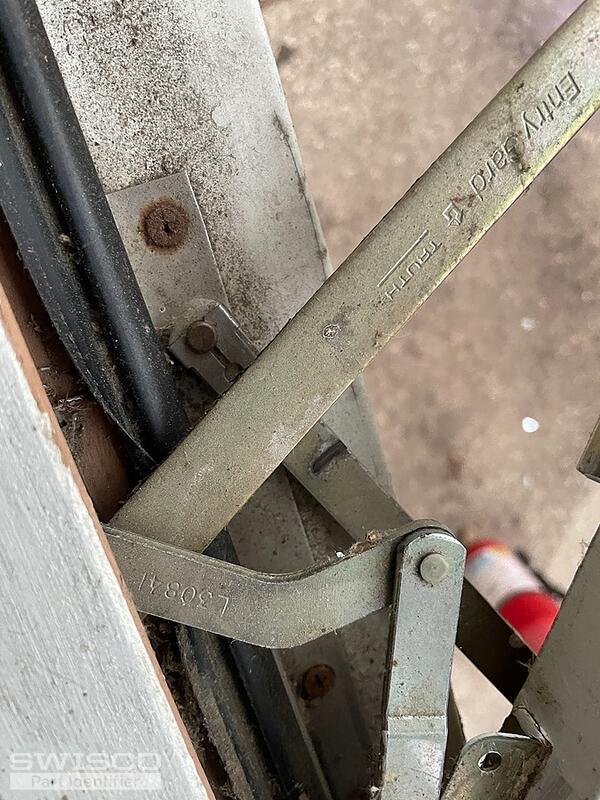

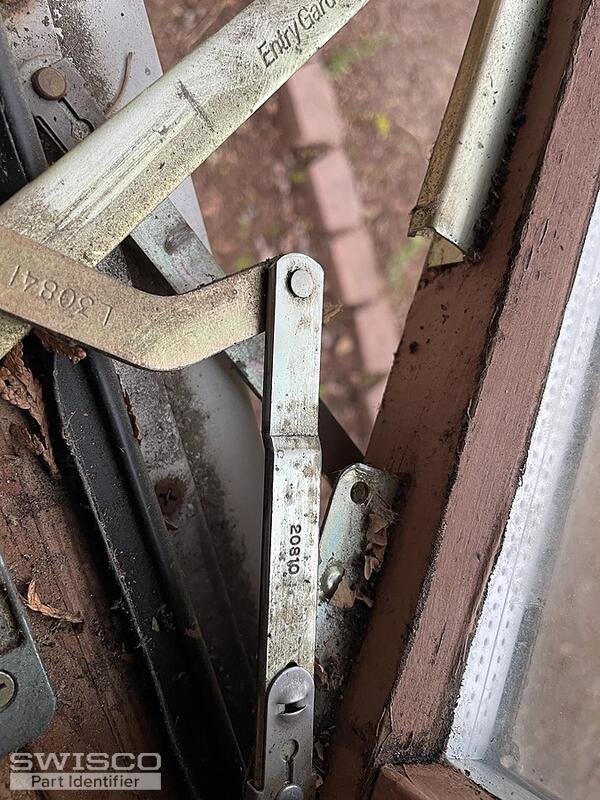

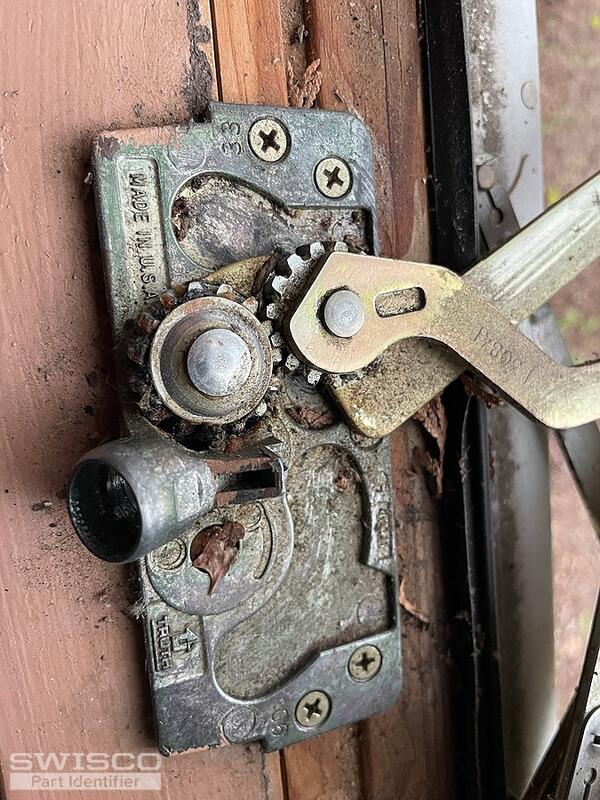

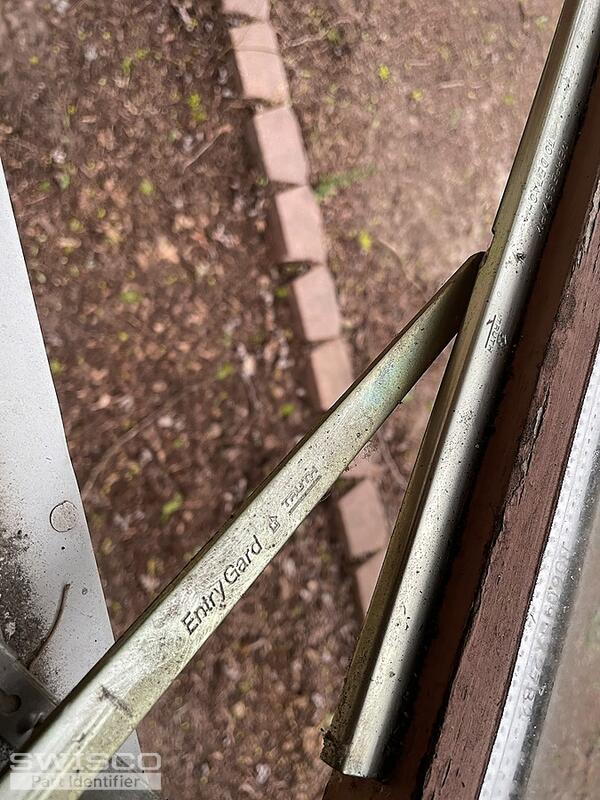

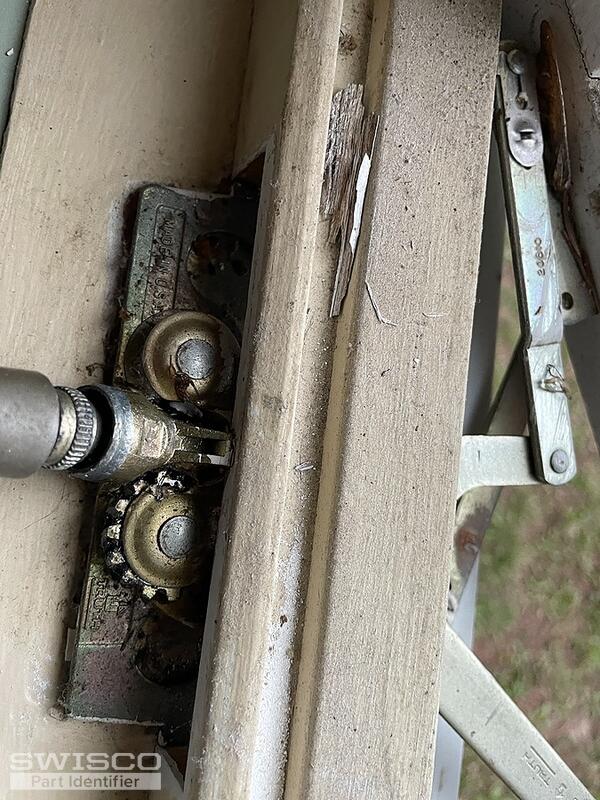

IMG_4944 IMG_4940 IMG_4941 IMG_4943 IMG_4939
5 user uploaded images
3 Replies
+ Add a Comment
Bob
Bob from SWISCO
May 23, 2024 11:54 pm
SWISCO
EXPERT

Hi Alex. I suspect you have our 39-031 and 39-032 EntryGard Dual Arm Operators. Just make sure the dimensions shown below match exactly what you have. Let me know if anything is off. For a new cover and handle, see the 39-114L and 39-107 sold separately.

Dimensions for 39-031
Dimensions for 39-031

Landlord from Madison, WI
May 27, 2024 10:18 pm
Hi Bob,
Yep, you were exactly right. I measured yesterday and that's exactly what they were. Thank you!
Bob
Bob from SWISCO
May 28, 2024 9:22 am
SWISCO
EXPERT

Awesome, I'm glad to hear it! Please feel free to reach out if we can be of any further assistance.
