Replacement detents

Quick Learner from Venice FL
Hi I need replacements for 5 wimdows
3 sets) 36 4 GW CMC 7
2 sets) 36 9 HE CMC 7
2 user uploaded images
6 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! I am confident we can provide you with the replacement balances you need. Although, I'll need to see the top and bottom attachments from the balance to identify them. Please also provide a photo of the pulley and spring inside the channel.

Please feel free to reach out with any questions.

Quick Learner from Venice FL

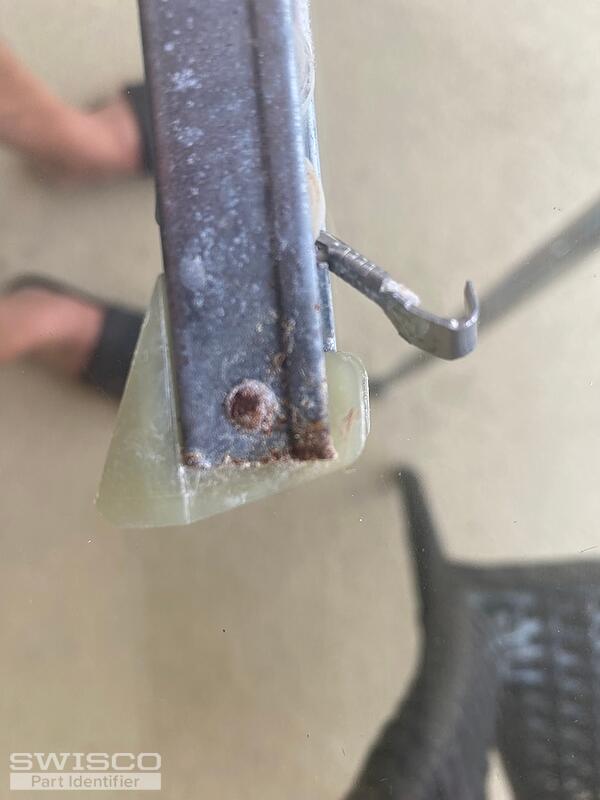

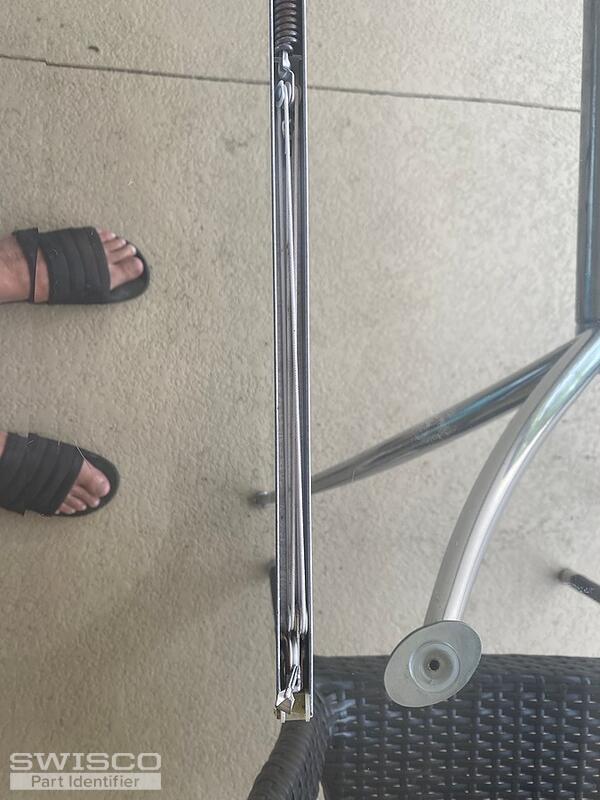

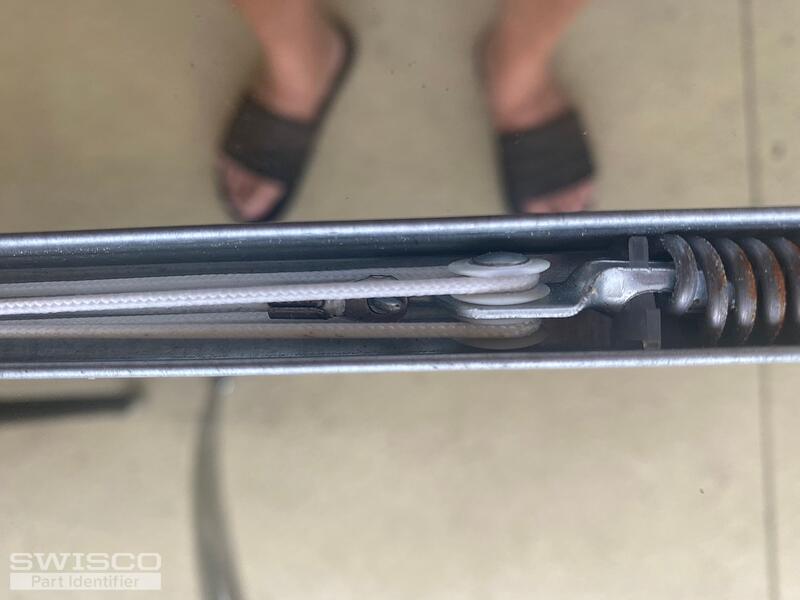

Jasmine, This is the information you requested. Please let me know if you need anything further.
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Both of your window balances can be replaced with the S395-37 Channel Balances. Like yours, these have a wingless top guide and a wingless bottom shoe.

For the balances marked with a 36 4, you can likely use the 3640 stamp but it would be a good idea to double check that you sash weighs 23 to 30lbs.

I'm not able to cross-reference the 36 9 stamp, so you'll need to obtain the exact sash weight. There is a chart below the balance description that lists the weight range each stamp can support.

Quick Learner from Venice FL
Hello. The sash weight is 40 lbs.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Okay, great! Thanks for confirming. You can select the 3665 stamp option. This will support a sash weighing 39 to 42lbs.
