Replacement door rollers

A home owner from Hendersonville, NC says:
Need replacement rollers for old Peachtree sliding glass doirs
Thumbnail of the uploaded file named 8363841D-04C1-4938-AD3C-46757C1D5FEA.jpeg
Thumbnail of the uploaded file named 362A43E8-8C36-45C6-B895-D5FC2311156F.jpeg
Thumbnail of the uploaded file named A8B80EE7-0DDF-409B-8504-DB820ABD7B57.jpeg

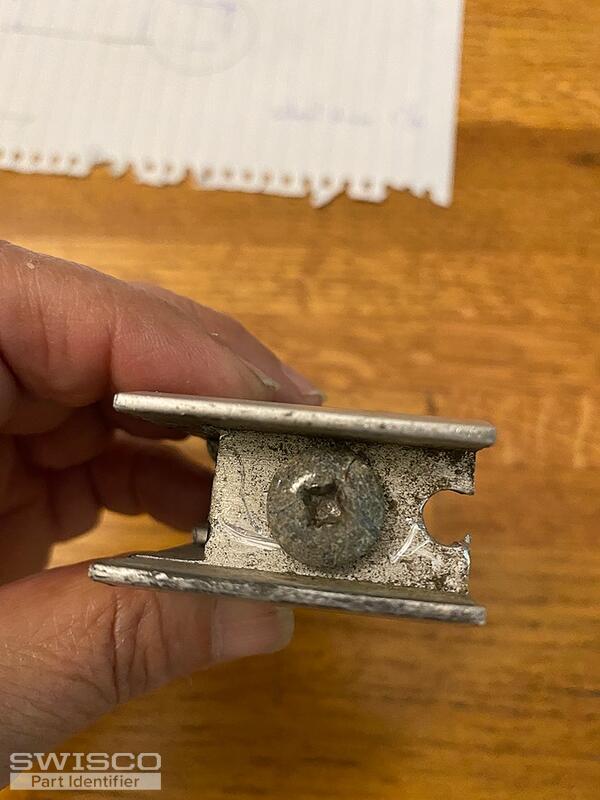

Thumbnail of the uploaded file named 8A7BC6CE-2CD0-43DD-A6DD-6C045F37DE17.jpeg

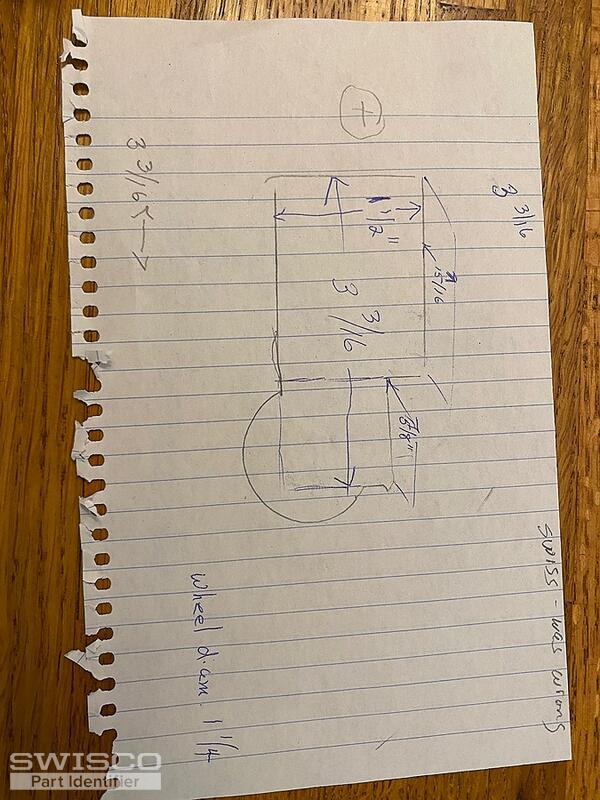

Thumbnail of the uploaded file named 0ECCE70D-35EF-4125-B1D6-20F97759A6A3.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

I'm afraid we don't have this exact roller but start by taking a look at our 81-036 and 81-071. Look over our dimensions and compare them with yours to see if one of them matches what you need.

A home owner from Hendersonville, NC says:
We tried the 071. It's close but won't work. -036 is not close. I have six doors that need roller replacement. Please help!
Profile picture of Emily
Emily from SWISCO responded:

I'm sorry to hear the 81-071 didn't work for you. I'm going to consult with one of our senior experts to see if we can find something better. We'll reach out as soon as more information is available.

Thank you!

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I have come across this Peachtree roller assembly in the past and what I did was to just replace the wheel with the 81-272 roller and axle kit. Take a look at this part along with the related video to see what you think.

A home owner from Hendersonville, NC says:

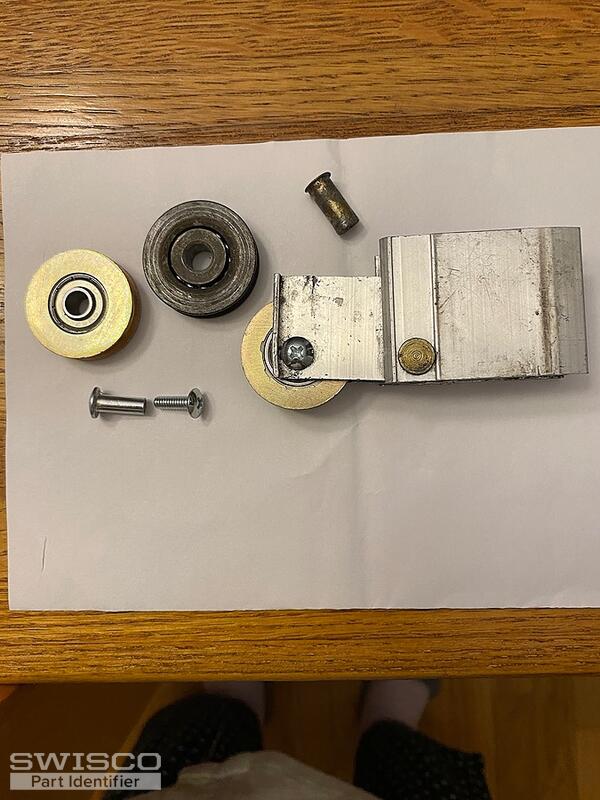

I bought the roller replacement kit. The wheel seems to fit nicely but the only fastener that worked is the silver two part one that screws. I'm wondering if it will stay tight or will loosen with use. Is there anyway to make sure it won't loosen?
Thumbnail of the uploaded file named 13004973-9CD3-4805-A101-1DCDBF5D6928.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

If you take a look at the video above on replacing the wheel, you will see two other repair methods. One would be to use the "split pin" which uses tension to hold the wheel in place. The other method would be to use the "rivet" which you will need to install and "hit" the hollow end to pin in place.

A home owner from Hendersonville, NC says:

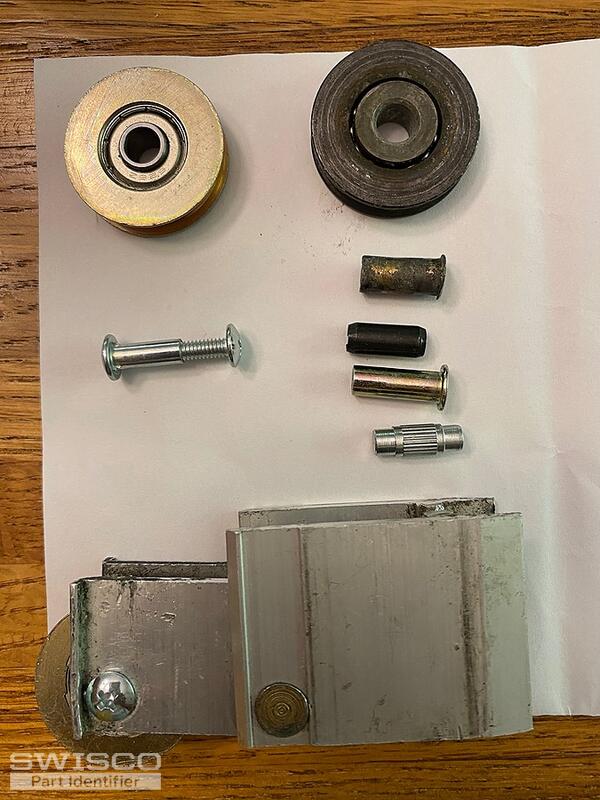

Those two rivets will not work. They are too narrow and not log enough. In the photo I am sending you can see the original rivet that I removed and the ones below that come in your kit. Only the two part screw is long enough to hold the wheel in the casing.
Thumbnail of the uploaded file named 6F0DAD14-8939-4508-BC7A-50708DBEDCDA.jpeg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

If you feel that the screw and through bolt is the best fix then I suggest using a product called "lock-tite" on the screw threads so that the screw will not let go in the roller housing.

A home owner from Hendersonville, NC says:

Took your expert advise and used the wheel replacement and put locktite on the screw threads. My door specialist did a great job on SIX sliding glass doors. They glide beautifully. I appreciate all the advice. You guys are top notch. Thanks!!!!

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

You're very welcome! Please let us know if we can be of further assistance and we'd be more than happy to help.
