Replacement fold down crank needed

Home Owner from Fargo, ND

Jun 20, 2026 1:19 am

I do not know the brand of window I have unfortunately. All I have is the picture of the fold-down crank that broke and I need to replace it. Can you PLEASE help?!!

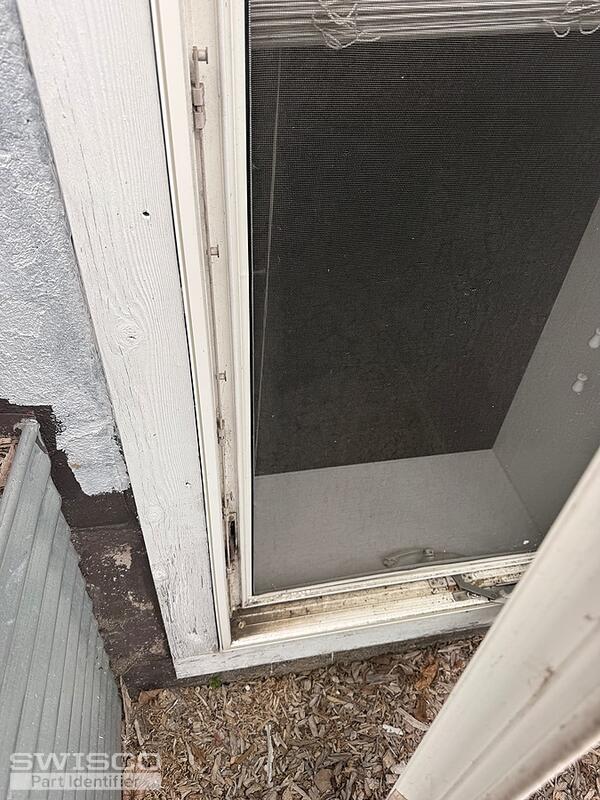

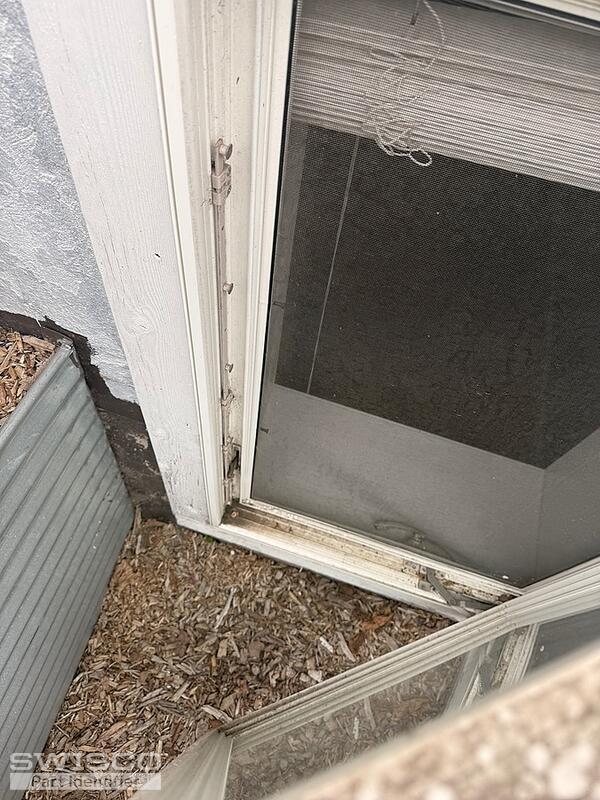

3 user uploaded images

4 Replies

Bob from SWISCO

Jun 28, 2026 10:20 pm

Hey there. It's tough to tell without knowing the diameter of the spline the handle fits onto. I suspect it might be something like the 39-232, which fits ROTO operators with an 11/32" diameter spline, but I'd review all the specs and compare to try and be sure.

Home Owner from Fargo, ND

Jun 28, 2026 11:57 pm

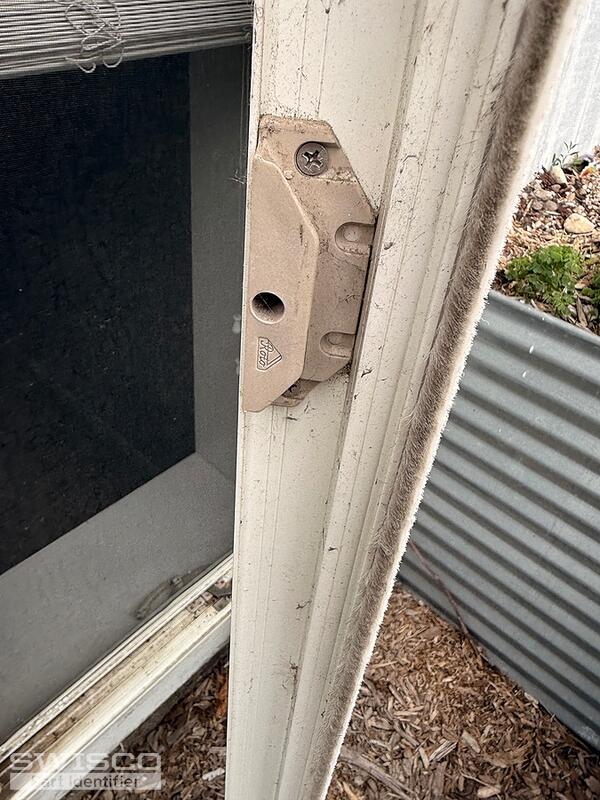

Please see attached photo. I found a little marking on the window that says "Roto" is that the name brand?

3 user uploaded images

Bob from SWISCO

Jun 29, 2026 3:50 pm

Yes, ROTO is the brand for the hardware in the window. ROTO uses many different operators in windows, which is why I wanted a clear photo of the operator to judge what crank handle would be best. It's tough to see, but I think you have 39-329 and 39-330 ROTO split-arm operators. In which case, the 39-232 Handle is indeed compatible with this setup.
