Replacement for ALCAN window 2 1/4" sash lock

A handy person from St. Peteresburg, FL says:
August 8, 2021

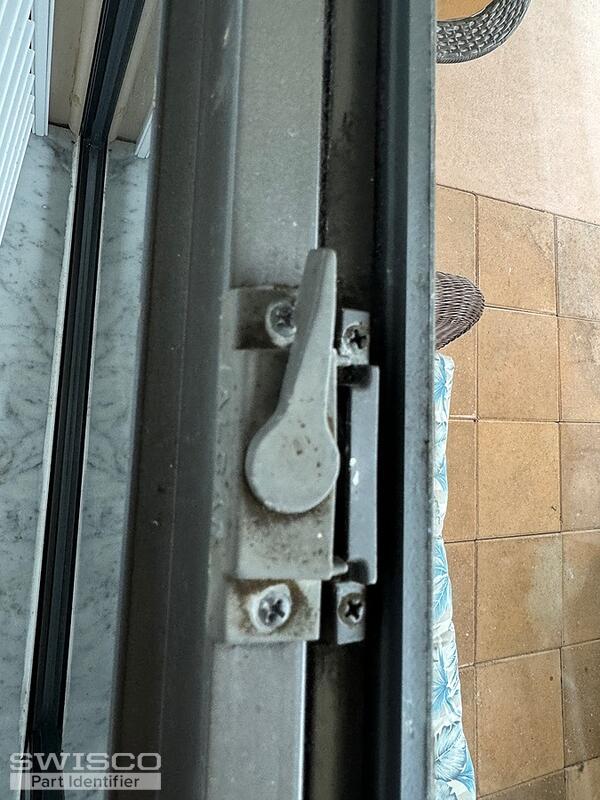

I was able to identify the snap-in glazing (55-092) for my old ALCAN windows, but I haven't been able to narrow down the replacement locking mechanism. Can you help?


Thumbnail of the uploaded file named IMG_9531.jpg
Thumbnail of the uploaded file named IMG_9530.jpg
Thumbnail of the uploaded file named IMG_9529.jpg
A handy person from St. Peteresburg, FL says:
August 8, 2021
Also, the locks do not have to be the same type, but I am looking to avoid drilling new holes.

Thank you!
Profile picture of Paul
Paul from SWISCO responded:
August 12, 2021

Hello,

Unfortunately, your lock was made in New York by Allen Stevens, which closed down in the late 90's. We have suggested the 90-180 lock and 90-183 keeper as a replacement. It won't have the aligners like the old lock but that shouldn't matter since your windows should be fully settled by now. Take a look and see what you think.
Snap-In Glazing 6' Length
Snap-In Glazing 6' Length
55-092
$10.47
Window Sash Lock, 2-1/4"
Window Sash Lock, 2-1/4"
90-180
$2.97
Sash Lock Keeper, 2-1/4"
Sash Lock Keeper, 2-1/4"
90-183
$0.97
