Replacement for Milgard Balance

Question

Hi there!

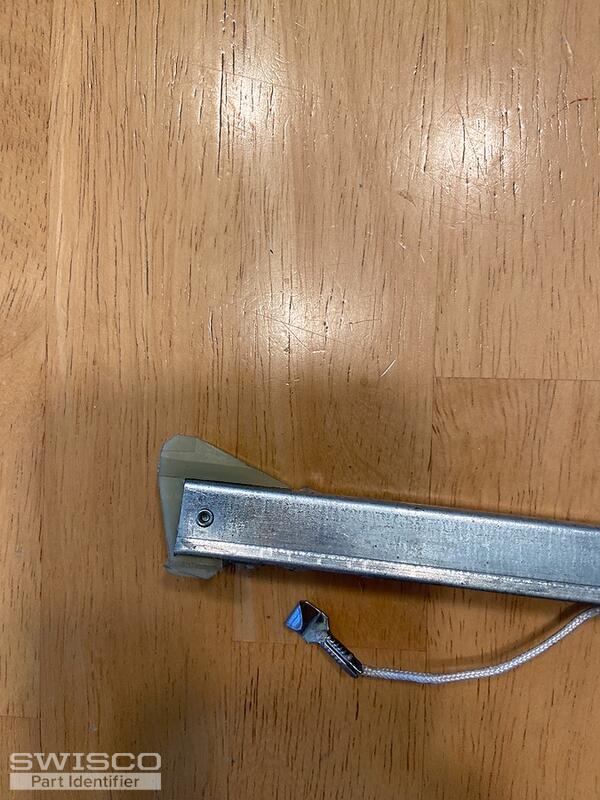

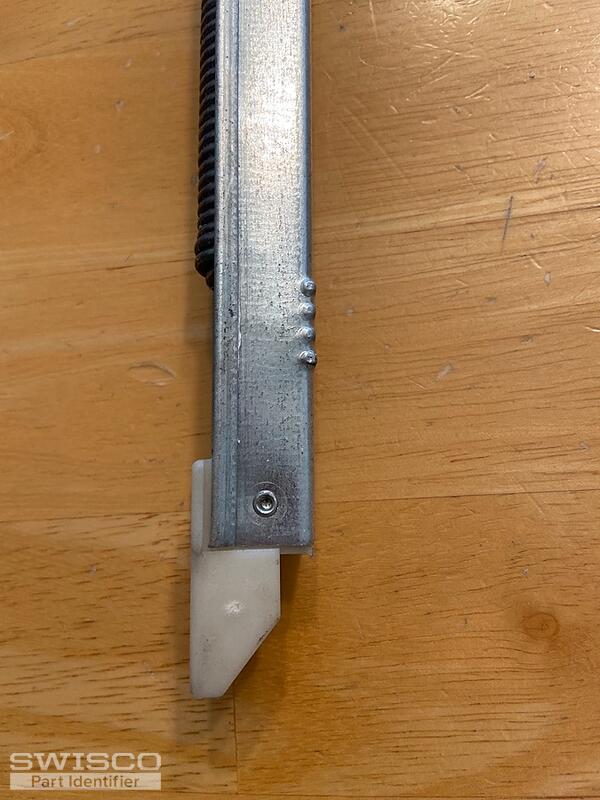

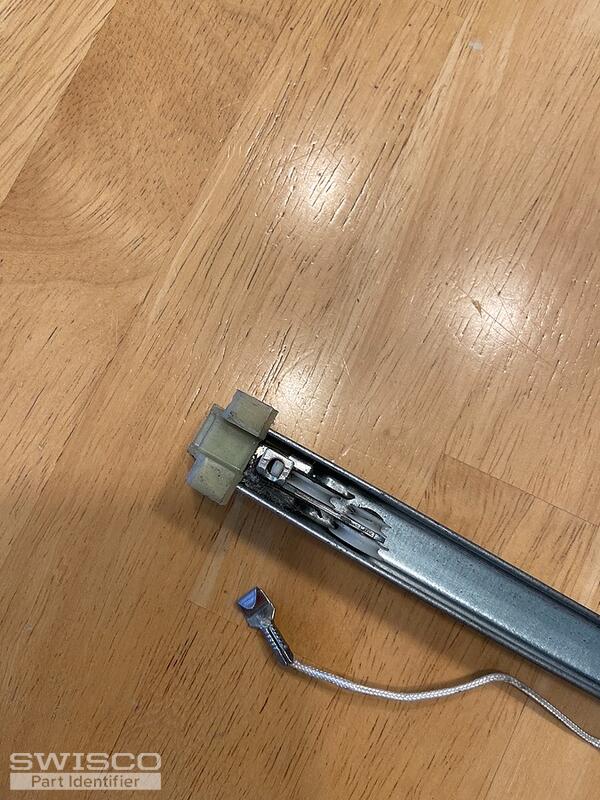

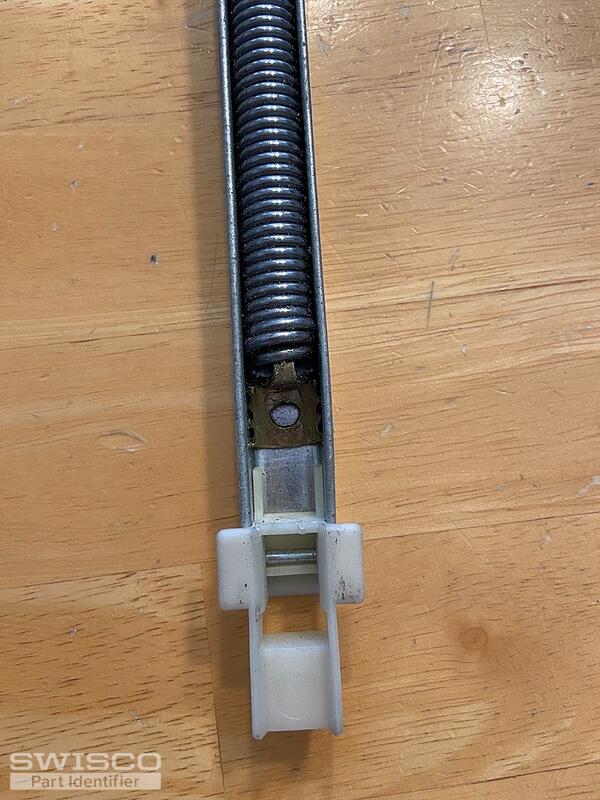

I'm in need of two new balance pieces for Milgard up sliding window. Measurements are 33 in from end of metal to end of metal.

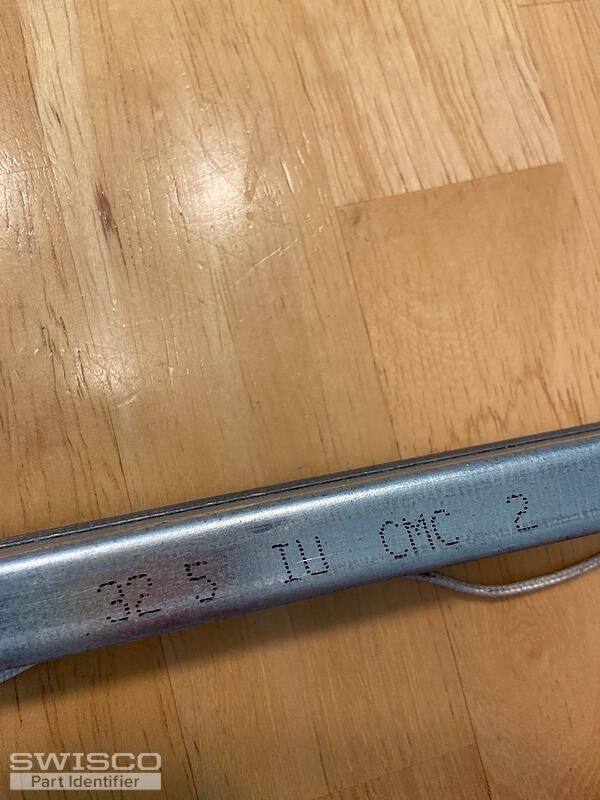

The only marking is '32 5 IU CMC 2'

Emily · Accepted Answer

Hello!

Your balance is a match for either our S380-33 or S385-33 channel balance. These two parts may look identical at first glance but each has a different shoe depth. The Series 380 comes with a 1" deep shoe, while the Series 385 comes with a 1-3/32" shoe. Measure as shown in the diagram below to determine the best match. You will also need the 3250 strength option, based on your 32 5 stamp.

Comparison of the S378, S380 and S385 balance shoes.
