Need 4 stops
4 Shoes (width= 1-1/4) Thick(13/16) - Ht( 1-1/2)
4 Pegs/posts

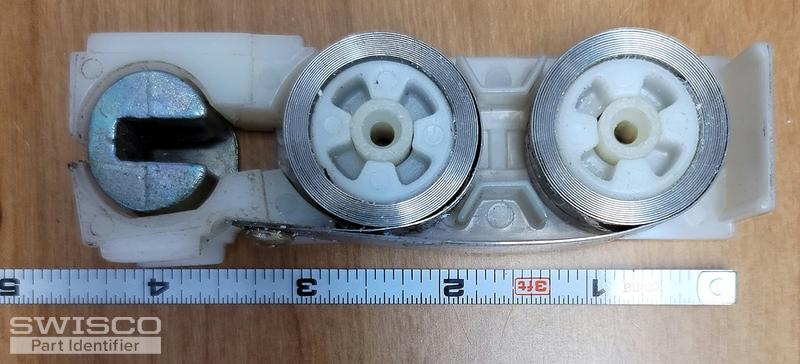

Shoe has a Number 1 stamped on it
Pivot is 7/8"(oval widest) x 3/4"
Replacement for Shoe / Sash post / Sash stop
Handy Person from Myrtle Beach SC
Dec 2, 2020 3:51 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Dec 7, 2020 9:12 am
Hello, thank you for writing in. For your pivot shoe, see our 15-192. The replacement part for your pivot bar would be our 26-336. However, this pivot bar is unfortunately not compatible with the 15-192 pivot shoe. However, there's two things you can do: first, you can simply swap the metal cam on your old pivot shoe with the one in the new shoe to ensure pivot bar compatibility. Or, you can shave down the 'collar' of the new pivot bar so that it fits the 15-192. Let me know if you have further questions.
