Replacement for WIPI sliding glass door handle

A handy person from Sarasota FL says:
March 15, 2021
I'm looking for replacement handles that don't stick out as far into the room as my WIPI handles do, these come out 2.75" from the frame. The 82-069 looks like it would fit (3-15/16" install holes) but I don't see overall dimensions listed for height and handle depth. Thanks
Thumbnail of the uploaded file named A4D60EEB-90EE-48C2-A069-32AE0EB856E1.jpeg
Thumbnail of the uploaded file named 7955B5A7-8A9C-42D6-8E4D-1AF7167818E9.jpeg
Thumbnail of the uploaded file named 4DBAA284-1869-4D00-8BC6-EFC62A4C666F.jpeg

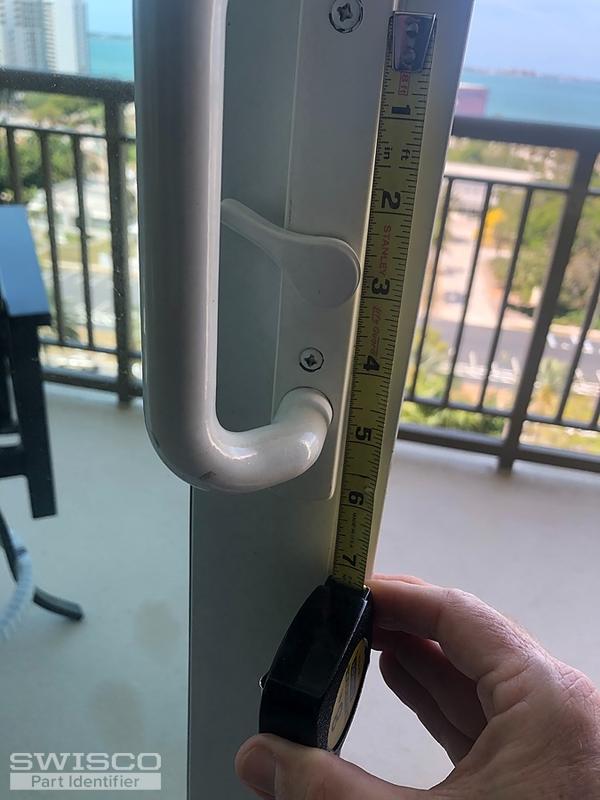

Thumbnail of the uploaded file named 36D3DCFF-FC04-42B8-82C1-89B5AA05E2DE.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 17, 2021

Hello,

If you have 3-15/16" installation holes, I agree that the 82-069 should work for you, though you may also want to consider the newer style 82-030. Both of these sets have handles that project roughly 1-1/4" from the base.

The overall length doesn't matter as long as the installation holes match up since you have the entire height of the door to compensate for any difference.
A handy person from Sarasota FL says:
March 17, 2021
Follow up question: I'd like to use my existing WIPI mortise lock, can I use it with the 82-030? That would simplify my job!
Profile picture of Casey
Casey from SWISCO responded:
March 17, 2021

Your mortise lock looks like a match to our 82-218, which is compatible with the 82-030 handle set. Please let us know if you have any other questions.
Mortise Lock, Round Face, 3-11/16"
Mortise Lock, Round Face, 3-11/16"
82-218
$11.70
Sliding Patio Door Handle Set, 3-15/16"
Sliding Patio Door Handle Set, 3-15/16"
82-030
$29.95
