Replacement for single roller A-S 8097

Start a new Discussion

Home Owner from Tampa Bay, Florida USA

Apr 30, 2018 2:46 pm

I need to find replacements for these roller. Any help would be appreciated.

Thanks

1 user uploaded image

10 Replies

Paul from SWISCO

May 4, 2018 11:57 am

Thanks for the photo. Unfortunately, we could not locate a replacement match with the stamping you gave us. I believe we can still help you with this. Start with taking a close at the measurements of our 81-090 sliding door roller. You want to pay close attention to the thickness, height of the housing, the diameter of the wheels, and the hole pattern on the back.

Handy Person from Tampa

Apr 16, 2020 5:12 pm

I have a need for this exact model A-S 8097 that this home owner pictured. The measurements for your 81-090 are close but not exact. Is that that closest I'll get and does the differences matter that much? Mine is 2 1/32" long 1 1/8" high and 5/8" wide and the wheel diameter is 1 1/4"

Thanks in advance as this could save me several hundreds to a thousand dollars.

Tom from SWISCO

Apr 17, 2020 11:48 am

Thank you for providing those dimensions! That is a huge help. Those measurements do render our 81-090 incompatible, unfortunately.

Our 81-011 is closer, but still different. The wheel is smaller at 1", but the housing is taller at 1-1/16" and a little narrower at 9/16". Those are all important dimensions. The length doesn't matter so much, so you can ignore that. The wheel diameter also isn't quite as critical, since these rollers can be adjusted to make up the difference.

However, the width and height of the housing are vital. I would triple check your dimensions to be sure.

Handy Person from Tampa

Apr 17, 2020 1:16 pm

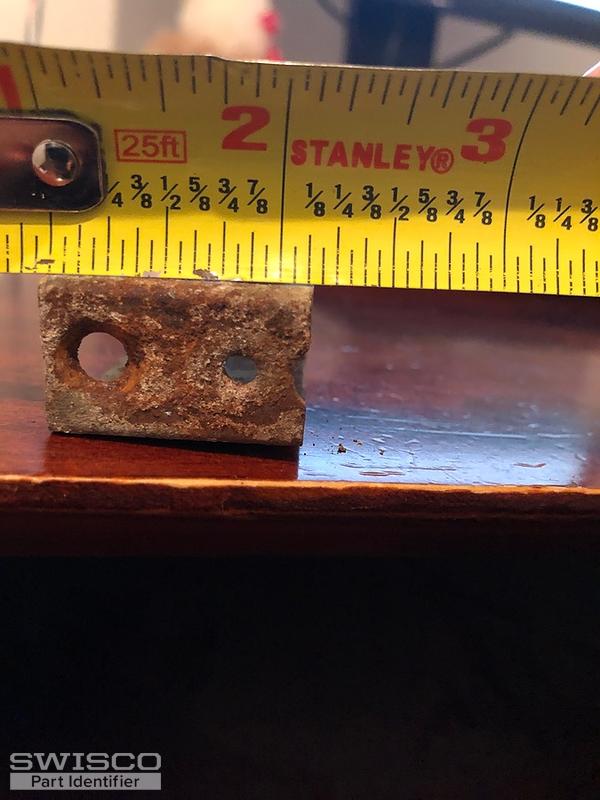

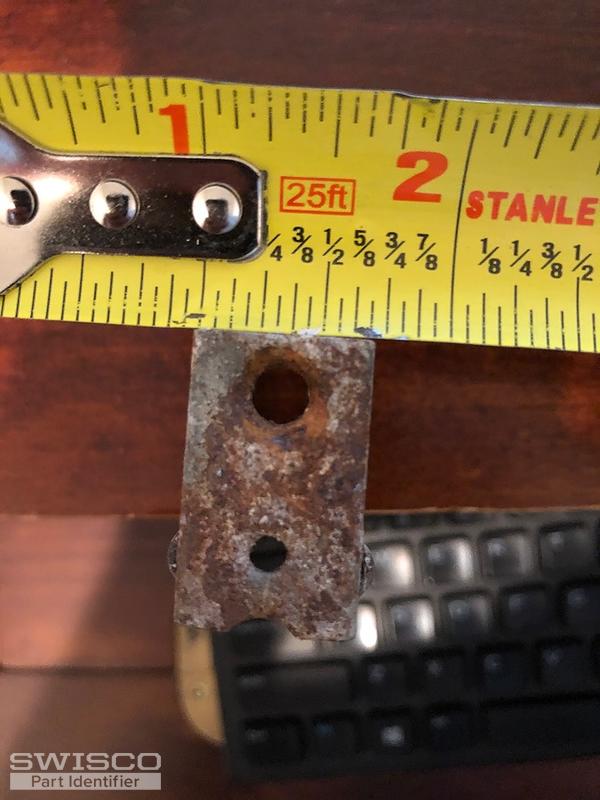

I've added pictures hopefully this helps narrow it down. I have six sets that I have to replace and I want to make sure I get it right. Thanks for the prompt reply.

2 user uploaded images

Dave Sr. from SWISCO

Apr 21, 2020 12:39 pm

I actually went through my old Allen Stevens catalogs and could not come up with that roller number. That said, take a look at the 81-081 roller to see if this roller matches up to yours. I believe this could be the one you are looking for,

Dave Sr. from SWISCO

Apr 21, 2020 1:31 pm

Thank you very much! Please do.

Handy Person from Tampa

Apr 21, 2020 1:53 pm

Thanks Dave for your response. I have ordered the rollers you suggested as they appear to be the closest to mine. I will let you know how it turns out. Thanks again

Handy Person from Tampa

Apr 26, 2020 9:39 pm

Dave,

I wanted to let you know that 81-081 roller was a perfect replacement for the AS-8097 Allen Smith roller. Almost identical. The only issue I ran into was that the screws holding the frame in place were rusted solid. But your product was perfect except for one of the rollers was missing in the order. I've emailed customer to get this resolved. Thanks again for all of your help.

Dave Sr. from SWISCO

Apr 27, 2020 8:06 am

That's great news. Thanks for the update and, of course, for ordering from us to begin with.

If you ever have any questions in the future, feel free to reach out.
