Replacement for sweep lock and keeper

Home Owner from 18977
Dec 5, 2023 6:45 pm
windows no longer latch. May be damaged lock and keeper.

No brand on windows. Lock has 9203 R2 and LF5 9207 marked on it.

Only a 4 on keeper.

Keeper holes are 7/16" on center.

Lock holes are 2 1/16" on center.

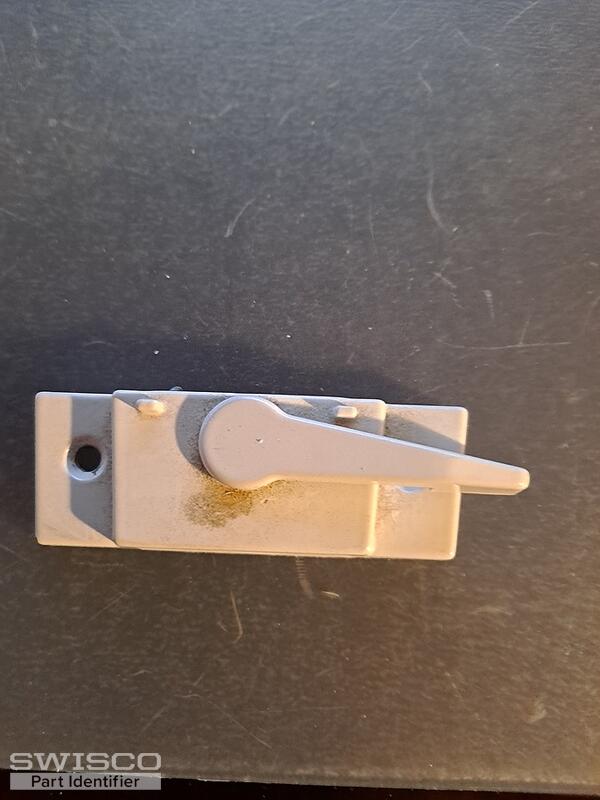

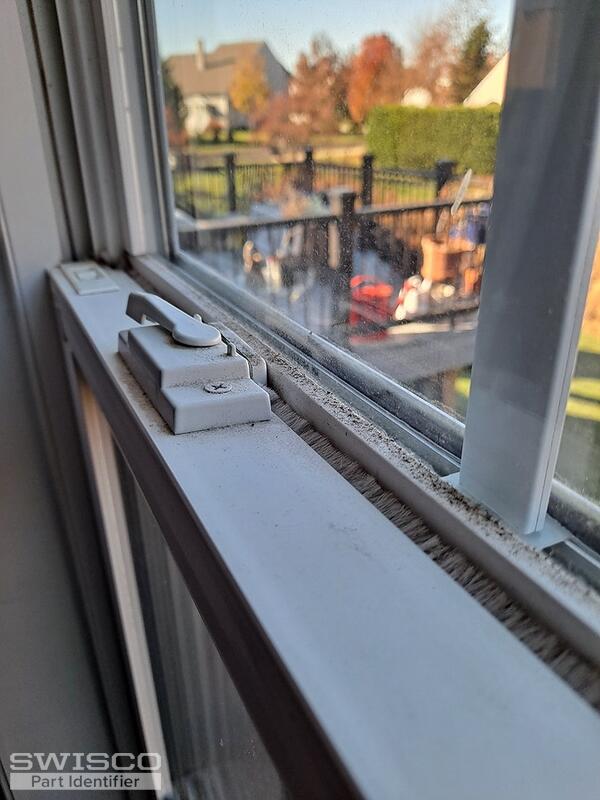

Window 2 Window 3 Window 4 Window 6 Window 1
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Dec 7, 2023 3:34 pm
SWISCO
EXPERT

Hello,

We do not carry an exact replacement for your keeper but the 90-257 might work for your repair. You'll need to compare the 13/16" distance from the holes to the bottom of the keeper opening to confirm.

Dimensions for 90-257
Dimensions for 90-257


Profile view of 90-257
Profile view of 90-257

As for the lock,  see the 90-161 depending on how the 7/16" installation hole backset compares to yours. If the dimensions match yours, you should be able to use this lock and keeper for your repair. Thanks for posting!

Detail of 90-161
Detail of 90-161

+ Add a Comment
Products and resources found in this discussion
Window Lock & Keeper, 2-1/16"
Window Lock & Keeper, 2-1/16"
90-161
$8.92
Face Mount Keeper, 7/16"
Face Mount Keeper, 7/16"
90-257
$1.93
