Replacement hinges

Question

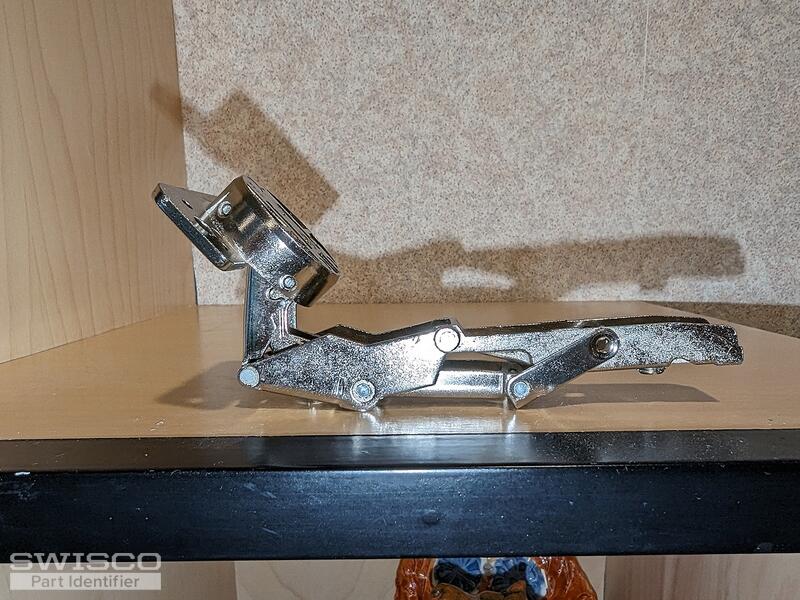

This is a broken hinge on a framed cabinet with 4 hinges. These doors get heavy used so need something stronger than a compact hinge. Even though a framed cabinet you can see a block under the plate that allows a larger 3-screw adapter plate. Hinge opens about 120°. I would like a soft-close hinge like Blum Blumotion. Only ID #'s on hinge are shown on bottom view.

The cup depth: 7/16". Cup diameter: 35mm. Distance from cup to edge of door: 5mm. Distance between screw holes on hinge: 45mm.

Overlay: 1/2". The screw holes in frame are drilled in the center of the 3/4" frame.

For the screws go into old holes, what is the best way to secure them...larger screws, wooden hole plugs, or plastic screw-in plugs?

Also, do I need to replace all 4 hinges.

Thanks.

Richard

Casey · Accepted Answer

Hello,

Unfortunately, we do not carry an exact replacement for the hinge assembly shown in your photos. We've related a few similar options on this page for you to review but I can't guarantee that one of them would work for your application and, if so, modifications may be necessary. I'm sorry that we won't be able to offer a closer match at this time.
