I have been trying to find replacement hinges for a kitchen cabinet for a couple weeks without much success. It's a 36" wide 40" tall wall-mounted cabinet with double doors. They are edge-mounted, long-arm, European style concealed hinges, self-closing, and soft-close.
Here are the best hinge measurements I have been able to make without removing a hinge:
1" overlay
Door cup size appears to be 1-3/8" diameter (hard to confirm without removing hinge)
2-1/16" spacing between screws attached to door
1-1/4" spacing between screws attached to frame
Each door is 17-1/2" wide. Cabinet opening is 33-1/4" wide.
Do you sell hinges that can replace these? I need to replace at least 3 hinges, as the left door is no longer self-closing properly. I have not been able to find identical hinges anywhere, and I have no idea what kind of different hinges would work.

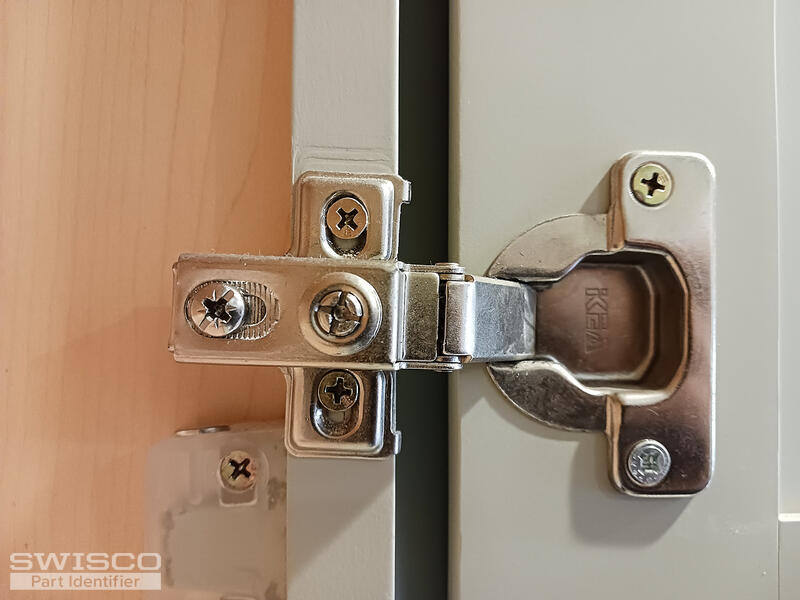

Photo of hinge is attached.
-Kevin
