Replacement latch : SWISCO.com

Handy Person from Wausau WI

Sep 8, 2025 10:34 am

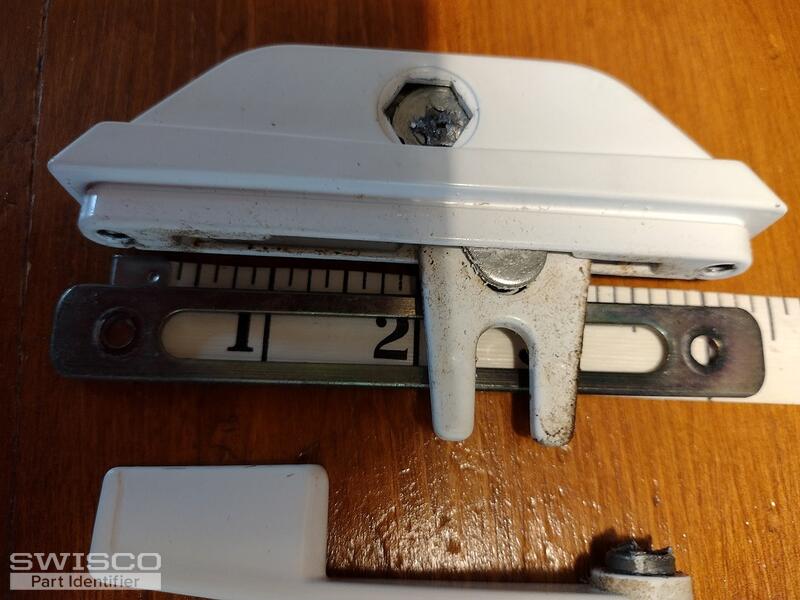

Compareing to 38-139; 1-3/8" instead of 1-5/8" 4-1/2" instead of 4-5/8" bolt holes are 3-13/16" center to center. This is for the right side casement window. Larry

4 user uploaded images

4 Replies

Handy Person from Wausau WI

Sep 9, 2025 12:20 pm

I submitted a request yesterday and was told you would contact me later that day. Other than getting confirmation that you received my email I have had no one contact me. I would really like to order this part immediately.

Still waiting for information to place order Larry

Casey from SWISCO

Sep 15, 2025 1:20 pm

Hello,

We appreciate your patience during our busy season. Our closest options to the dimensions you provided would be the 39-095, but the height and fork projection differ from yours. I'm going to have our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available. Thank you!

Alternate view of 38-095

Dave Sr. from SWISCO

Sep 17, 2025 1:52 pm

The old-style Roto lock shown in your photos seems to match up to the newer style 38-139 you picked out. If you take a look at the 38-158 back plate for this lock, it is listed at 3-13/16". As for the length of the fork, it appears to match up to your part. You should be fine using the 38-139, along with the back plate 38-158. Please note that you will need to use the 33-096 self-tapping screws since the new handle mounting screw holes are not threaded. Take a look at the suggested parts, along with the related videos.

Alternate image for 38-139

Alternate view of 38-139

Alternate image for 38-158

Alternate view of 38-158
