Replacement latch, Viking Window

A handy person from Salinas, ca says:
August 11, 2021
I need a Viking replacement latch. Thanks, Alecia

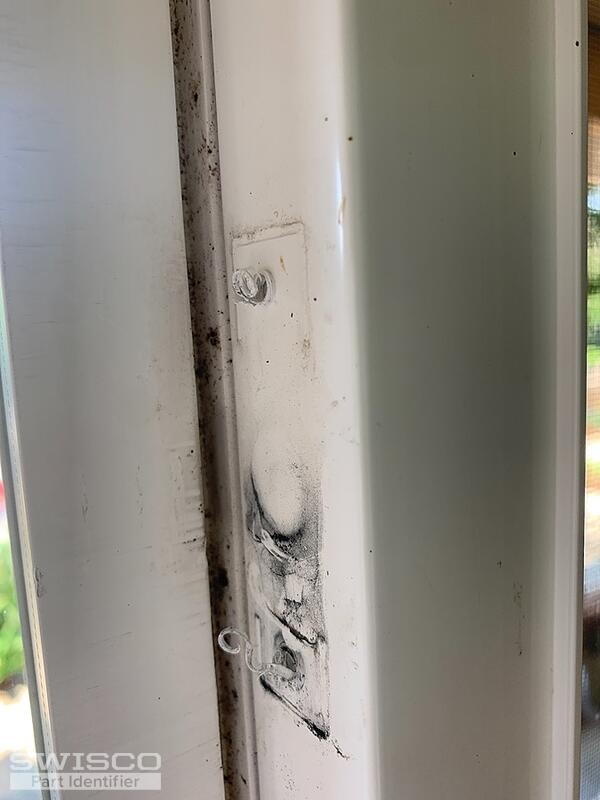

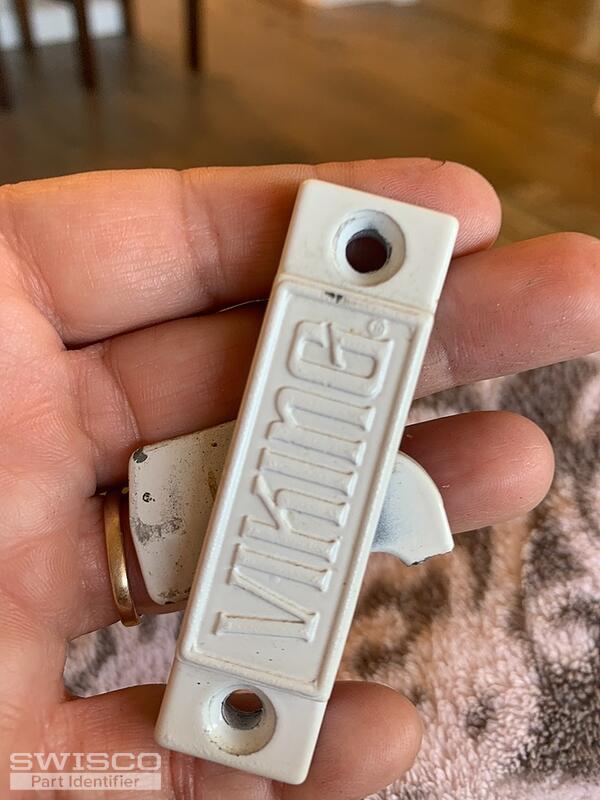

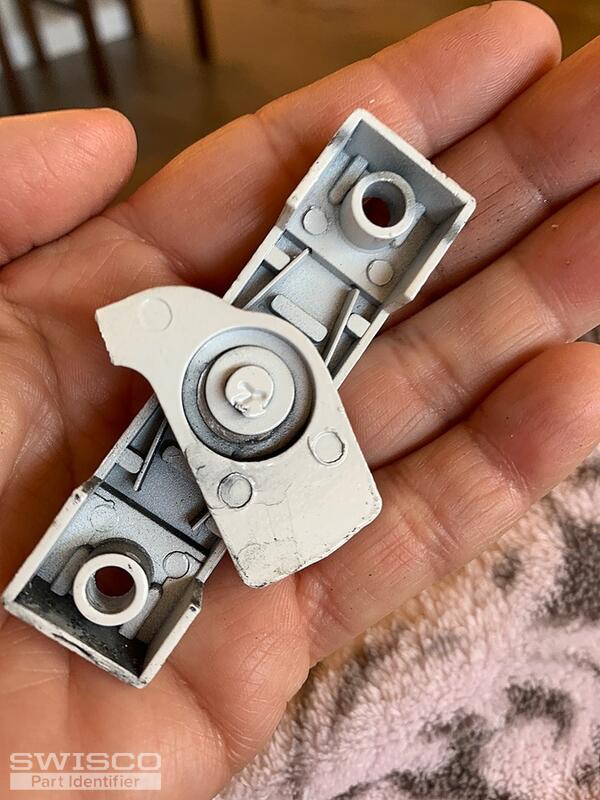

Thumbnail of the uploaded file named VIKING
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 17, 2021

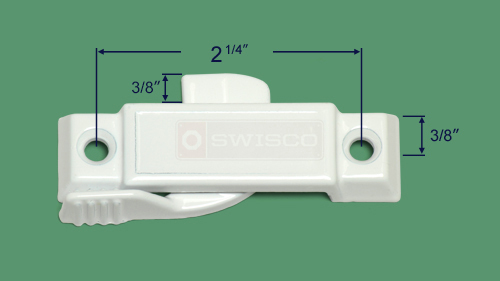

Hello, Alecia. Your lock is similar to our 90-005 at first glance, but I'm concerned about the size of the "sweep" itself. Yours looks a lot longer than ours, which only sticks out 3/8" from the housing, as indicated in the diagram below. Can you tell me if yours is also at 3/8"? If not, what is it?

swisco.com

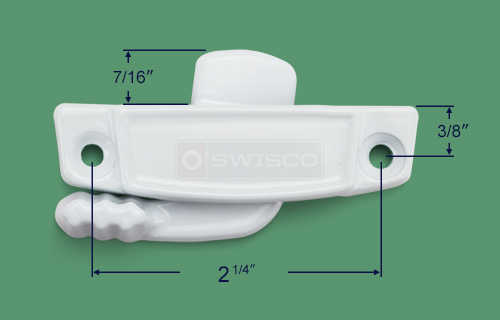

Another option is our 90-072. The design is a little different but it installs the same way as the 90-005, and in most aspects it is an identical replacement. The only exception is the sweep, which sticks out 7/16" in this case. Would this be closer to your original? Refer to the dimensions below.
swisco.com
Window Sash Lock, 2-1/4"
Window Sash Lock, 2-1/4"
90-005
$2.05
Sweep Lock, 2-1/4"
Sweep Lock, 2-1/4"
90-072
$2.07
