Replacement lever lock awning window operator and bracket

Home Owner from Honolulu HI

Oct 30, 2024 1:24 am

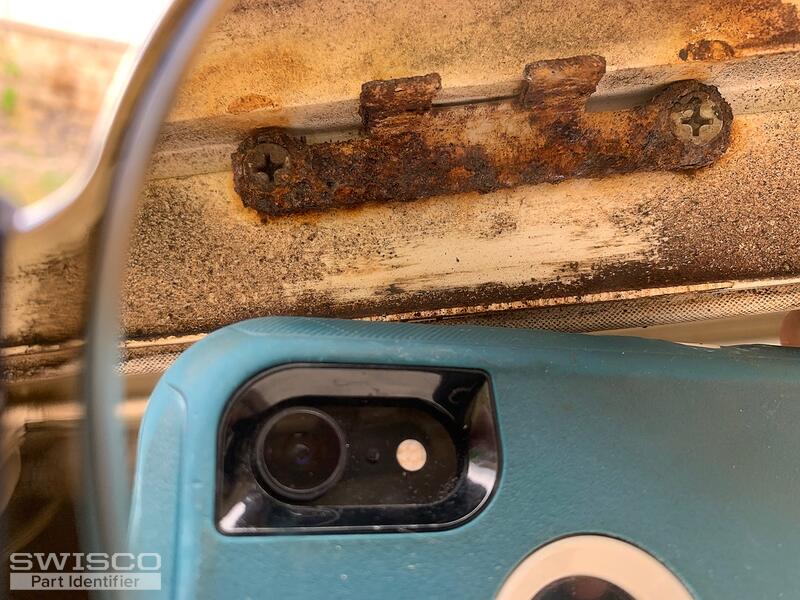

Looking for replacement parts for awning window and if possible side sliding mechanism.

5 user uploaded images

6 Replies

+ Add a Comment

Home Owner from Honolulu HI

Nov 1, 2024 1:33 pm

I believe the awning window operator that fits my particular window is 39-037 with window sash bracket 75-087 based on the specs of these products. Comments?

Casey from SWISCO

Nov 1, 2024 2:51 pm

EXPERT

Hello,

I agree that your operator resembles the 39-037 as long as the measurements below match your assembly. We also offer the 39-177 bracket that resembles your part. Look them over and see if you agree. Thanks for posting!

Dimensions for 39-037

Dimensions for 39-177

Home Owner from Honolulu HI

Nov 1, 2024 10:31 pm

Thank you for your help in identifying the proper operator (39-037) and bracket (39-177) for my window. I will be ordering these items from you.

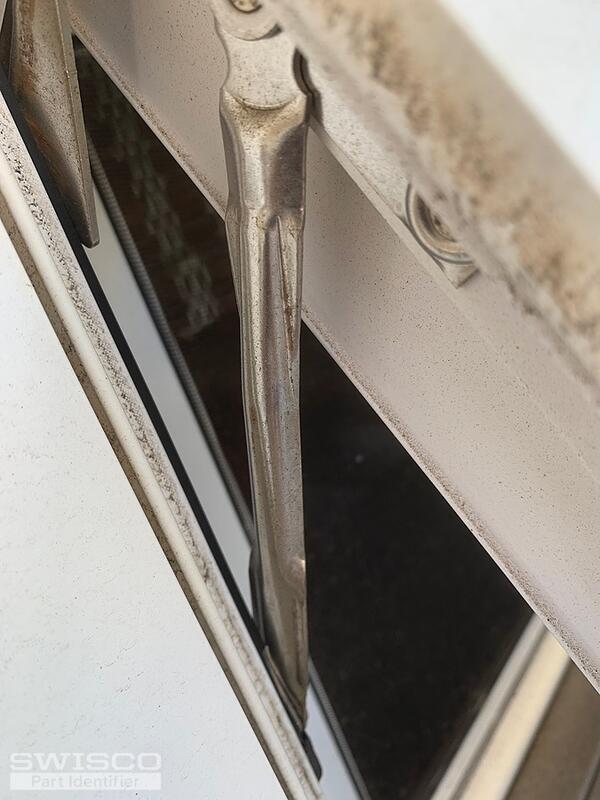

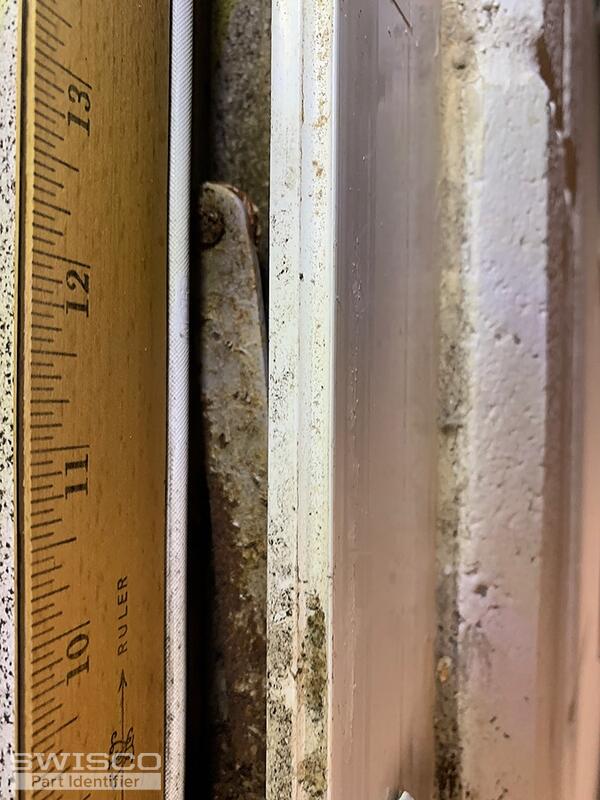

I also need your help in identifying the proper replacement support arm (right side as you look out of window) that has broken off from the same window . The arm measures about 6 1/2" as shown in the photos. Can you help me. Thank you.

2 user uploaded images

Casey from SWISCO

Nov 4, 2024 9:51 am

EXPERT

It looks like you may be showing part of the hinge for your awning window. We don't have an exact match but if you could show us the other part of the hinge that attaches to the other side of the window frame, as well as confirm the length of that portion, we'd be happy to research your replacement options.

Home Owner from Honolulu HI

Nov 7, 2024 7:59 pm

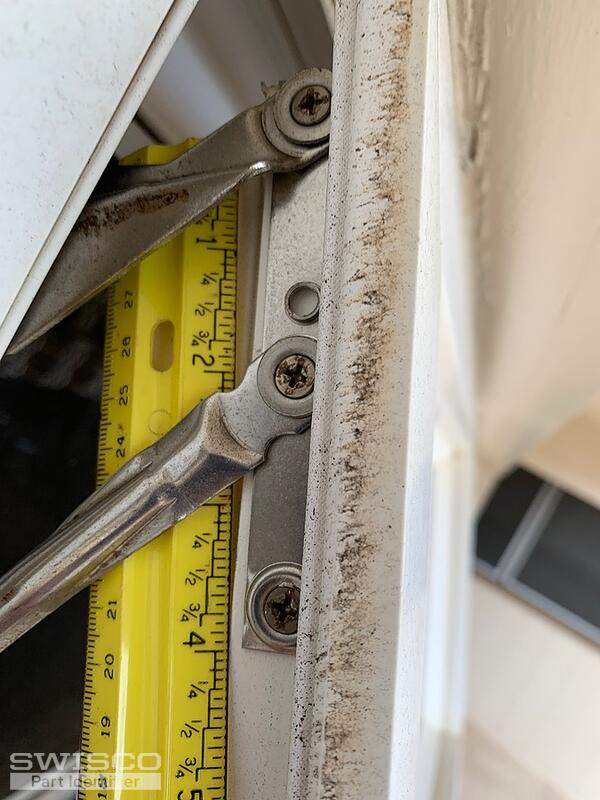

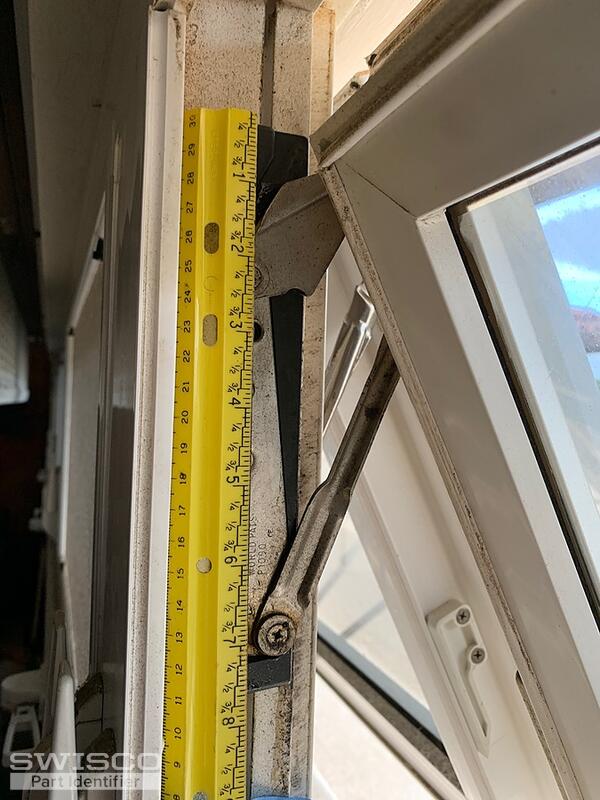

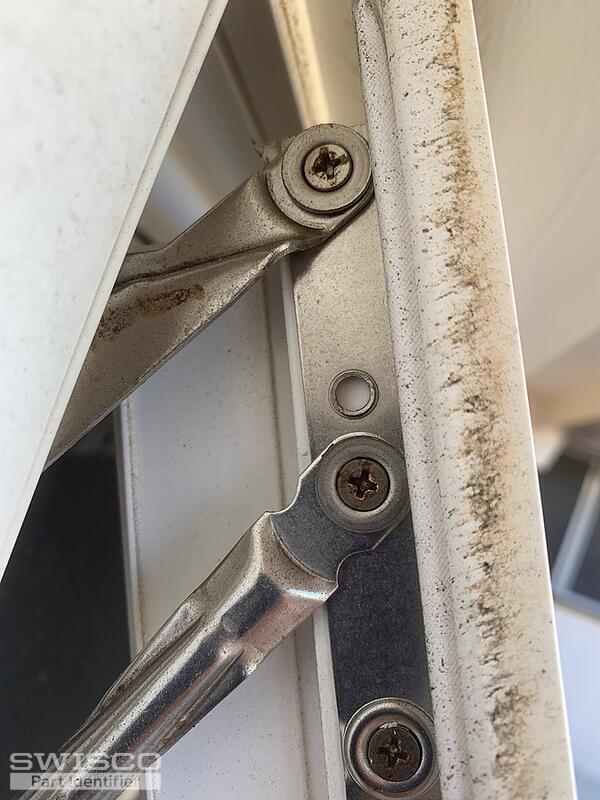

Photos of hinge on my awning window. The part I'm looking to replace is the support arm which measures about 6 1/2" in length on the right side of the window. Thank you.

2 user uploaded images

Casey from SWISCO

Nov 8, 2024 8:21 am

EXPERT

Thanks for getting back to us. Though we do not carry exact replacements for your hinges, we do carry the 10" long 36-021HD four-bar hinge and 36-004-10 2-bar hinge. We can't guarantee that one of these hinges would work for your application but these would be our best options at this time. Look them over and see what you think.
