Replacement needed for jalousie window

Question

The housing part of this is 4 7/16" vertically and 2" horizontally and 3/4" thick
The mounting screws at the top are10/16" apart from center to center
The mounting screws at the bottom are
1 1/2 " apart

Below are pictures of it from many angles including one where it was still mounted on the jalousie window. We live in Cherry Hill and if needed could drop this broken one off to identify size or any other information you would need. Thank you for your time.

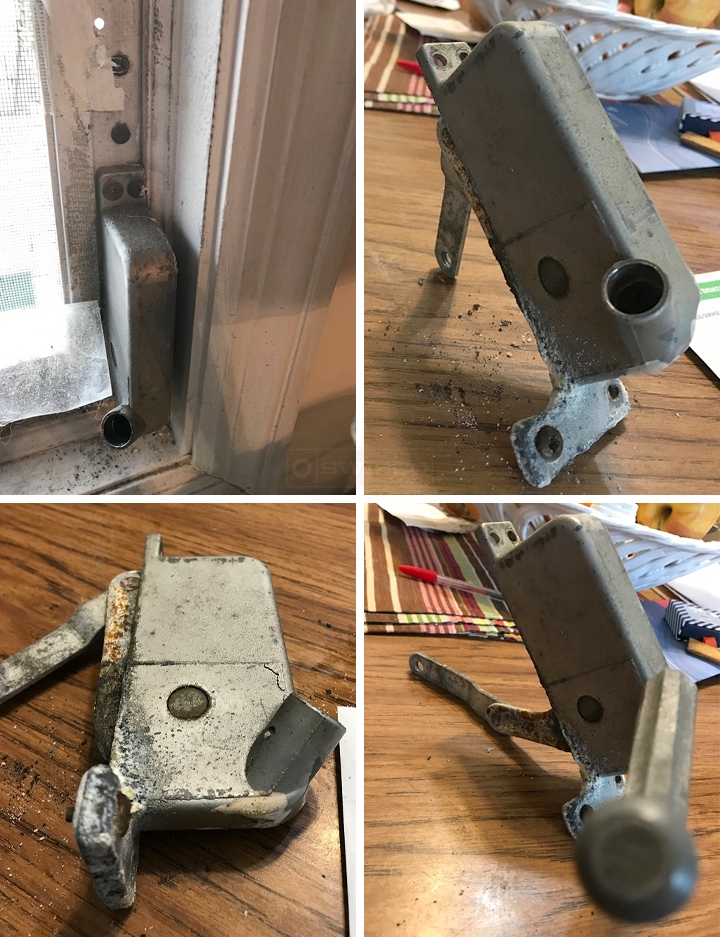

User submitted photos of a window operator.

Dave Sr. · Accepted Answer

Look at the Pan Am/Daryl operator, our 39-017. This is the closest we have to the one you show in your photos. I has an offset gear arm, as well as a threaded hole at the end of the link arm which takes the 33-067 shoulder screw and 33-207 washer. The only difference I can see is that your two bottom mounting holes are 1-1/2" apart, while they are are 1-5/16" apart on our 39-017. Take a look and see if you can use this as a replacement for you window regardless. Your particular style operator might not be available anymore.
