Replacement of Truth Maxim Dual Operator .... detach-clips needed?

A handy person from USA says:

September 19, 2023

Hello,
( I ordered a replacement for my awning operator last week....installation was a breeze and it works great....thanks! I want to tackle a couple other windows now.....)

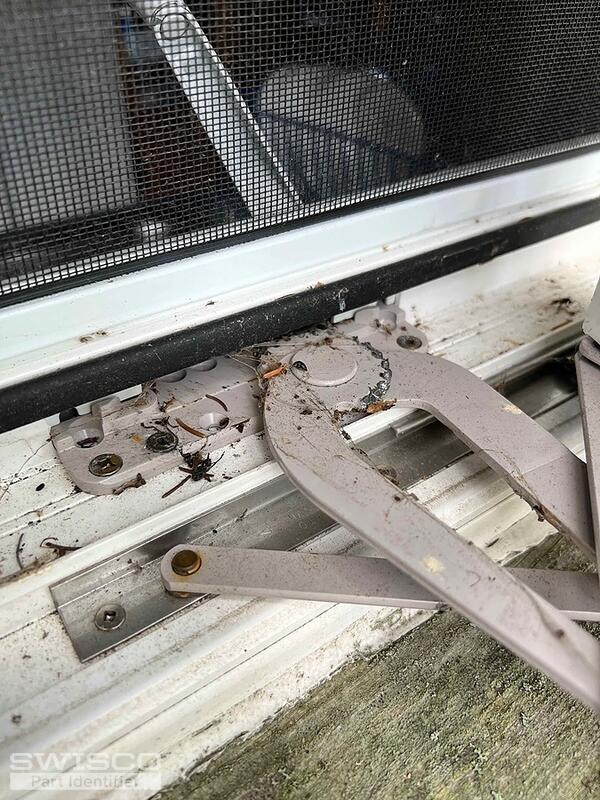

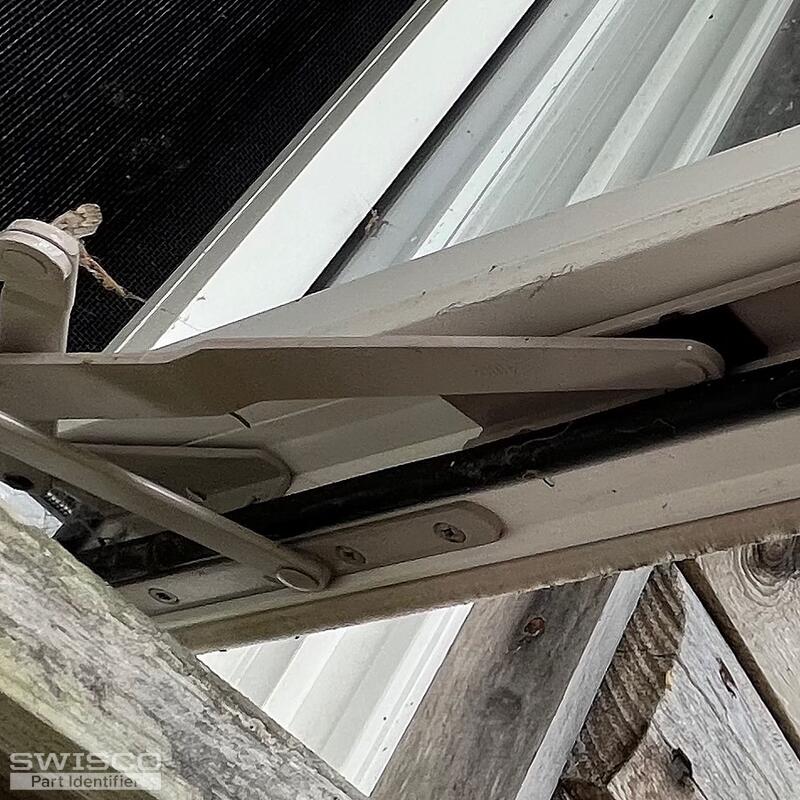

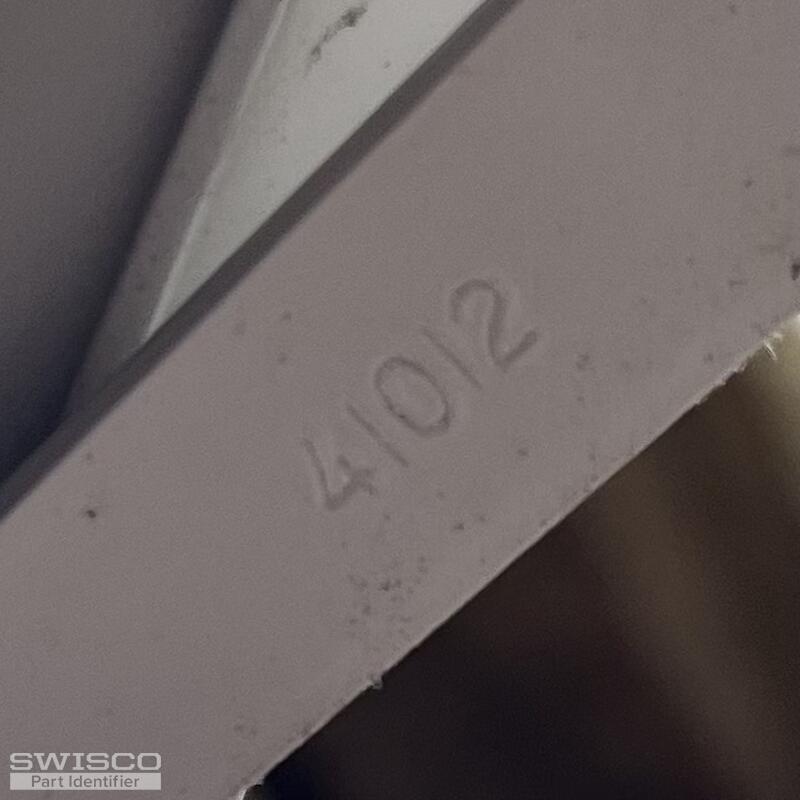

I have a Truth Maxim Dual Arm operator, stamped "Truth" and "41012" on the arm identifies it.
This is discontinued, but you recommend Encore 39-253RB to replace it.

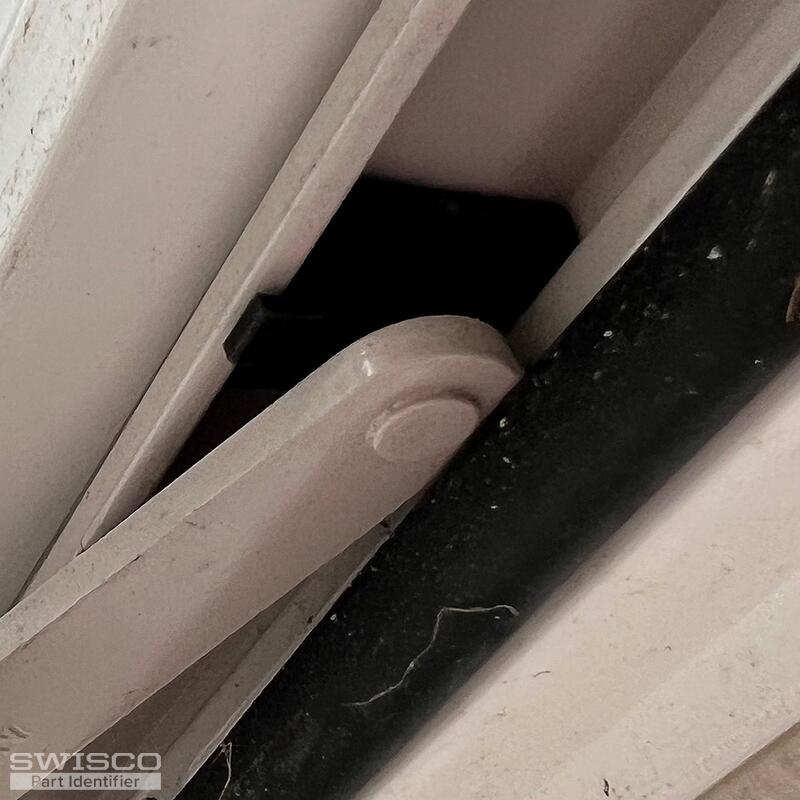

The operator we have does not use "detach clips". It is not clear to me if there is some kind of clip or filler/epoxy that is used to keep the arms from sliding off the snap-joint. If I order a 39-253RB will I need to also order detach-clips to keep the arms attached? Or will the arms snap onto the studs without needing to add detach-clips?

Thanks!

Thumbnail of the uploaded file named IMG_8935.jpg

Thumbnail of the uploaded file named IMG_8934.jpg

Thumbnail of the uploaded file named IMG_8933.jpg

Thumbnail of the uploaded file named IMG_8932.jpg

Emily from SWISCO responded:

September 20, 2023

Hi there!

Our 39-253RB doesn't use detach clips either so I'm a bit confused. Our operator looks like a great match to me. I also don't see any filter epoxy shown here. Are we missing something?

A handy person from USA says:

September 20, 2023

I am uncertain on how the replacement arm will stay attached. If the arm snaps into place without any additional suppor: that's what I need to know. Thanks!

Emily from SWISCO responded:

September 22, 2023

The 39-253LB and 39-253RB operators use the 39-545 and 39-546 brackets. The link arm simply snaps onto the snap ring and doesn't need additional support to keep it in place.

Encore Dual Arm Operator, Sill Mount

39-253RB

$31.70

Truth Snap-Stud Bracket

39-545

$3.22

Encore Dual Arm Operator, Sill Mount

39-253LB

$31.70

Truth Snap-Stud Bracket

39-546

$3.22
