Home Owner from Southampton Pa

May 16, 2021 6:03 pm

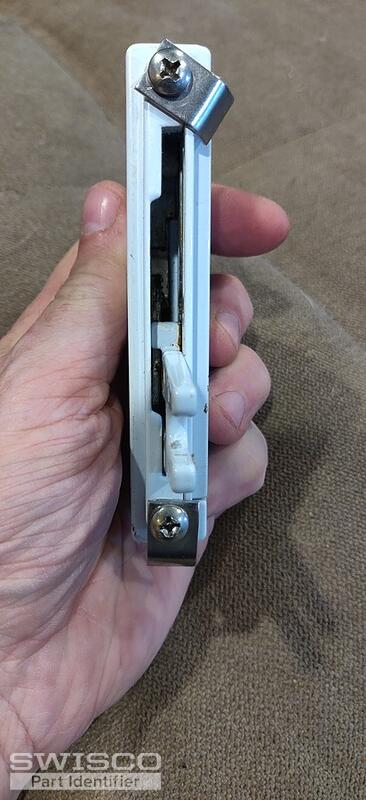

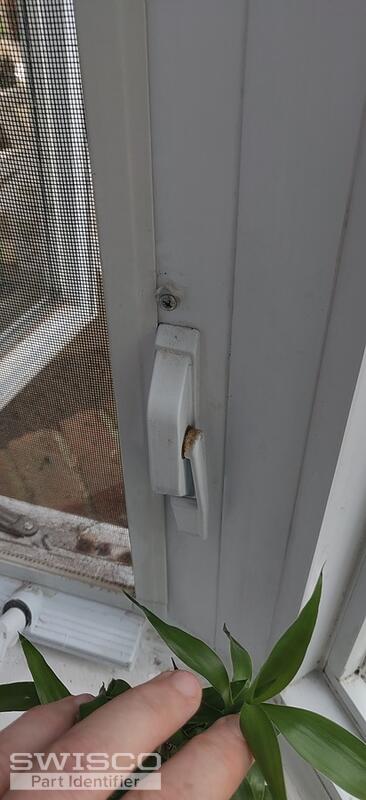

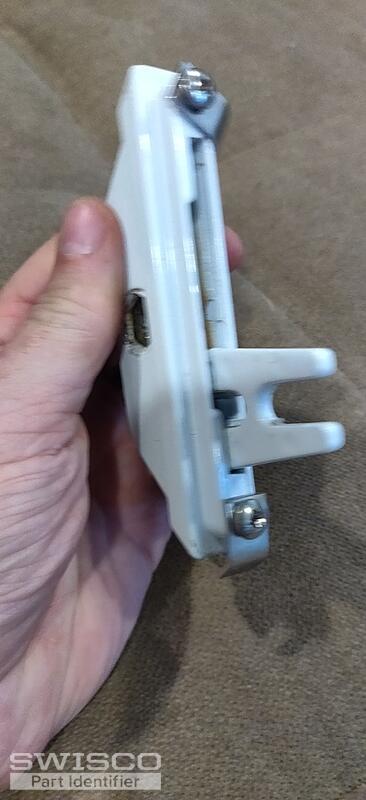

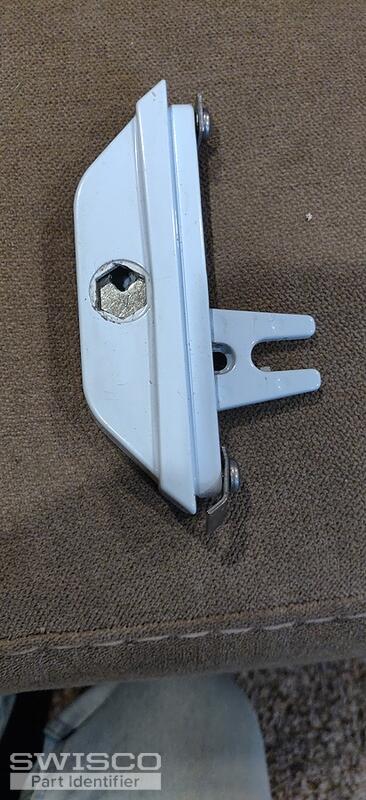

Our one lock mechanism broke and the other looks like it is about to. We purchased the home with these windows. There is no name nor numbers on the parts. They only thing is inside there are two circles one with B1 and the other 99. The mechanism is 4 1/2" tall and is 3/4" wide. The screw holes are 3 3/4" apart. The latch is 1 3/16" long, 9/16" at front and 1 1/16" at base.

4 user uploaded images

4 Replies

Emily from SWISCO

May 18, 2021 10:10 am

Hello!

Take a look at our 38-095 and 38-096. Review our dimensions and compare them to your current hardware to see if everything matches up for what you need.

Home Owner from Southampton Pa

May 18, 2021 11:21 am

Thank you. This maybe a stupid question. What is the difference between 38-095 and 38-096?

Emily from SWISCO

May 19, 2021 8:56 am

Not a stupid question at all!

Truth Hardware manufactures different depth reaches, so the 38-095 is considered the "medium slider".
