Replacement of sash baance on Milgard single hung aluminum window due to cord breakage

Quick Learner from Santa Rosa, California

Jul 25, 2024 5:34 pm

Current sash balance
Stamp Code; 26 3 FL CALDWELL
Channel Width: 1/2"

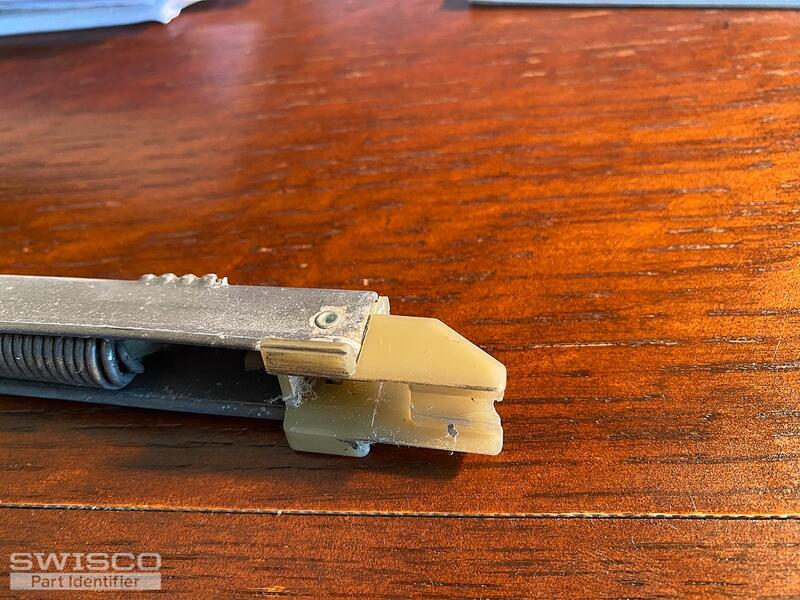

Wings both sides
Balance Shoe Depth 1-3/32" (15-004)
Channel Length: 27"

Please provide model# of correct replacement balance
Thank you

4 user uploaded images

4 Replies

Emily from SWISCO

Jul 26, 2024 12:58 pm

Hi there!

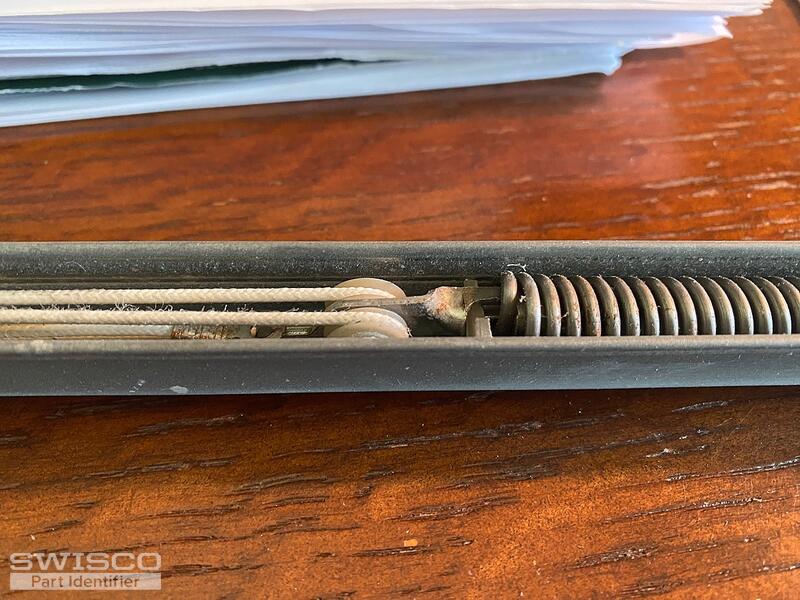

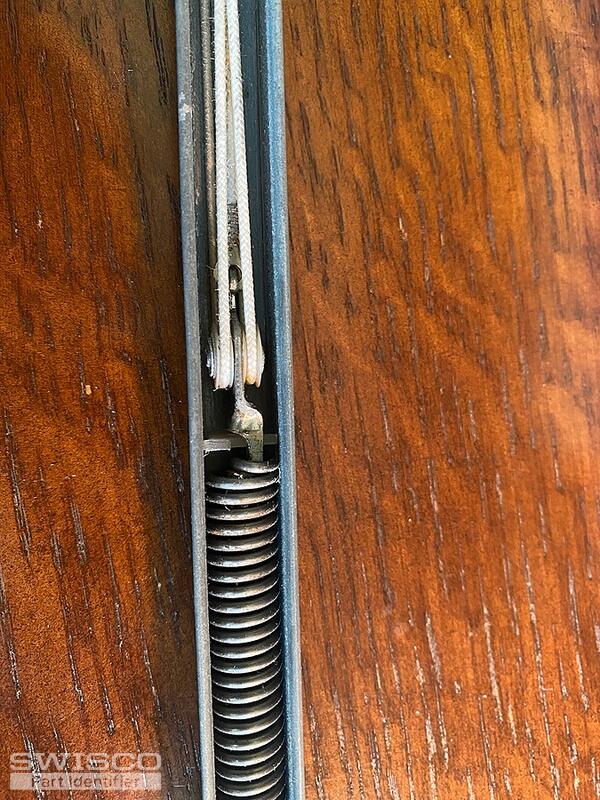

We can help with this. Before I recommend anything, can you also show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Quick Learner from Santa Rosa, California

Jul 26, 2024 2:33 pm

Thank you Emily.
I have attached the photos you requested. Also, FYI the window sash weighs 20 pounds.

2 user uploaded images

Emily from SWISCO

Jul 26, 2024 3:38 pm

Thank you kindly! Based on your photos, you can use the S385-27 with the 2630 stamp option. This comes attached with the 15-004 1-3/32" shoe.

Let us know if you have any questions!
