Replacement operator and Hinge Set for Milgard Casement Window

Question

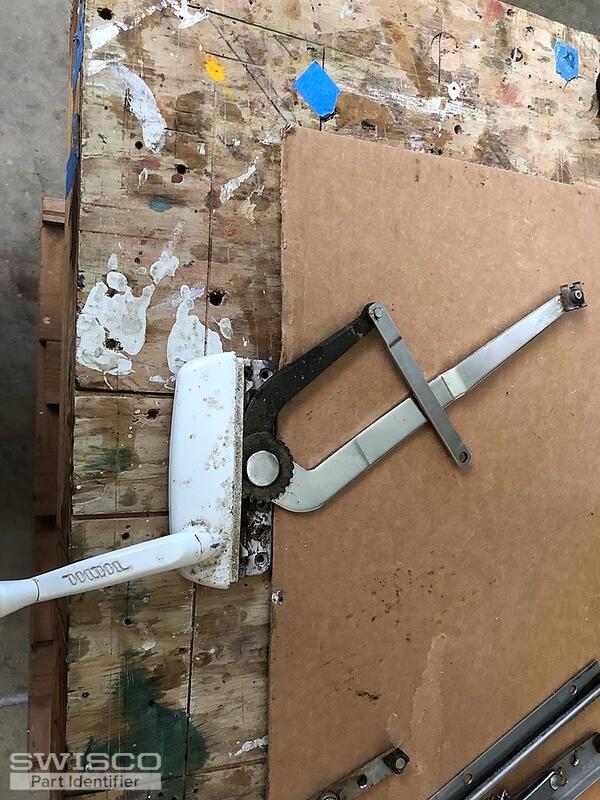

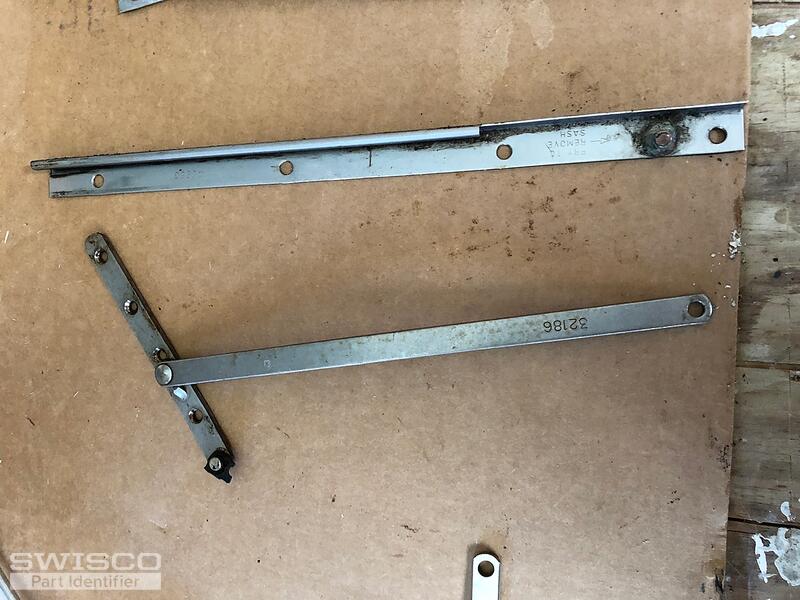

I would like to replace the operator and Hinge set on a Milgard Vinyl Casement window. Can you point me to the right replacement parts. on the hinge set that attaches the window frame one has the number 40986 and the other has the number 40987, assuming one mounts to top of frame and the other to the bottom. On the moving arm there is a number 32186.  There are no numbers on operator that I can identify.

Jasmine · Accepted Answer

Hello,

Thanks for posting! For an operator replacement, take a look at the 39-253LB Encore Dual Arm Operator and its opposite handed version the 39-253RB. Carefully review and compare the dimensions to determine if these are the correct parts to replace your hardware.

I've tagged the compatible cover kits as well as other compatible accessories you are likely to need, below.

Dimensions for 39-253LB

The window hinge can possibly be replaced with the 36-048 2-Bar Hinge Set but you'll need to be sure to compare the dimensions. Keep in mind there is a chance you may need to drill new installation holes to install them (be careful not to drill into the glass pane). These can be used to replace the top and bottom hinges, on the right and left side of the window.

Detail of 36-048

Additional dimensions for 36-048
