Replacement part

A quick learner from New Jersey says:
July 5, 2023
Hello
I have Patriot vinyl windows. I just ordered tilt in tabs that I hope fit.

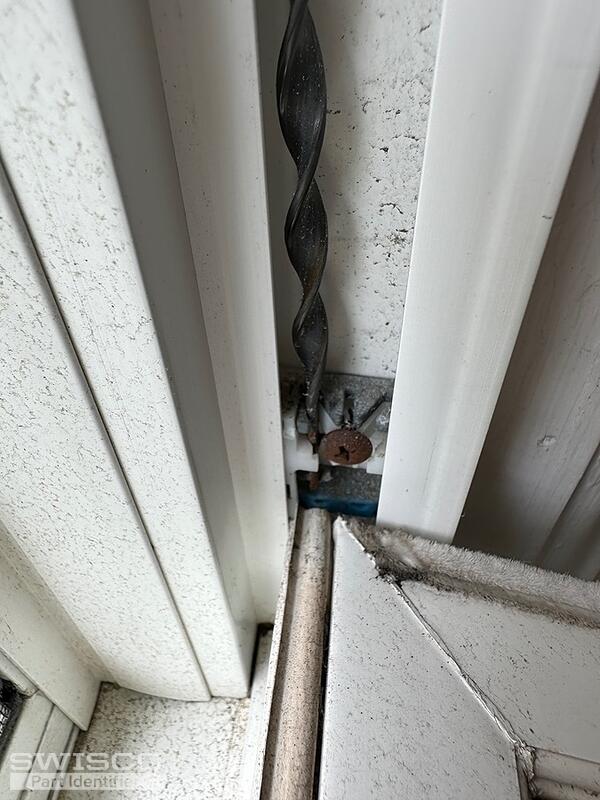

I am also looking for the parts in the attached photo. I believe the one item is called a balancing shoe. And the other is the spiral cord

Looking forward to seeing if you have these parts
Joe
Thumbnail of the uploaded file named IMG_0604.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
July 6, 2023

Hi Joe, thank you for posting,

It appears that your window uses spiral balances. You could have either the Series 900 with a 3/8" diameter tube or the Series 600 with a 5/8" diameter tube. You will need to measure the length and diameter of the tube to confirm the correct replacement.

As for the the pivot shoe, we will need to see it removed from the window with written out dimensions of the width and thickness. From there we can narrow down our selection to determine the best fit. Thank you!

A quick learner from New Jersey says:
July 6, 2023
Thanks Lauren
Will measure and revert back
Joe
Profile picture of Lauren
Lauren from SWISCO responded:
July 6, 2023

Thank you!

24" Series 600 Spiral Tilt Window Balance
24" Series 600 Spiral Tilt Window Balance
S600-24
$8.92
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
