Replacement part

Hello, thank you for posting,

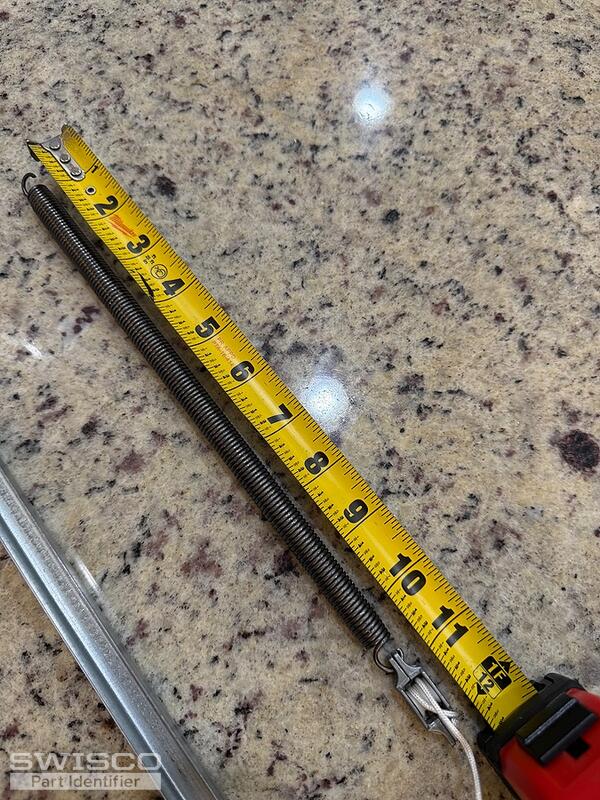

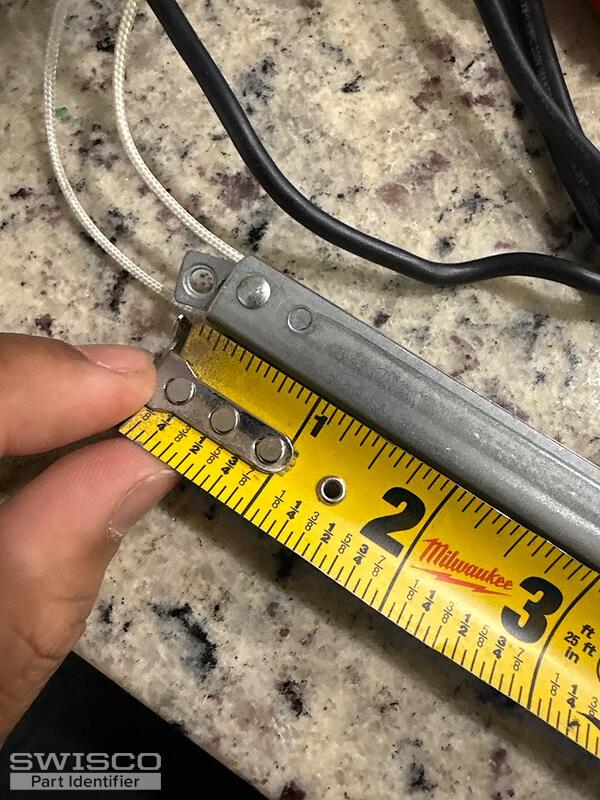

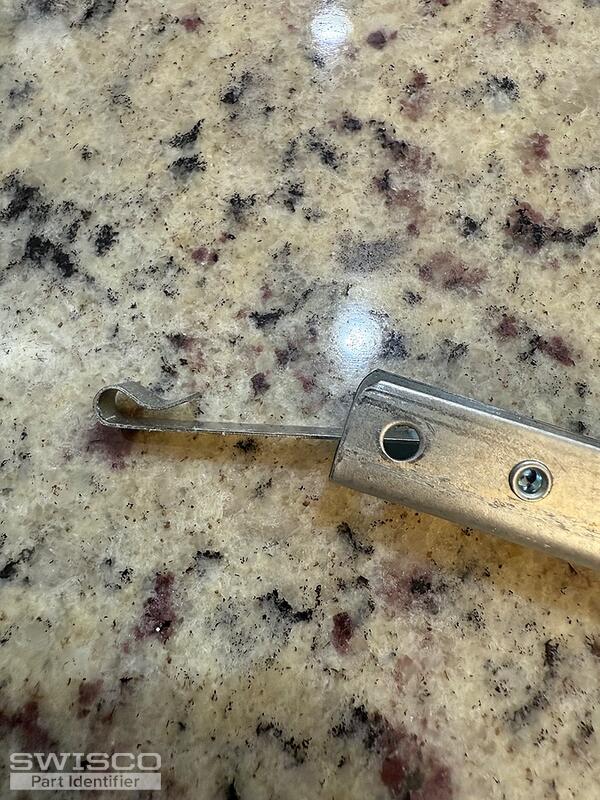

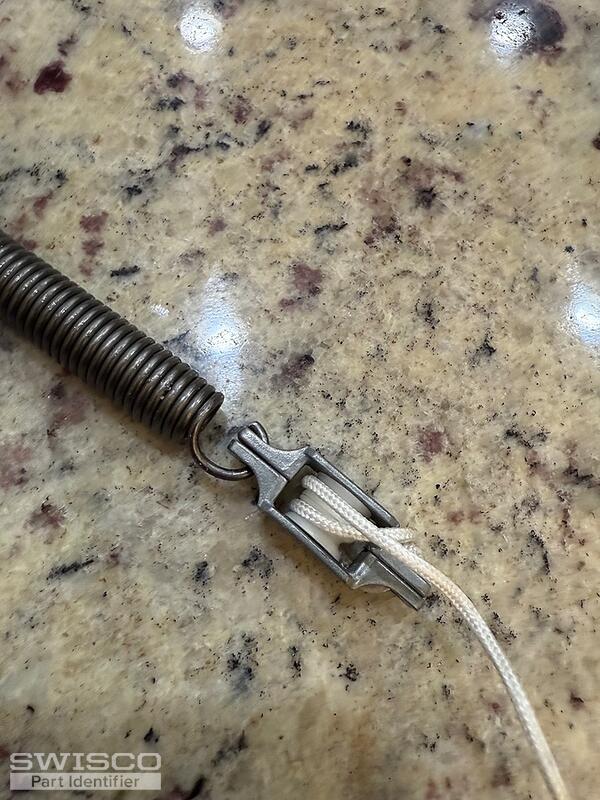

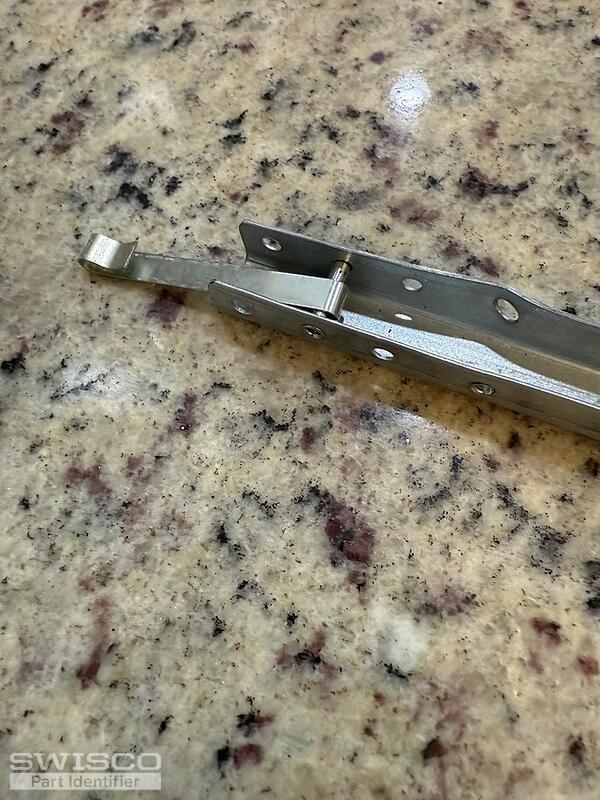

To further review, are you able to show us the metal clip/attachment at the end of the pulley cord along with a clearer image of the top of the balance to confirm how it installs into the window channel?

Please also confirm the length of the metal channel. From there we can determine the right fit for your window. Thank you!

Thank you,

Your balance resembles the Series 770, but with a rivet at the top to be installed with a S-clip. We can assemble the rivet in the top via a custom order.

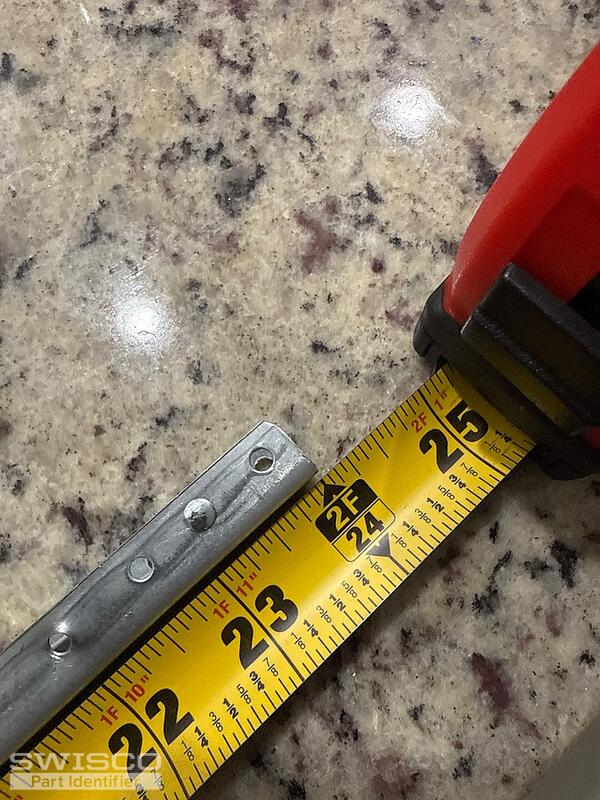

To further review, can you confirm that the metal channel measures 23 inches long?

How many are you in need of? For custom orders there is a minimum of (2). From there I can send over an order link with pricing for your review. Thank you!

Thank you,

Your original 23C stamp should translate to a 24C stamp that can support a 17-22 pound window sash, but we recommend weighing the sash to confirm as these balances are nonrefundable.

Please note that the balance will have a rivet installed in the top hole. Your original has the rivet a little bit lower. Due to this difference, you may need to use a shorter S-clip like the 19-029 (sold separately) to install to make up the difference.

I have sent over a separate email with an order link for (4) balances with pricing. Please let me know if you have any additional questions and custom orders are nonrefundable.
