Replacement part for benchmark bifold steel doors

Handy Person from Syracuse, NY
Dec 27, 2015 6:54 pm

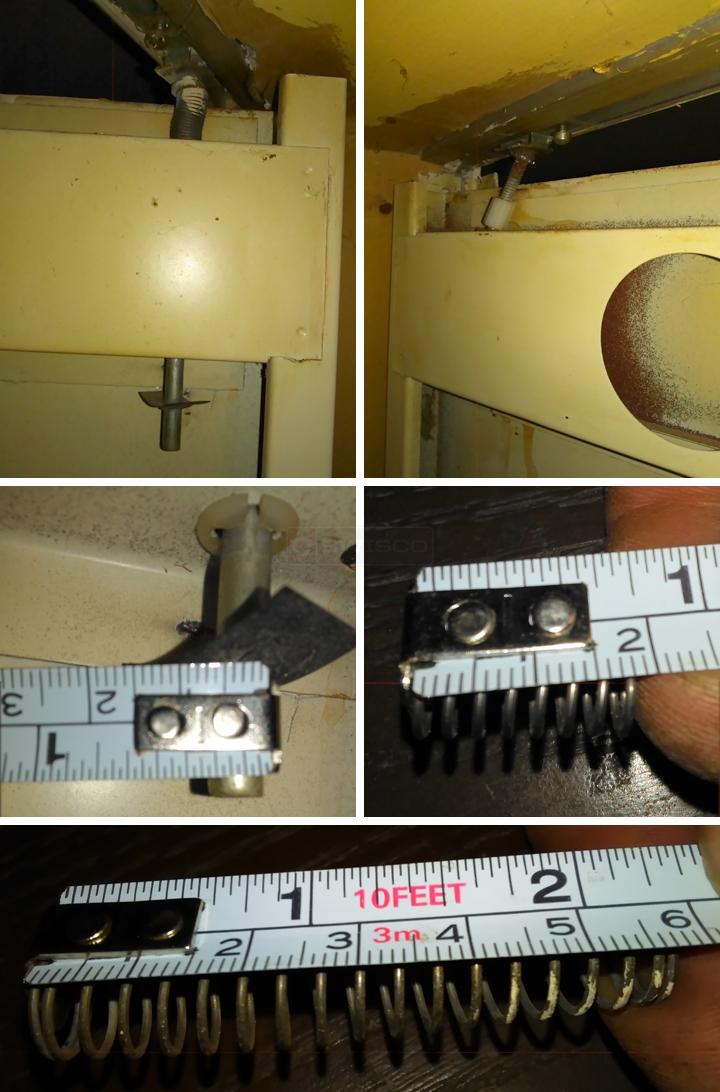

I need a replacement part for benchmark bifold steel doors. Pictures show one part intact on one door, but the same part is missing for the other door. Please let me know if you can help me. Thank you.

5 Replies

Handy Person from Syracuse, NY
Dec 29, 2015 1:56 pm
I should have mentioned, it's the top pin I need a replacement for. I'm assuming now that the odd shaped washer/nut is from the bottom pin? Homeowner could have done anything with it. Are there installation instructions available for both pins? Thank you for your help, it is much appreciated.

Paul from SWISCO
Dec 30, 2015 1:34 pm


You can use 21-044 guide pin assembly for the top guide pin that fits in the top bracket and for the top and bottom door guide. I find that the 21-044 is an easier pin assembly to install. You'll need to remove the door to make the pin installation easier.
First, pull down the the top guide pin out of the track and then the top pivot pin to remove the door. Remove the old pins by breaking off the bottom palnut. Squeeze the bottom spring retainer off the 21-044 pin, then slide the pin with the spring through the door. Install the spring retainer back on the pin to lock it on the door. Reinstall the two bottom pins in the track and pull down on the top pins to reinstall in the top track. The door adjustment is at the bottom of the 21-002 threaded pin. Loosen the nut and then screw the pin either clockwise or counterclockwise to raise or lower the door.
First, pull down the the top guide pin out of the track and then the top pivot pin to remove the door. Remove the old pins by breaking off the bottom palnut. Squeeze the bottom spring retainer off the 21-044 pin, then slide the pin with the spring through the door. Install the spring retainer back on the pin to lock it on the door. Reinstall the two bottom pins in the track and pull down on the top pins to reinstall in the top track. The door adjustment is at the bottom of the 21-002 threaded pin. Loosen the nut and then screw the pin either clockwise or counterclockwise to raise or lower the door.

Handy Person from Syracuse, NY
Dec 30, 2015 3:15 pm
This has been extremely helpful, thank you for your time!
