Warm Greetings from AZ!

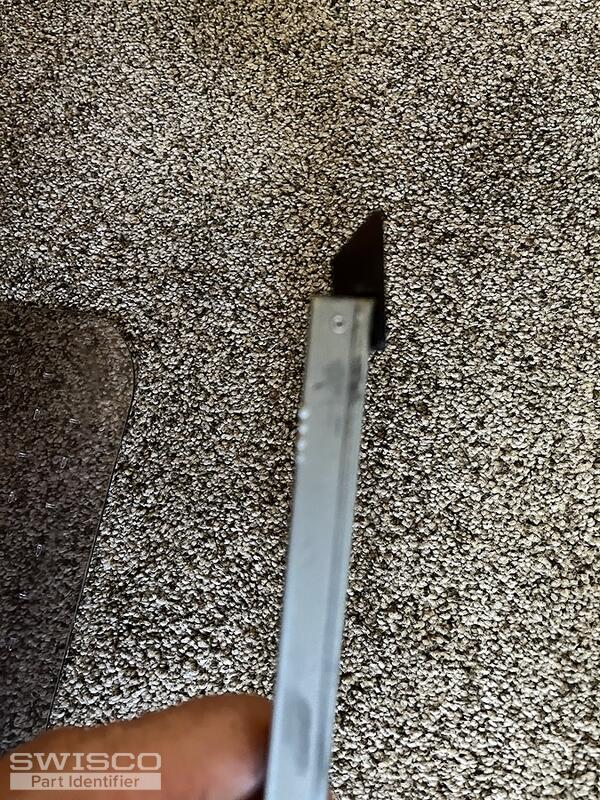

I have 2 windows that need repaired. They are the same size. Can you tell me which channel balance part I will need to order to replace the broken ones? Thank you!
Dean W
Replacement part assistance
Home Owner from Lake Havasu City , Arizona
Oct 15, 2022 6:18 pm
5 user uploaded images
3 Replies
Home Owner from Lake Havasu City , Arizona
Oct 15, 2022 6:20 pm
Also the length of the aluminum is 29 inches by 1/2 inch width
Emily from SWISCO
Oct 19, 2022 2:10 pm
Hello, Dean!

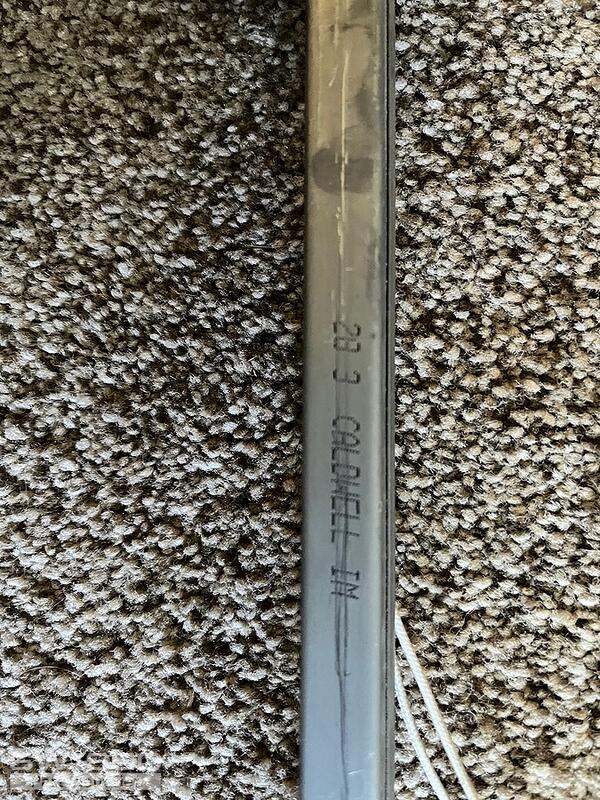

Thank you for reaching out to us. I recommend either our S351-29 or S390-29 channel balance. The only difference between these two similar looking parts is the bottom shoe size. The Series 351 comes attached with a 1" deep shoe and the Series 390 comes attached with a 1-1/8" deep shoe. Measure as shown in the image below to see which one is the best match. Based on your 28 3 stamp, you will need the 2830 spring strength option.
Comparison of the S351 and S390 balance shoes.
