Replacement part for 30" channel balance (non-tilting window)

Question

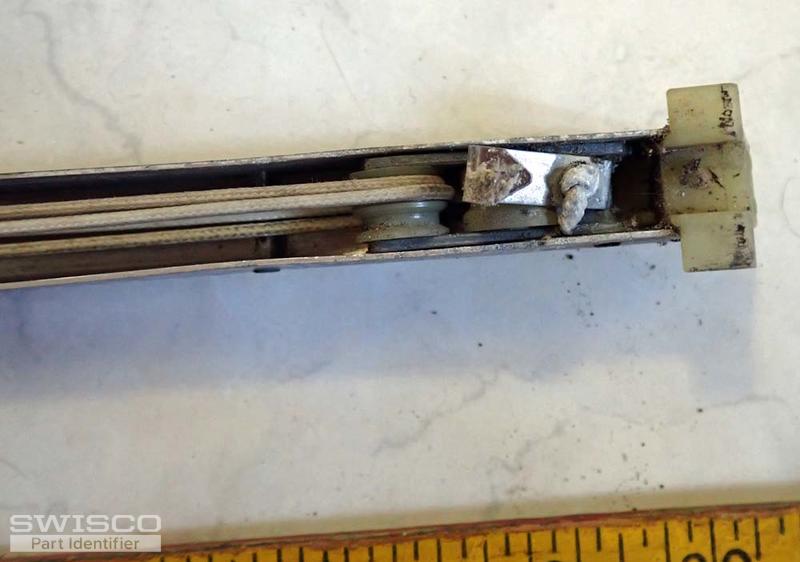

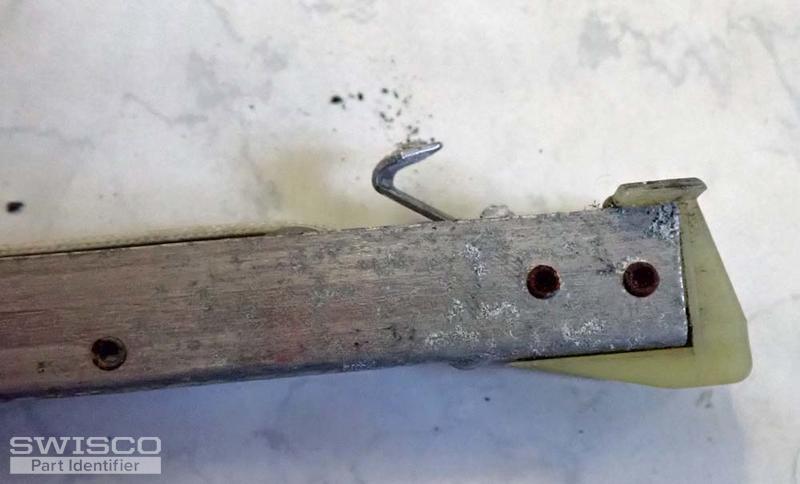

I need to replace the channel balance for my Alcan windows (non-tilting). Length is 30". Width is 1/2". Stamping on the balance reads "2900". Attached are side and front views of both top and bottom clips.
I will be ordering both balances for this window, if you have the part.

I have ordered other replacement part from you for this windows. Hope you have the correct balance.
Thank you

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
