Replacement part for mirror wardrobe door tracks

Quick Learner

Dec 19, 2023 12:49 pm

Hi there. I have some old monarch safety mirror wardrobe doors that I'd like to install. The dimensions of each door is 36 wide by 72 high. The opening of my wardrobe area is 72 in by 72 in. I believe the rollers are concave and their dimensions are 1 - 3/8 in diameter and 3/8 in wide.

Hole to hole 2-3/8
Wheel diameter -1-3/8

4 user uploaded images

10 Replies

Emily from SWISCO

Dec 20, 2023 2:28 pm

Hello!

I agree, it looks like your roller wheels are concave. Take a look at our 23-270 track for concave rollers. Review the specifications and see what you think.

Quick Learner

Dec 21, 2023 2:52 am

Thanks. I will be needing both lower and upper tracks. Can you recommend both based on the dimensions of my rollers and closet opening? Again the wheel diameter is 1-3/8 and the width of the closet opening is 72 inches.
Thank you.

Emily from SWISCO

Dec 21, 2023 8:04 am

I'm afraid we don't sell a 72" concave track but what you can do is take two smaller tracks, such as the 23-270, butt them together, and then cut the excess off using a hacksaw.

Our 23-028 roller looks similar but our wheel diameter is 1-1/2". Can you double-check that for us just to be safe?

Quick Learner

Jan 4, 2024 2:57 am

Update: I did double check the dimensions of the roller system on my old mirror door.

Wheel is 5/16" w by 1-7/8" diameter. Metal bracket is 3" high by 2-1/2" wide with 2-1/8" between the holes.

It does seem like the 23-028 is a very close match. I wouldn't think that 1/16" difference in the wheel diameter is a problem. Is the 23-028 is our guide, would bottom track 23-272 work? And is 23-246 the correct upper rail?

Emily from SWISCO

Jan 4, 2024 11:04 am

Yes, the 23-028 is compatible with the 23-272 track for concave roller wheels. However, I can't confirm if the 23-246 track is what you need for the top. Can you upload some photos of the top roller or guide?

Quick Learner

Jan 5, 2024 3:26 am

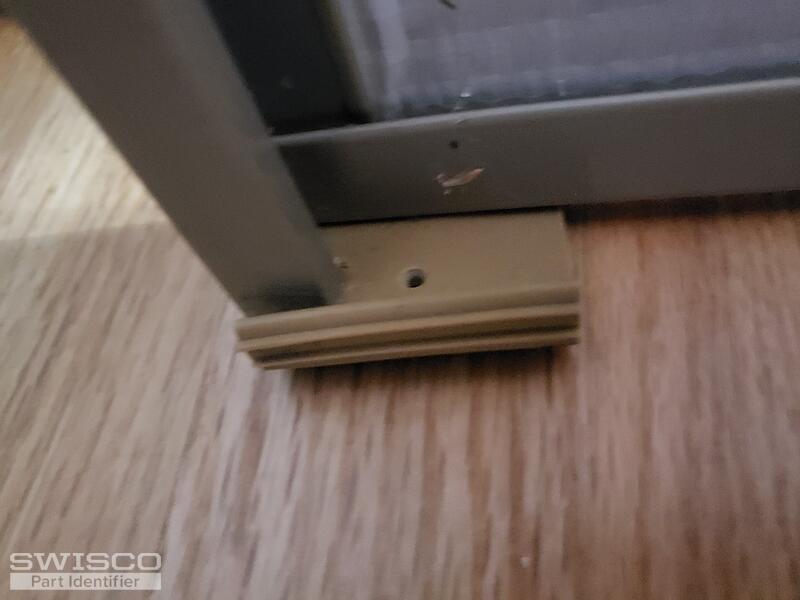

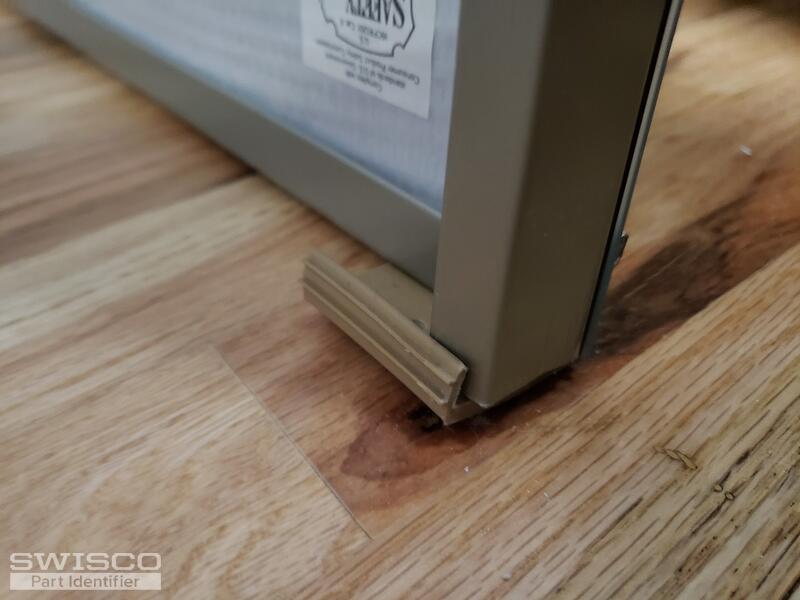

The top is 1" wide plus another 1/4" for the mirror. There are some brown plastic end pieces about 2"in length that cover each corner.

2 user uploaded images

Emily from SWISCO

Jan 5, 2024 2:07 pm

Thank you for the additional photos. Unfortunately, we don't sell a track that is compatible with the guide shown here. I am very sorry for the inconvenience.

Quick Learner

Jan 5, 2024 2:52 pm

I don't understand why the top will not fit inside the 23-246?

Paul from SWISCO

Jan 9, 2024 10:25 am

Apologies for the confusion. If I understand you correctly, the rubber guide and mirror door are 1-1/4" wide. If that's the case, it may fit in the channel of 23-246 track that is 1-1/2" wide.
