Replacement part for window

A home owner from baytown tx says:

January 22, 2023

Can you please help me get replacement parts for my Windows at home. In this email you will find and attach pictures of the hardware that I need. Please get back to me as soon as possible with any help that you can give me.

Respectfully, Miguel

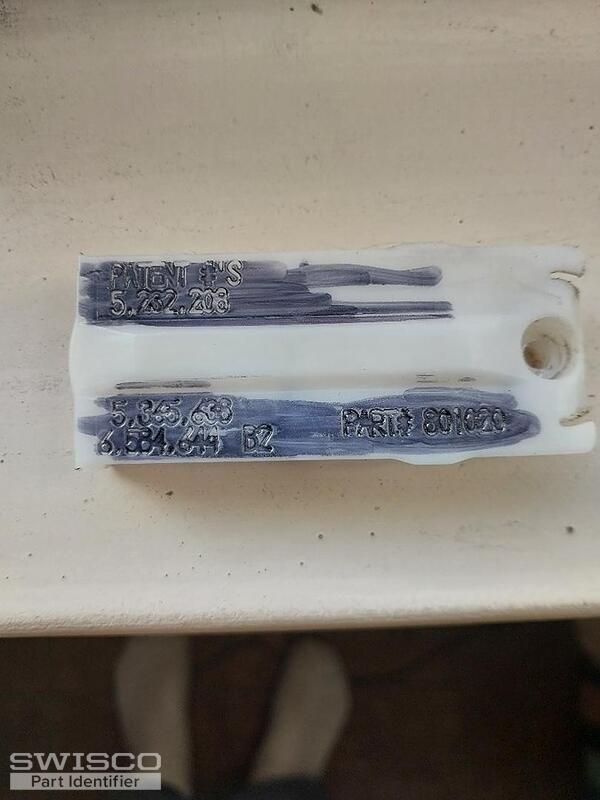

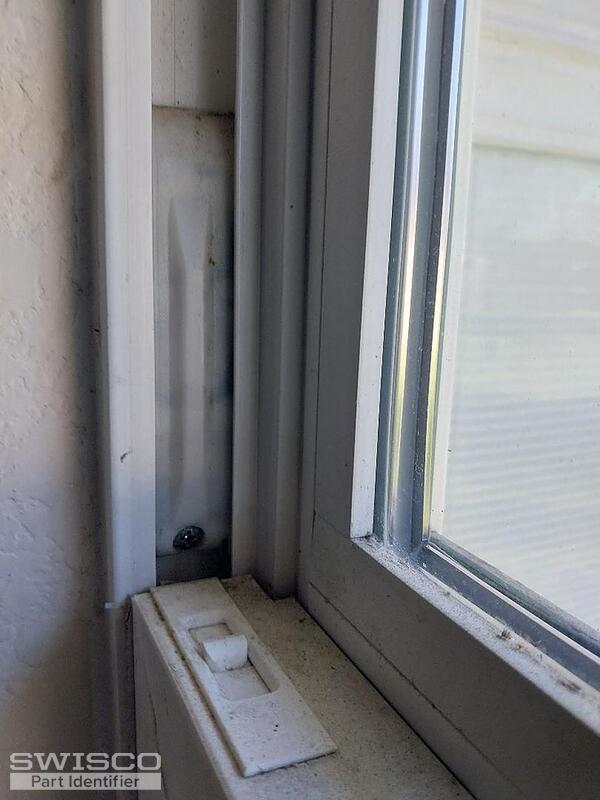

Thumbnail of the uploaded file named 04.jpeg

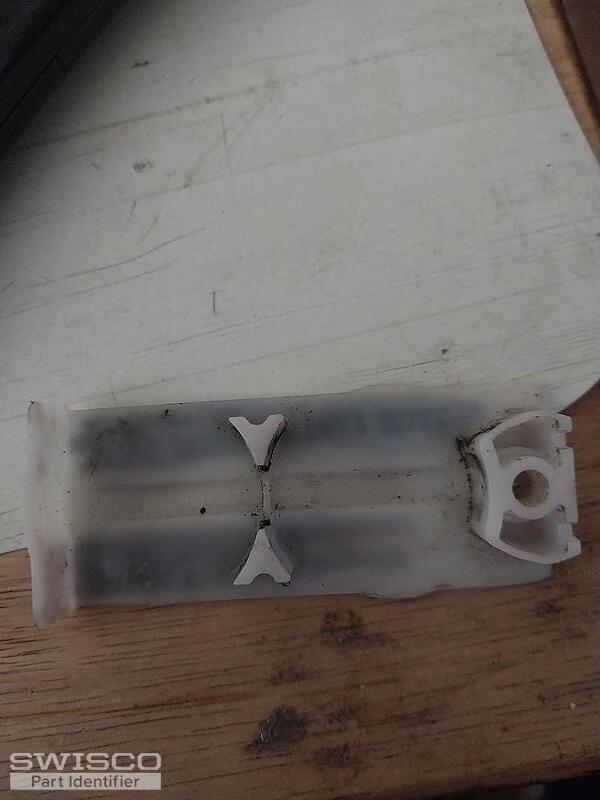

Thumbnail of the uploaded file named cover.jpeg

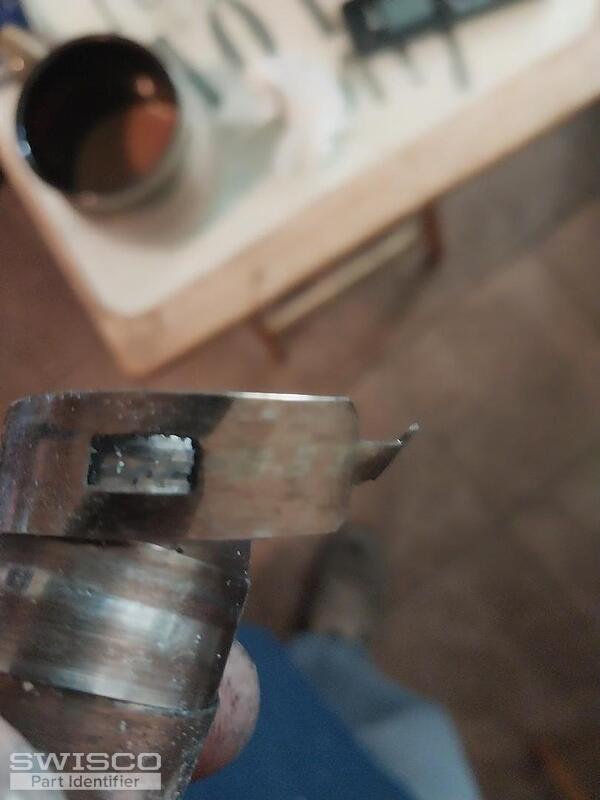

Thumbnail of the uploaded file named spring 1.jpeg

Thumbnail of the uploaded file named COVER 2.jpeg

Jasmine from SWISCO responded:

January 24, 2023

Thanks for reaching out.

Given that you have two different window covers, I would like to confirm that all of the hardware from your windows are the same. If they are different, this will be extremely important to know.

To start, there are two possible recommendations I can make for your coils spring our S160 (1/2" wide) or S165 (3/8" wide). You will need to confirm the width of your coil to determine the correct coil replacement.

Concerning your tilt latch, I recommend taking a look at part. Compare the measurements to determine if this will be a fit for you.

Alternate view of 26-243

Profile view of 26-243

Tilt Window Latch, Left Hand

26-243

$2.70
