Replacement part needed for a keyed patio door lock

A quick learner from Manassas Park, Virginia, 20111 says:
March 4, 2021

Hello Team,

We have a patio door from PPG Herculite that has a basic manual sliding door lock without a KEY system.

The pictures of an existing locking system is attached here. I want to have the manual locking to be replaced with a key lock for extra security.

Can you please direct/guide me which part i should be using/ordering and how to have this existing system replaced.

Thanks,

Shalabh

Thumbnail of the uploaded file named 2.jpg
Thumbnail of the uploaded file named 3.jpg
Thumbnail of the uploaded file named 4.jpg

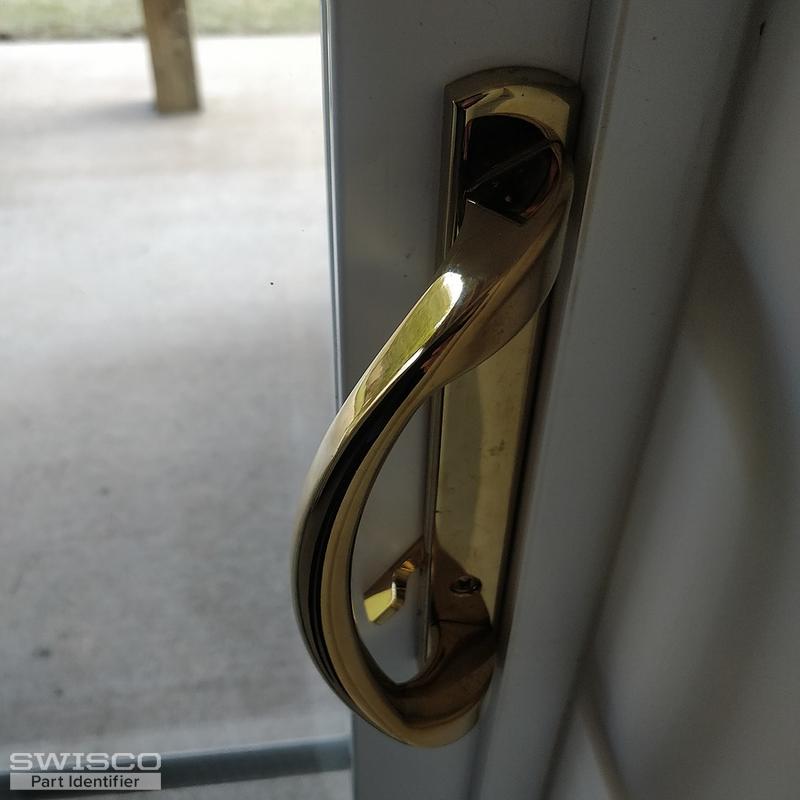

Thumbnail of the uploaded file named 5.jpg

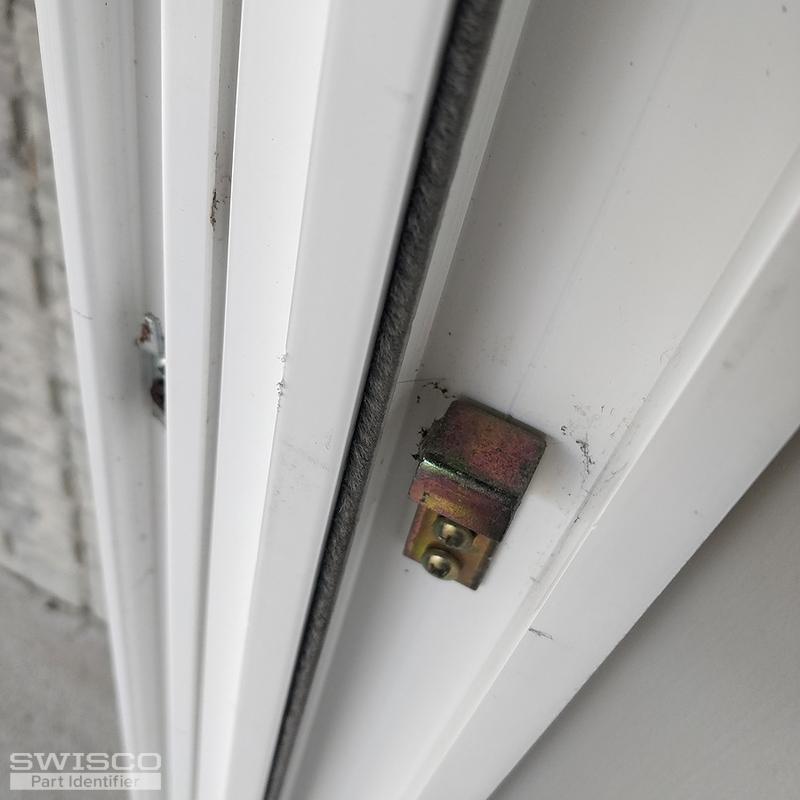

Thumbnail of the uploaded file named 6.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 5, 2021

Hello, Shalabh. Based on your photos, I feel confident that our 82-087 handle set can be used to replace what you have now. The design is a little different but it should be fully compatible with your door. Look it over and see what you think!
A handy person from Manassas Park, Virginia, 20111 says:
March 5, 2021
Hi Tom,

Yesterday, while talking to a support specialist and referring this discussion thread, i was informed that 82-086 would work for my kind of door lock. I've gone ahead and ordered it already. Do you think it will work instead of 82-087?
Profile picture of Tom
Tom from SWISCO responded:
March 5, 2021

The 82-086 and 82-087 are identical in every respect except for the color finishes available for each. I only offered the 82-087 because it comes in brass, which matches your original handle. If you prefer the color options for the 82-086 then that will work perfectly fine.
A handy person from Manassas Park, Virginia, 20111 says:
March 5, 2021
That's perfect!! thanks for your quick reply. I will try to install this ordered item and get back in case of any further questions...
