Replacement part needed for my window channel balance

Home Owner from Garden Grove, CA 92840

Hello,

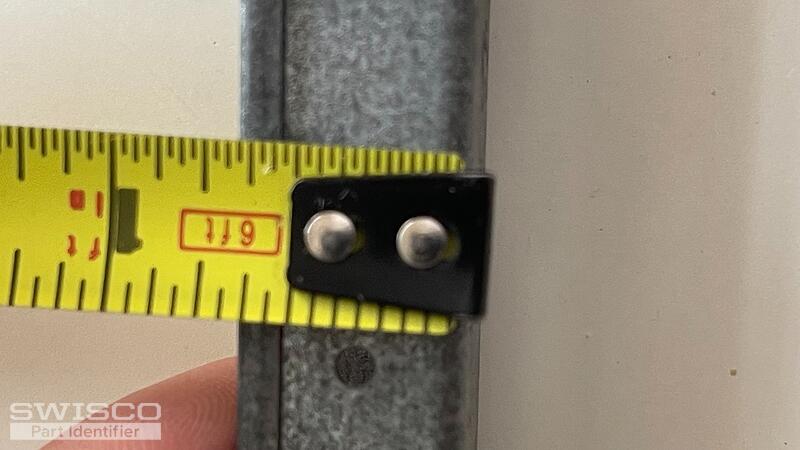

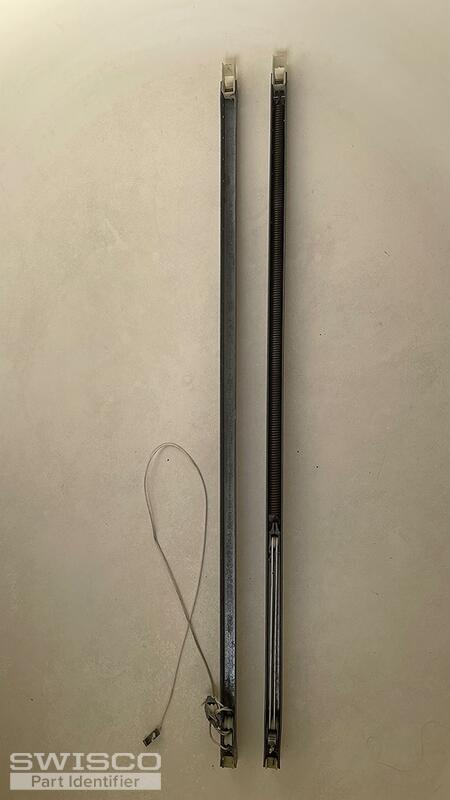

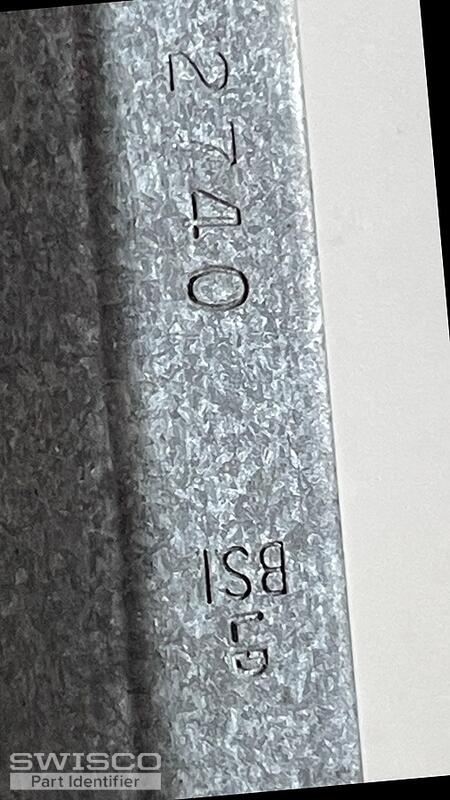

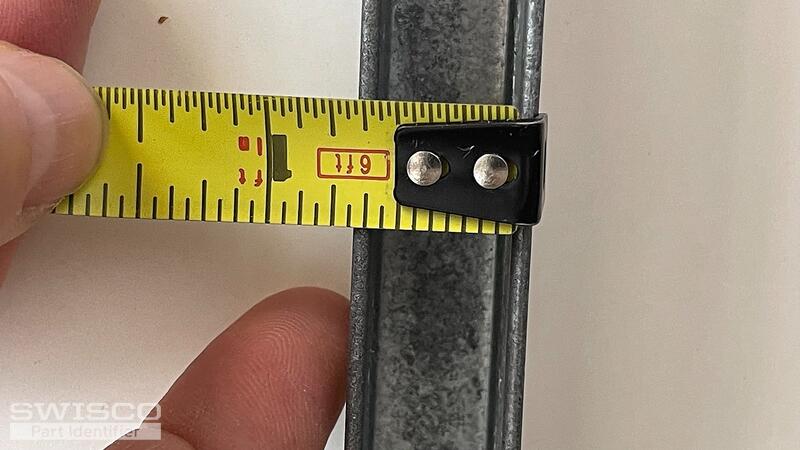

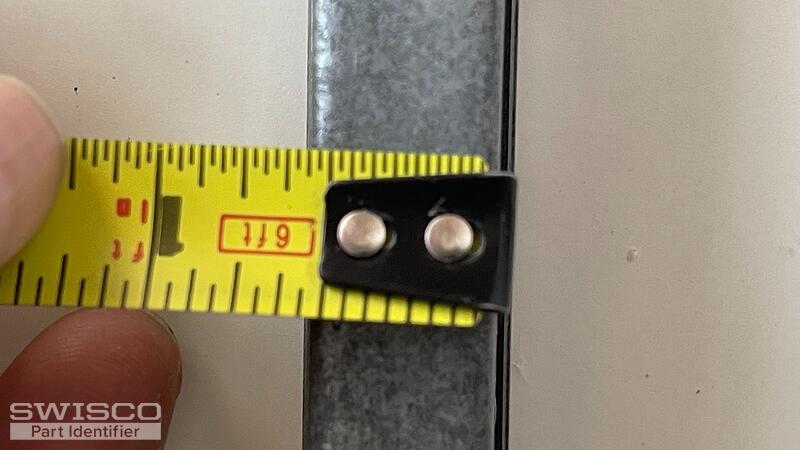

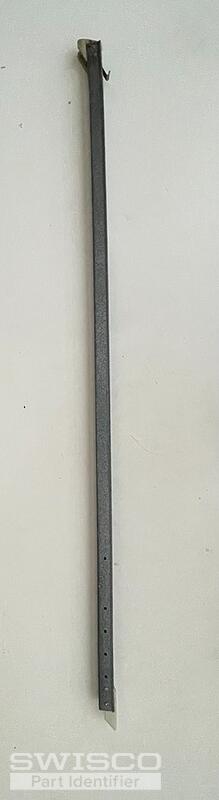

I am looking for the replacement for my window channel balances. The length of its metal part is 28 inches. The product code, the widths and the depth are in the uploaded images. Please let me know if you have the replacement for it.

Thank you,

Tony

5 user uploaded images
7 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey Tony. I am sure we can help, but can you send me closer photos of the nylon attachments on both ends of the metal channel? The style of attachments should narrow down your options. Many thanks.

Home Owner from Garden Grove, CA 92840

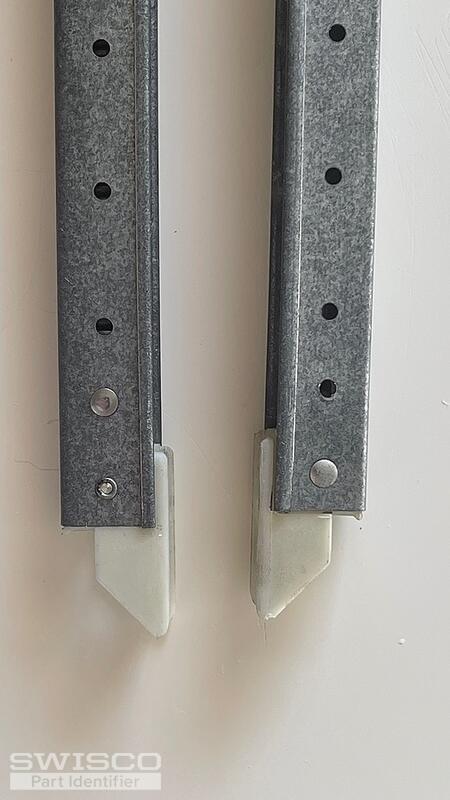

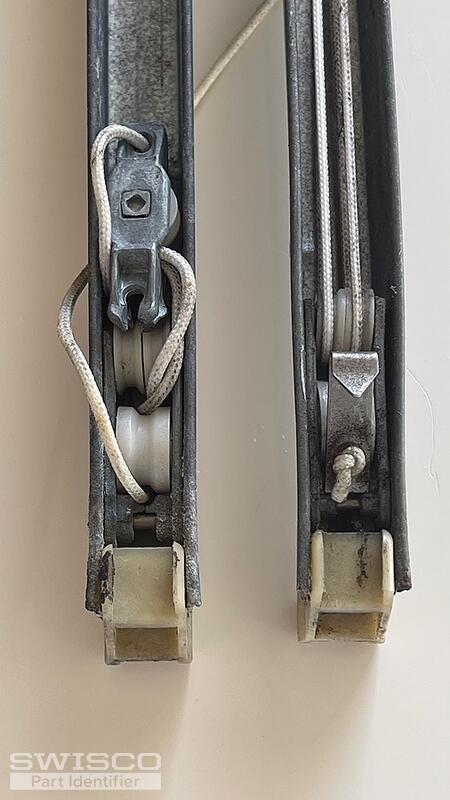

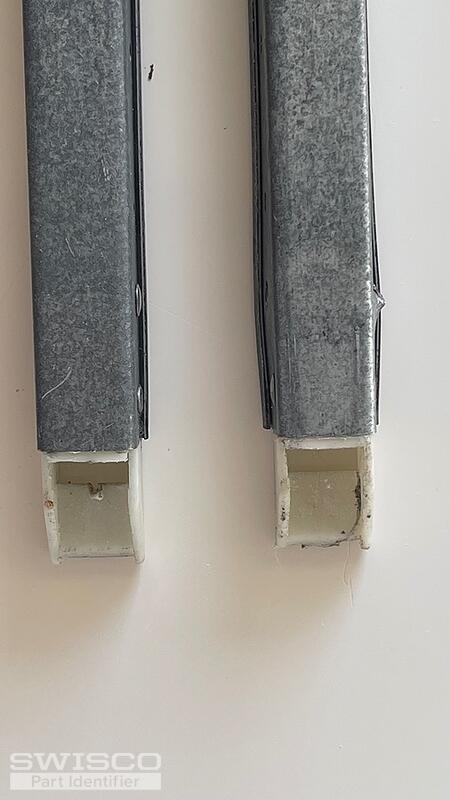

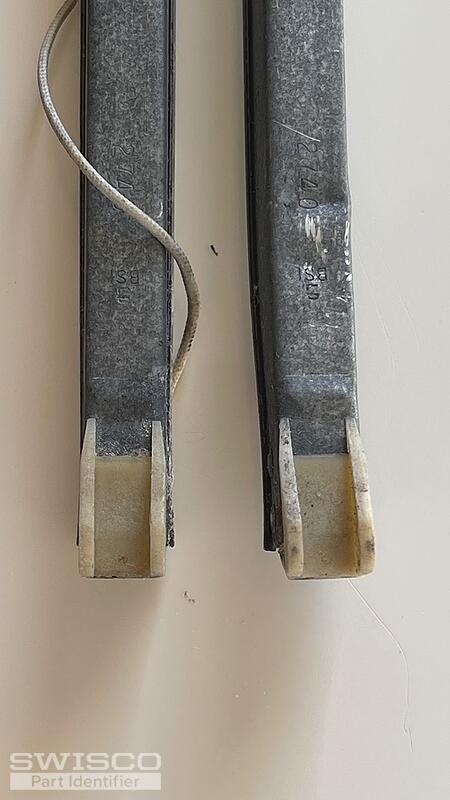

Here are more pictures of the both ends:
5 user uploaded images
Home Owner from Garden Grove, CA 92840

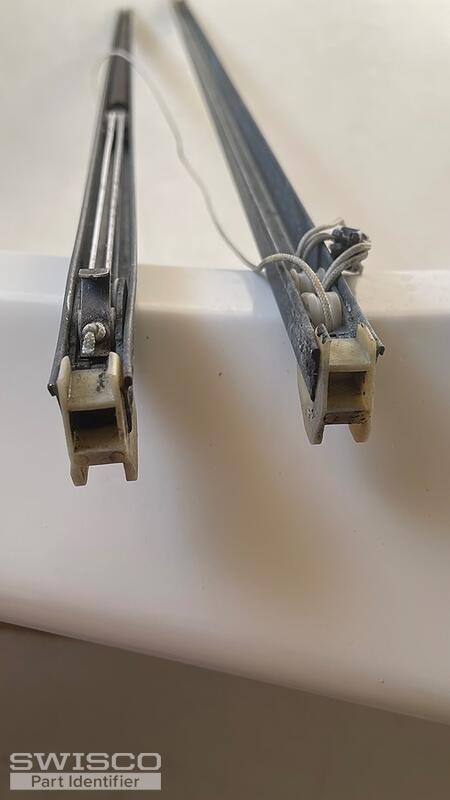

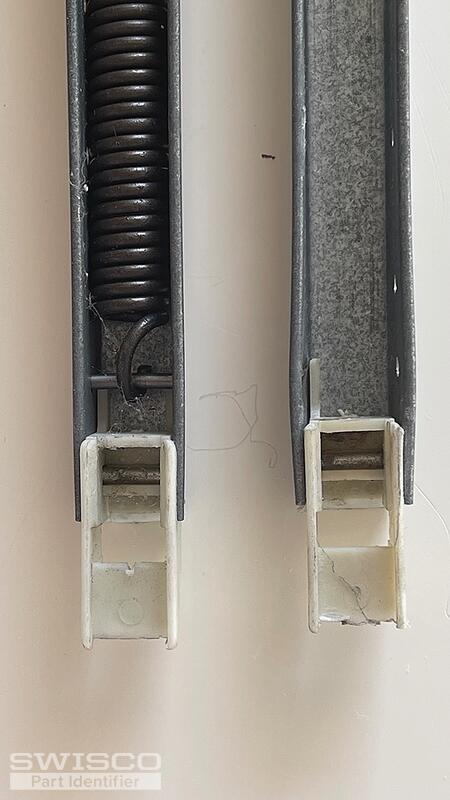

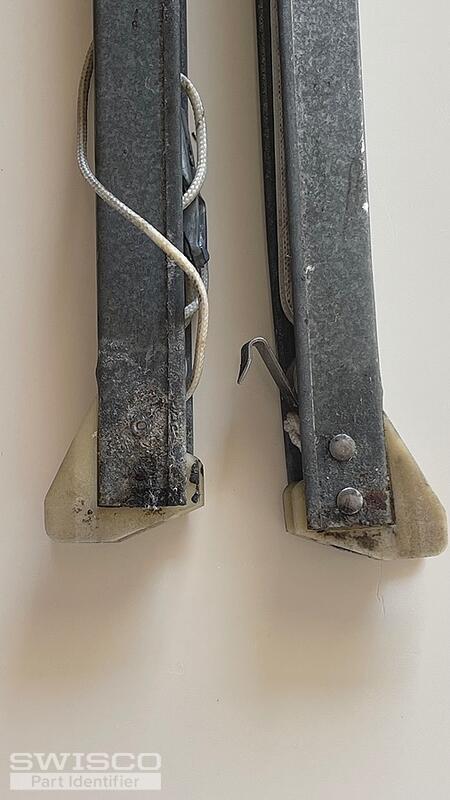

And some more pictures
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for responding. See our S351-28 or S390-28 Channel Balances. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both balances with your old hardware to see what matches best. For a stamp option choose 2740.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Home Owner from Garden Grove, CA 92840
It seems the S390-28 with option 2740 is a good fit for me. Thank you, Bob, for your great help!
Bob
Bob from SWISCO
SWISCO
Expert

Anytime! Please feel free to reach out if you needed anything else.
