Replacement part needed for shoe and balance

A handy person from Peachtree Corners, GA says:
October 23, 2022
Please provide order number for replacement (generic is fine) for Pivot shoe and balance. Will need balance for 24 AND 22 inch. Thank you. Will the new balance come with clips?

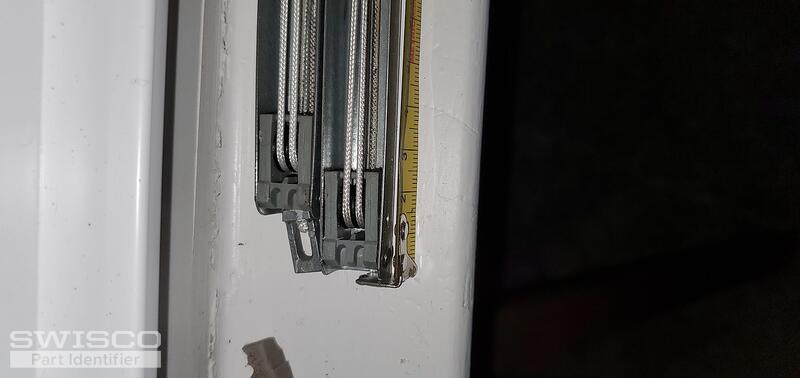

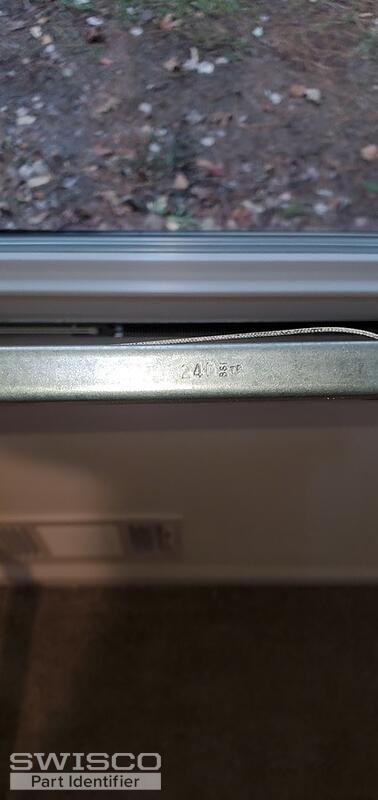

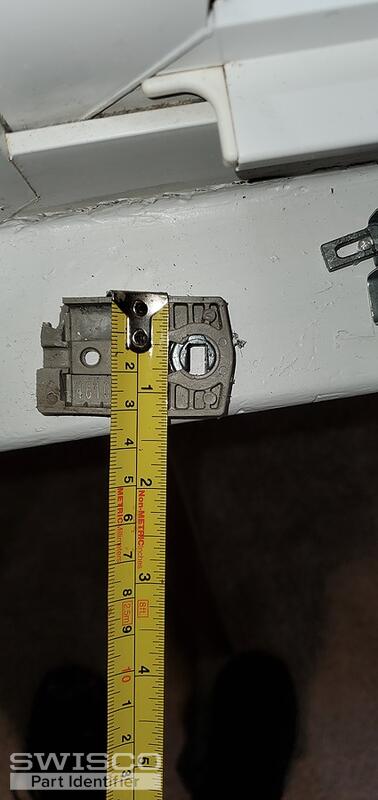

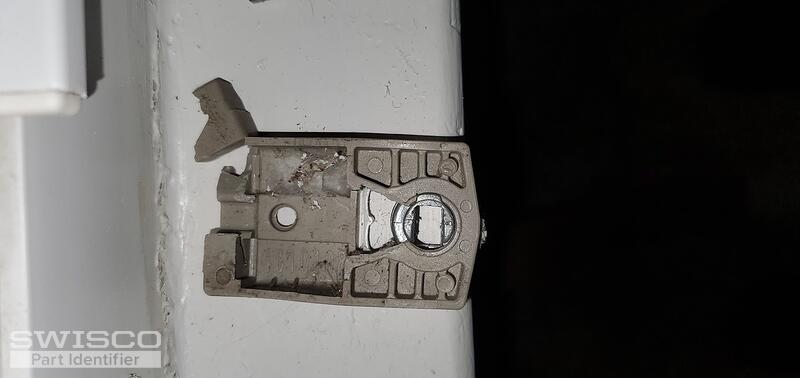

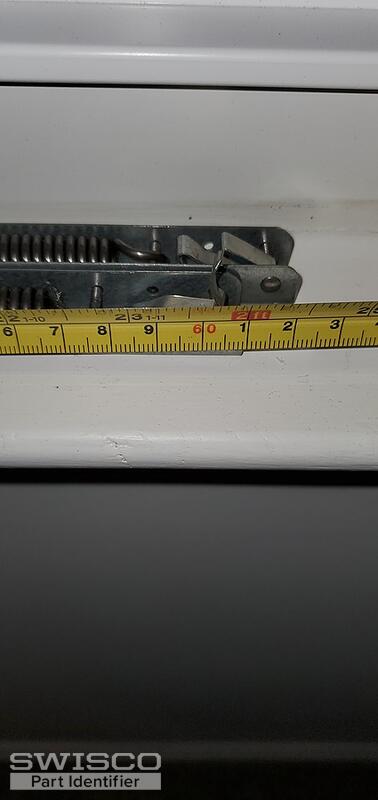

Thumbnail of the uploaded file named 20221023_081845.jpg
Thumbnail of the uploaded file named 20221023_081936.jpg
Thumbnail of the uploaded file named 20221023_082023.jpg
Thumbnail of the uploaded file named 20221023_082033.jpg
Thumbnail of the uploaded file named 20221023_082250.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 27, 2022

Hello! Your pivot shoe looks to be a match for our 15-135. Look it over and tell me if you agree.

The balances look just like our Series 770 at first glance, but I note that yours install at the top using hooks. Can you confirm? If so, these will have to be custom made with that same rivet at the top so that you can reuse those same hooks. It's not a stock configuration.

If that's the case then I will need you to confirm the stamp for the 22" long balance, since your photos only show 24D for the 24". I will also need to know how many of each balance you will require.
Pivot Locking Shoe, 1/2" Thick
Pivot Locking Shoe, 1/2" Thick
15-135
$2.57
