Replacement part of double hung vinyl window

Question

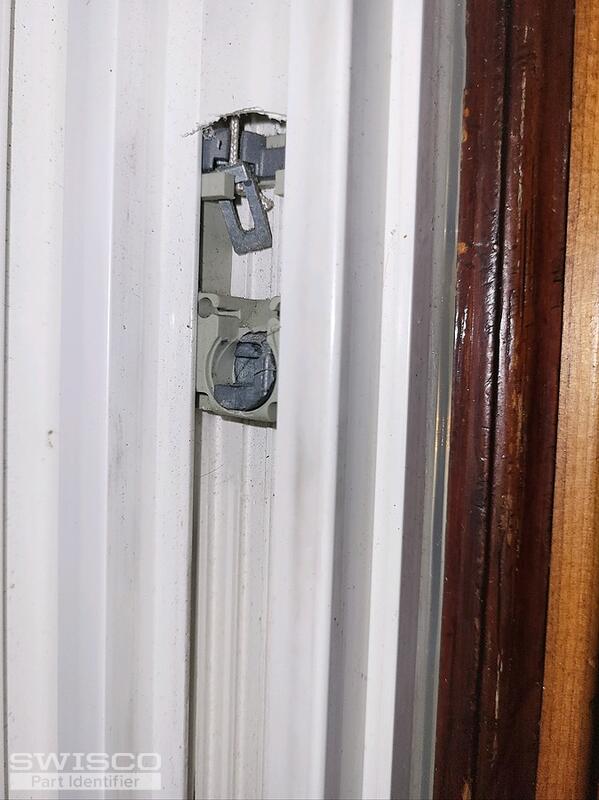

I have a double hung window that has this part broken. Im completely lost when it comes to what part this would be that needs to be replaced. Any help would be great. Thank you

Tom · Accepted Answer

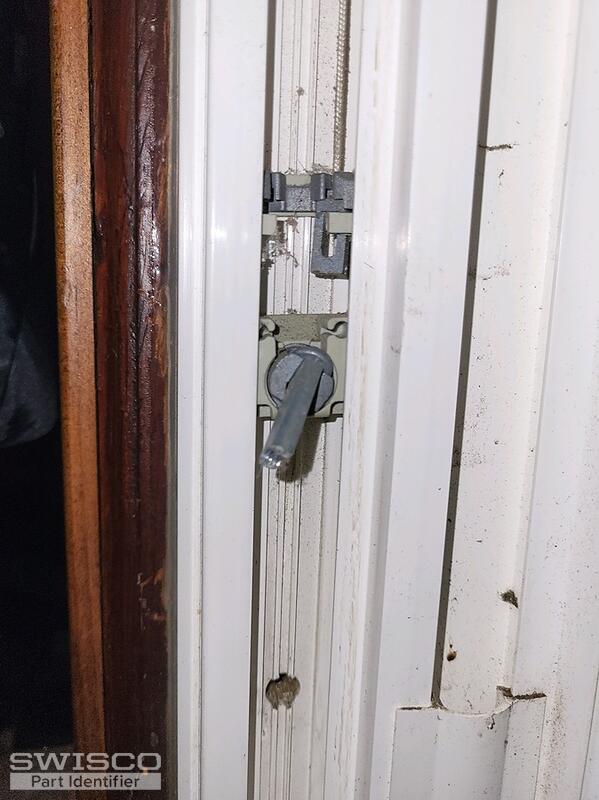

It looks like you need both a pivot shoe and a pivot bar. The shoe is the rectangular piece in the track while the pivot bar is the small, horizontal bar that goes into it.

The pivot shoe, at first glance, resembles our 15-188. You will need to remove the original to verify that the size is the same. As for the pivot bar, yours is too damaged to narrow it down. I'll need a clear photo of an undamaged version removed from the window. Would that be possible?
