Replacement parts

A quick learner from Clermont Florida says:
Do you have these replacement parts for a double hung window?
Thumbnail of the uploaded file named E40E01C1-84E8-482A-BF55-385E17875621.jpeg
Thumbnail of the uploaded file named 90E2112A-CA1E-4BE2-80C0-F42DB2689821.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. This looks like a coil balance system. We can help replace this for you, but it would be best to see the entire system out of the window, particularly the pivot shoe that connects to the bottom of the window sash. The identity of the pivot shoe determines the type of coil balances you need. For help removing your coil balance system see the video below.

A quick learner from Clermont Florida says:
This is a better view
Thumbnail of the uploaded file named 7CA27BEC-E83D-4632-8171-FB7994D02326.jpeg
Profile picture of Bob
Bob from SWISCO responded:

We still need to see it removed from the window completely. Showing the parts to us from a different view will not greater our chances in being able to come up with any accurate recommendations. if you could please remove it completely out of the window and upload photos for us to see, it will greater our chances in finding the correct parts. Many thanks.

A quick learner from Clermont Florida says:
I can also mail one to you if you can't find it

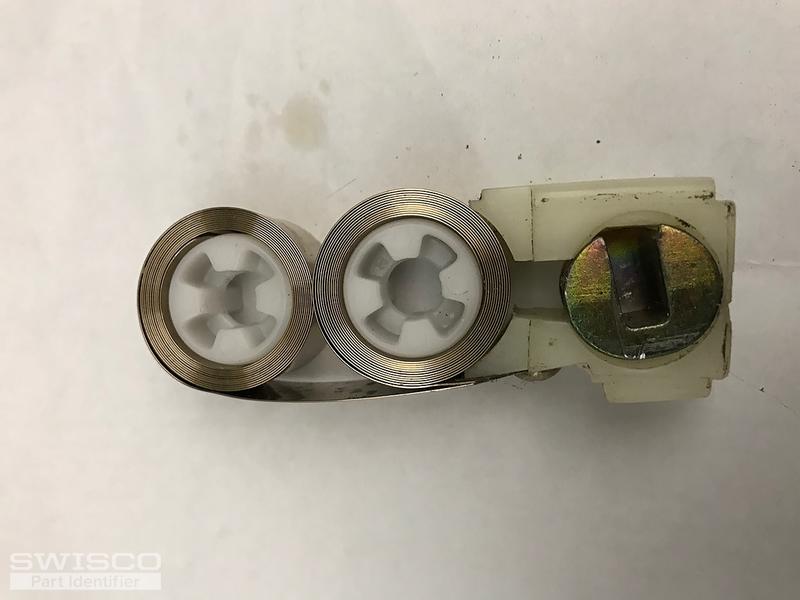

Thumbnail of the uploaded file named 86363E81-60A2-44EC-9E9B-9718C52F4822.jpeg

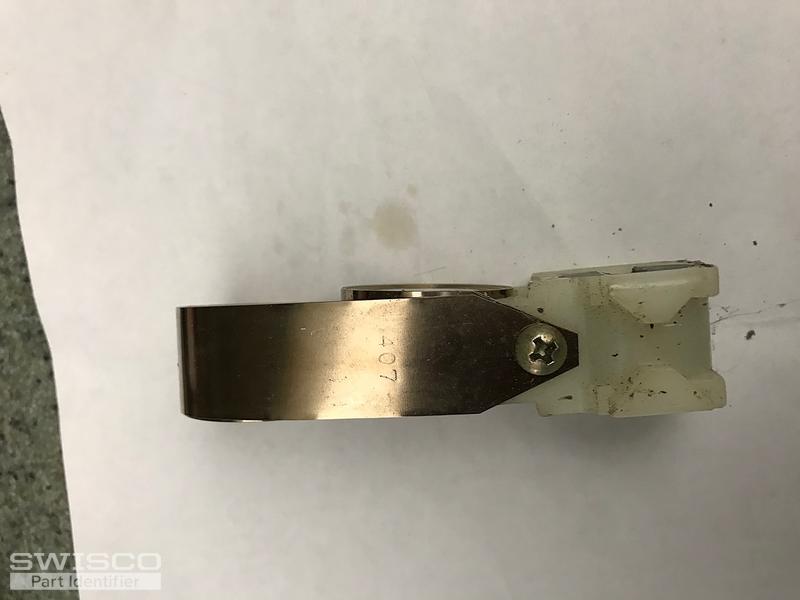

Thumbnail of the uploaded file named 42521172-ADE5-4DE8-87B0-7FF88178873A.jpeg

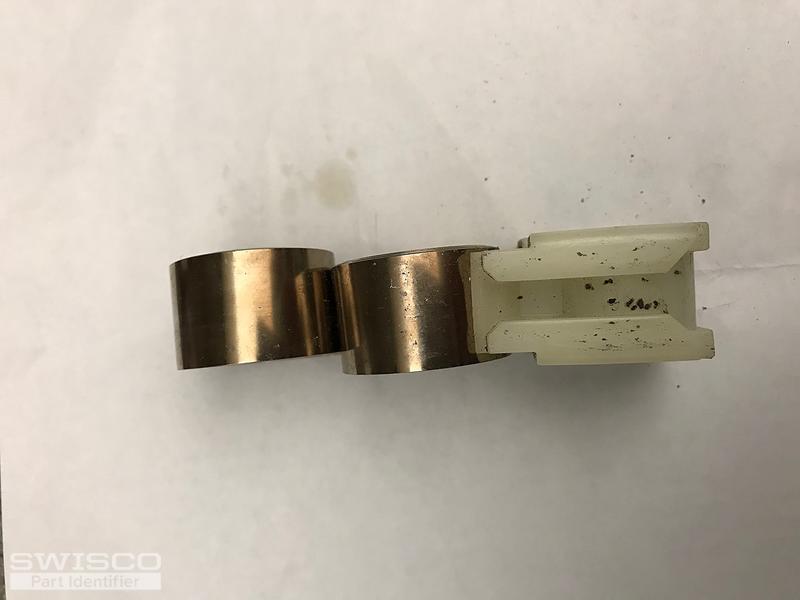

Thumbnail of the uploaded file named A294BF04-10F7-4FA0-8123-D0998AA4C6CB.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! Please see our 15-192 pivot shoe, along with our Series 170 coil (for the bottom spring) and Series 171 coil (for the top spring). You should be able to reuse your old retainers since they look to be in good condition, but if not then see our 15-156 cover and 15-157 bushing.
