Replacement parts

A home owner from USA says:
The window is a vinyl window with a left and right spring
approximate 26" wide
approximate 23.5 height.

The window is light and I am trying to get the weight with a digital scale

I need all the parts associated with keeping the window open Lock
pivot bar
This balance comes complete with a pivot shoe, coil spring, and coil spring cover.
Thumbnail of the uploaded file named 20210109_140607.gif
Thumbnail of the uploaded file named 20210109_140620.gif
Thumbnail of the uploaded file named 20210111_085343.gif

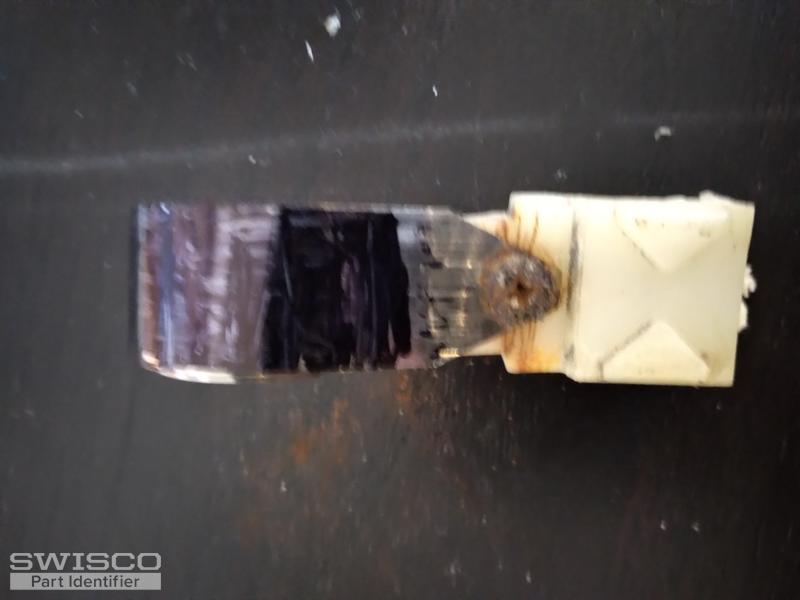

Thumbnail of the uploaded file named 20210111_094259.gif

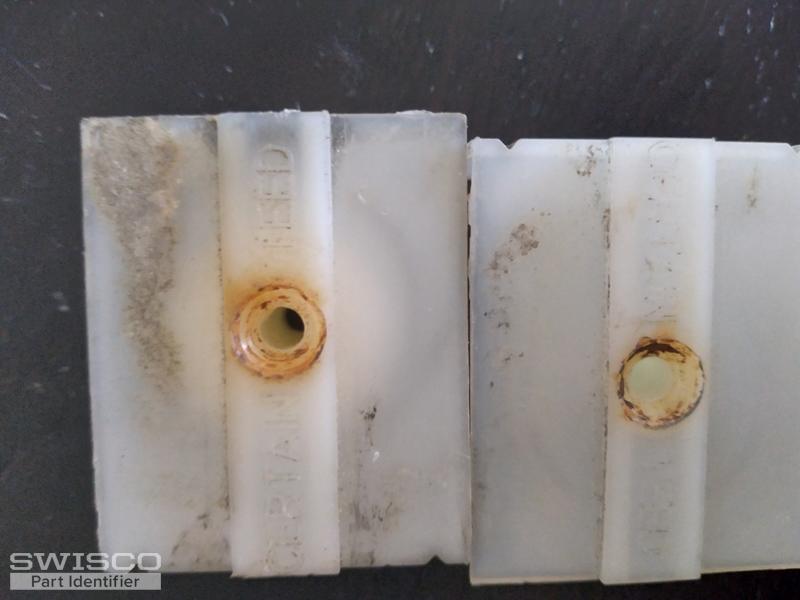

Thumbnail of the uploaded file named 20210111_095502.gif
Profile picture of Paul
Paul from SWISCO responded:

You have an old Certainteed vinyl window. We carry the newer parts that should still fit your old window. The first photo show a fogged, insulated glass. You should take the sash to your nearest glass shop, and they will order a new insulated glass to fit in the sash. The second photo of the window lock, we believe is our 90-274. Please compare the screw hole distance to confirm it will work.

The last three photos are the balance system. We have the 15-192 pivot shoe. Please note it has front surface aligners that might need to be file down to fit in the window track. The coil spring will be Series 170. We were unable to read the spring stamp in the photo. Please match the number to our Series 170 coil springs. The coil spring housing would be 15-156 and bushing 15-157. The pivot bars, the 26-175 will look different then the original, but work with the 15-192 pivot shoe.
