Replacement parts

Home Owner from Crested Butte,co.

Mar 7, 2021 4:26 pm

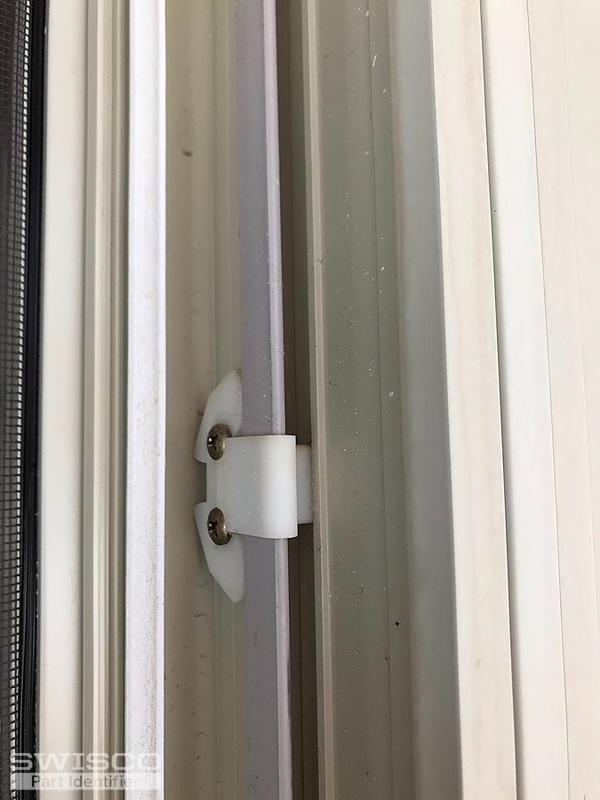

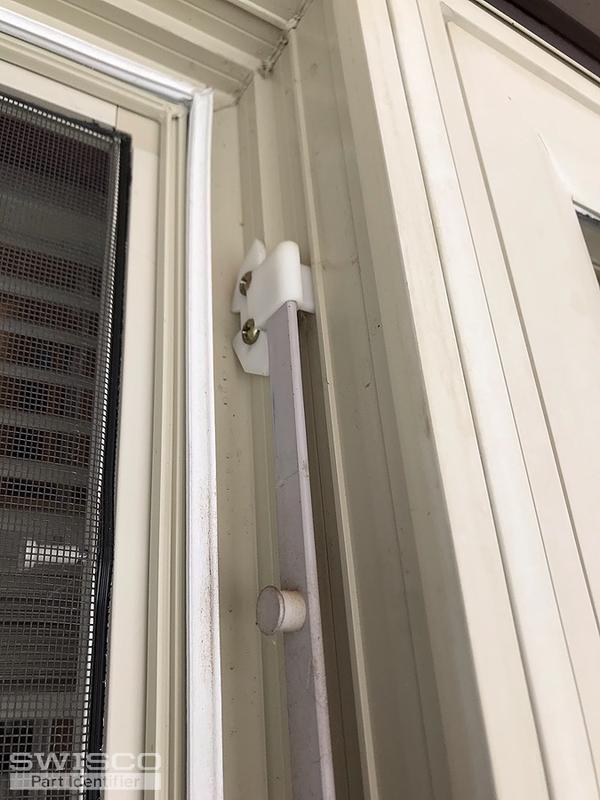

I have weather shield vision 2000 casement windows. The slide bar guides are breaking and I would like to replace them. Otherwise windows are in good shape for their age. Will attach pictures.

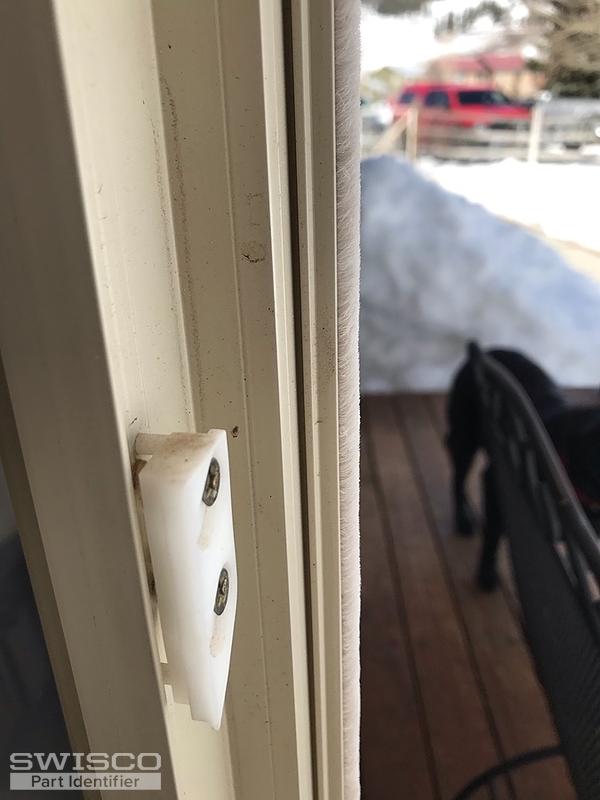

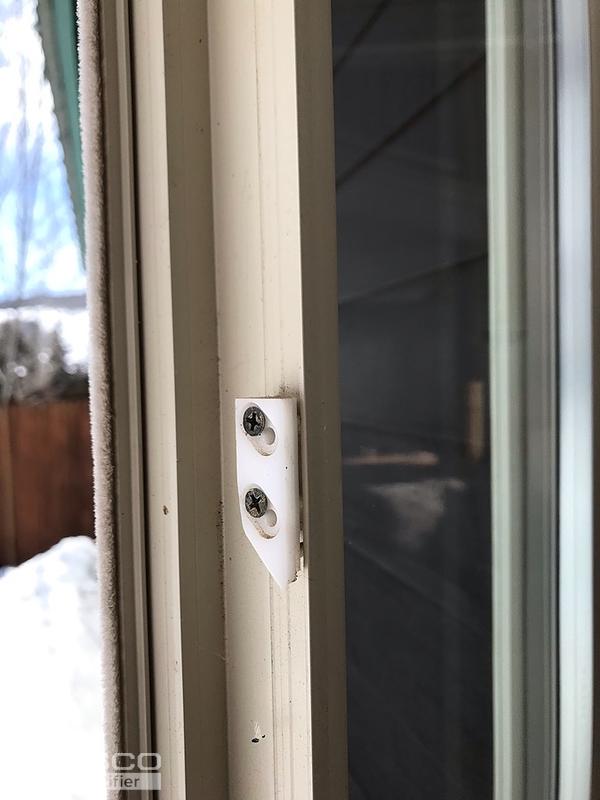

Also sent picture of plastic part that is on the casement window that slide bar contacts to lock window in tight. I really hope you can help me with these parts.

4 user uploaded images

3 Replies

Bob from SWISCO

Mar 9, 2021 11:40 am

This is called a Tie Bar Guide. See either our 39-417 or 39-448. I believe either might work for you, but compare and see what you think.

Home Owner from Colorado

Sep 22, 2025 12:51 pm

For the Weather Shield Vision Pro 2000 Awning windows circa 2005.
39-417 will not work. I found that the 39-448 guide will work with some slight modification. I used a bench grinder to shorten the screw eyelets. They're to tall. Then you cannot use the factory holes. Move the guide out slighty and recrew. Little extra work but cheaper than new windows.
