Replacement parts

A home owner from Dunnellon, Florida says:
I please help us find replacement parts.
The window sash is approx 51 wide by 28 high

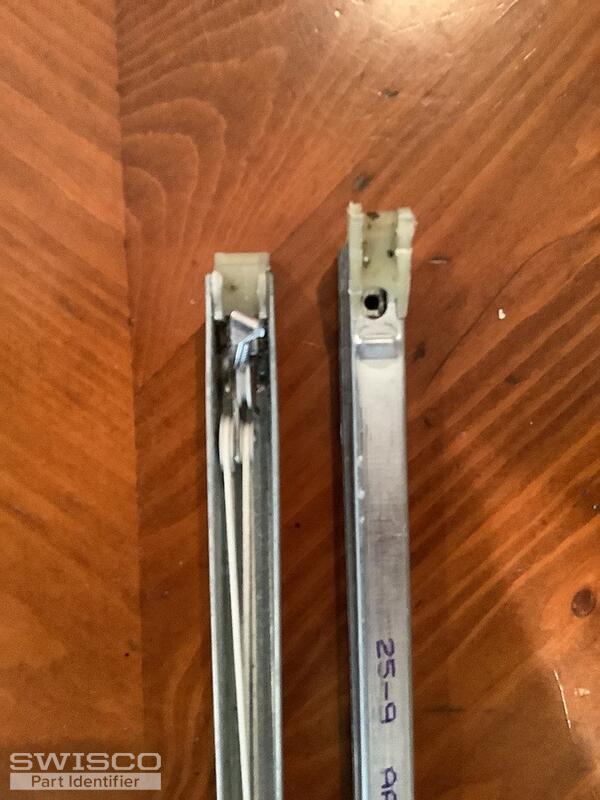

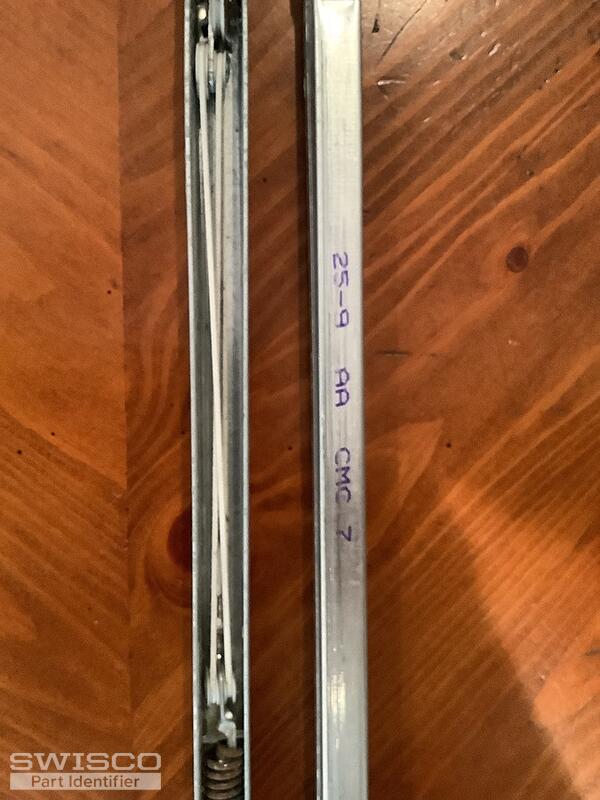

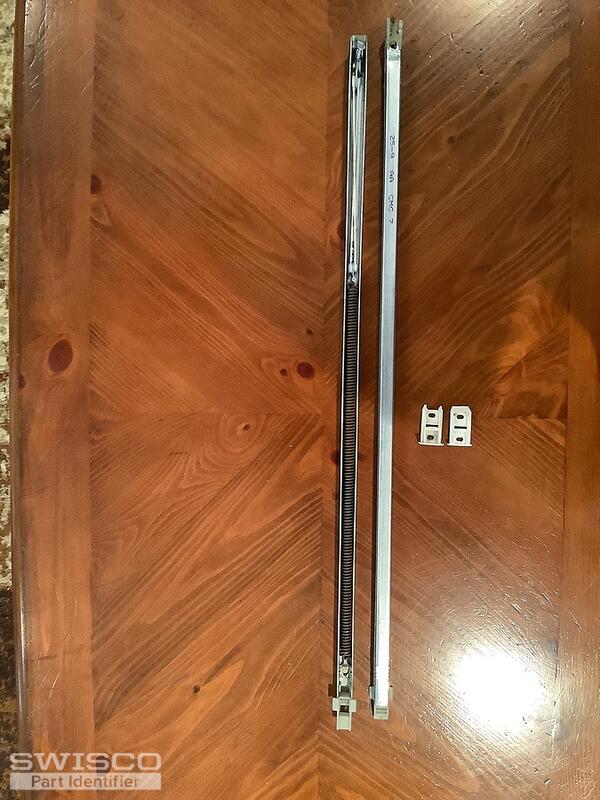

the numbers on the channel balance are 25-9 AA CMC 7 Also 61-259

Thumbnail of the uploaded file named 9B2E6EAD-FCF1-48F0-8183-35985CFDF54F.jpeg
Thumbnail of the uploaded file named 459D95DE-C1E3-412F-B3E3-47B75408D5BF.jpeg
Thumbnail of the uploaded file named 7F73B423-6AF2-4B9E-A7D6-70A74D454E9E.jpeg
Thumbnail of the uploaded file named 552A2C5A-2482-47CB-8BA8-63371181A41E.jpeg
Thumbnail of the uploaded file named EAA599CE-81E5-4D54-BEC8-7F7BB32BDA9C.jpeg
Profile picture of Tom
Tom from SWISCO responded:

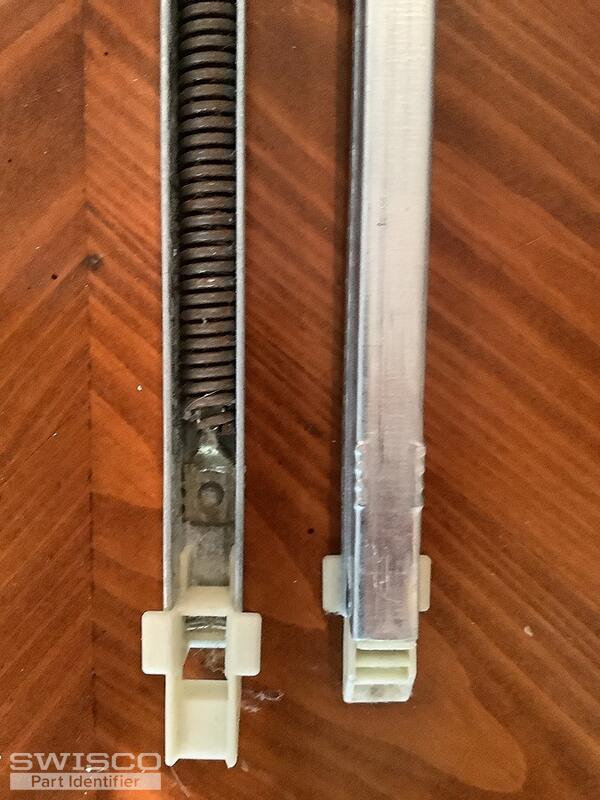

Thanks for reaching out to us. Your balance here looks to be a match for our S395-26. This comes with a 19-005 top and 15-001 bottom nylon fitting, so as long as those match then you should be good to go. You just need to weigh your sash on a scale to verify the best stamp option.

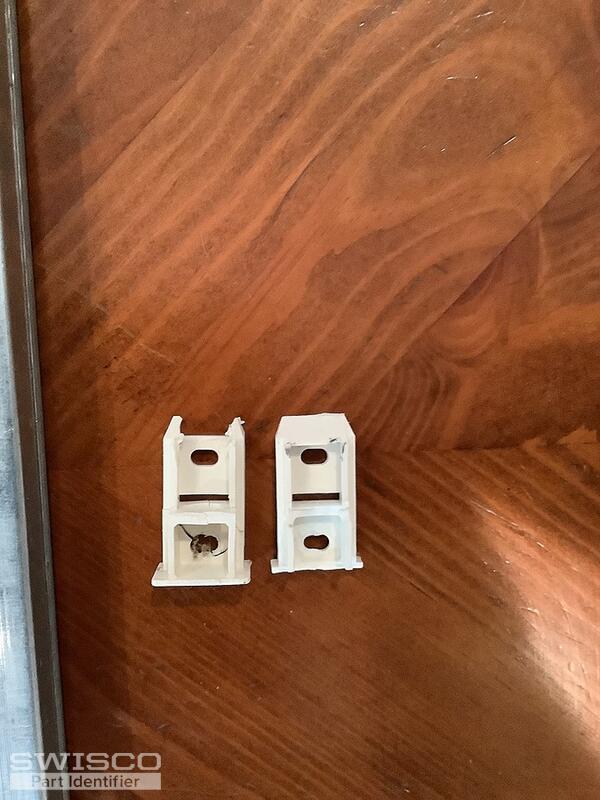

As for the top sash guide, we don't sell an exact match but the design is very similar to our 18-015. Review our dimensions to confirm that they align.

Alternate view of 18-015
Alternate view of 18-015

Alternate view of 18-015
Alternate view of 18-015
