Replacement parts

A quick learner from Skokie Illinois says:
May 12, 2023

Dear Sir's,

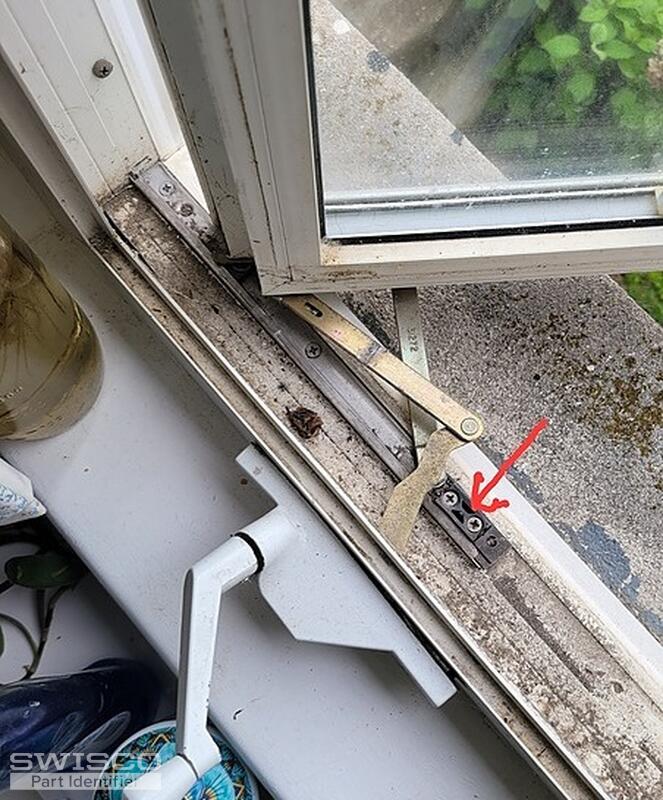

I'm looking to replace the little black plastic mounting piece that the bar marked 31272 attaches to (see arrow). I would also like to get a price to replace the operator assembly with the 1 goldish arm, hopefully without replacing everything else. Lastly I need a price for a replacement for the lock.

Thanks in advance for your help.

Sincerely

Brian

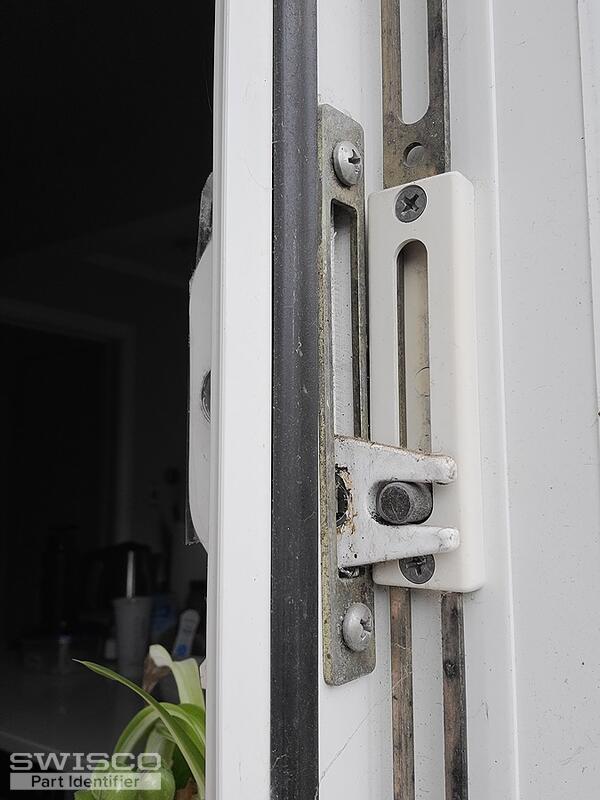

Thumbnail of the uploaded file named 20230512_081030.jpg

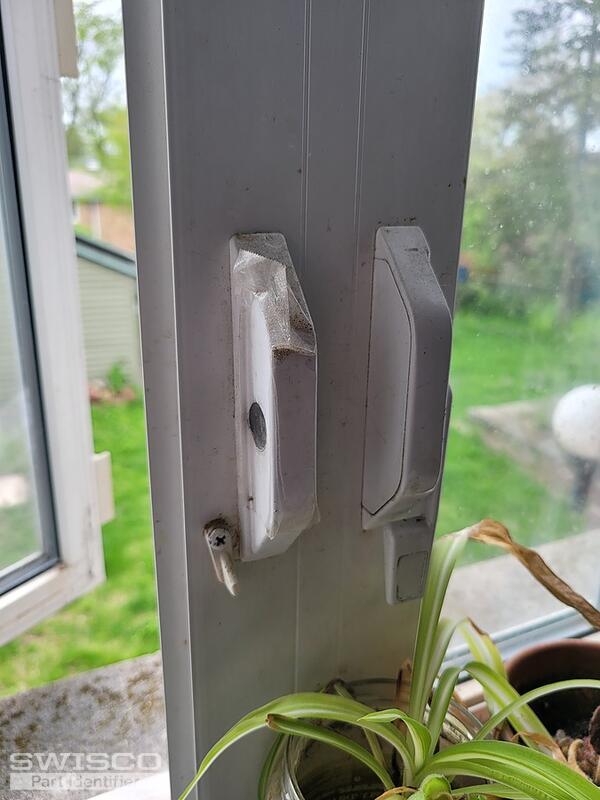

Thumbnail of the uploaded file named 20230512_081038.jpg
Thumbnail of the uploaded file named Screenshot_20230512_082017_Gallery.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 15, 2023

Hi there, Brian.

Start by taking a look at the specifications of our 39-188 and 39-187 operators along with the 36-048 hinge set to see how they match up with yours. Just be sure to replace the top and bottom hinges at the same time.

As for the lock, our 38-139 appears to be similar. Have a look at the dimensions, especially the projection of the fork, and see how they compare with your old lock.
Roto Multi-Point Lock, 37MM Fork
Roto Multi-Point Lock, 37MM Fork
38-139
$24.44
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-188
$37.10
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-187
$37.10
