Replacement parts for coil balances

Handy Person from Anaheim, CA
Hello,
Trying to find the right replacement parts for 2 coil balances for a bathroom window.

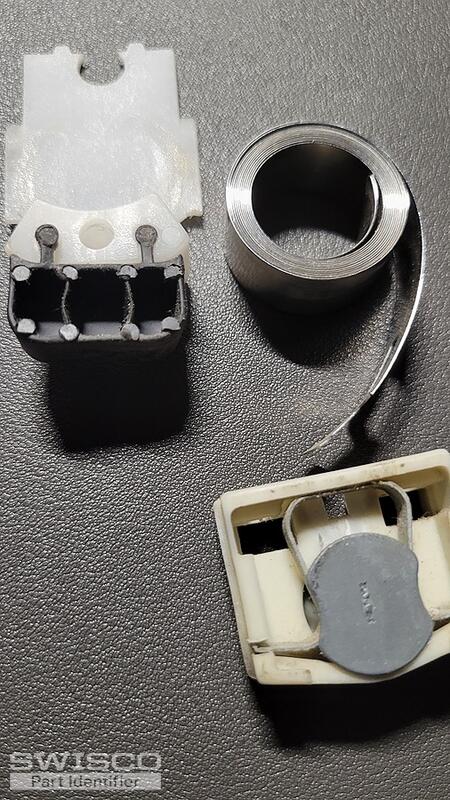

The broken parts can be seen in the pictures - the steel coil has a "3" stamp on it.
I could probably reuse the pieces that hold the pivot bar, but I would definitely need new coils and new coil housing parts.
Thank you in advance for any information.
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! Your shoe looks like the 15-111 Pivot Shoe. I am confident this is the correct replacement but be sure to double check the measurements to confirm.

Alternate image for 15-111
Alternate image for 15-111

This shoe is compatible with the Series 160 Coil Balance. Since yours is stamped with a 3, you'll need the S160-03. The compatible cover is the 15-150S and yours is being used along with a bumper like the 15-148.
