Replacement parts for my window, please

Question

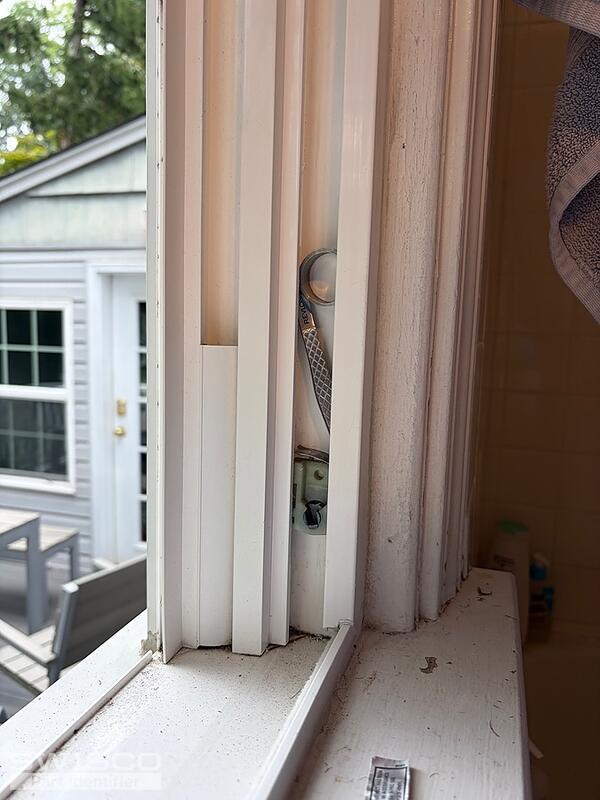

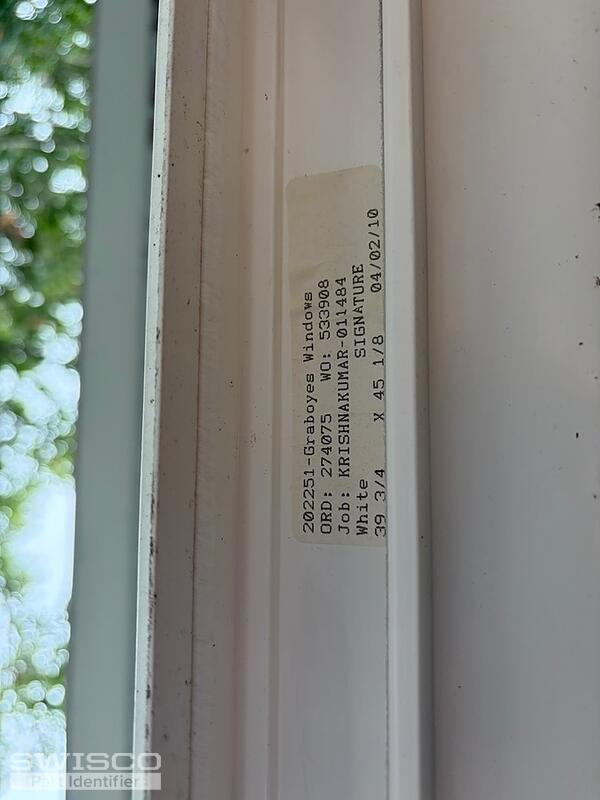

Graboyes Encore Double Hung window (manufactured 4/2/2010). Right-side constant-force coil balance has become disconnected from the pivot shoe. Coil is marked approximately 6.5. Looking for the correct replacement coil and coil support.

thanks so much!

Casey · Accepted Answer

Hello,

We can't be sure with the hardware still installed, but the pivot shoe is similar to the 17/32" thick 15-228. This is commonly used with our Series 160 coil spring, but you should check to make sure your spring is the same 1/2" width. See the S160-06 based on your stamp code. Thanks for posting!

Dimensions for 15-228
