Replacement parts marching like for like in different color

Professional from San Diego California

May 7, 2024 1:02 am

Hello,

We need to find matching parts just the trims and covers in black or dark bronze color. We are painting the wood window frames in black and would like replacements that match the new color scheme.

Is this something you can help us with?

Thank you!

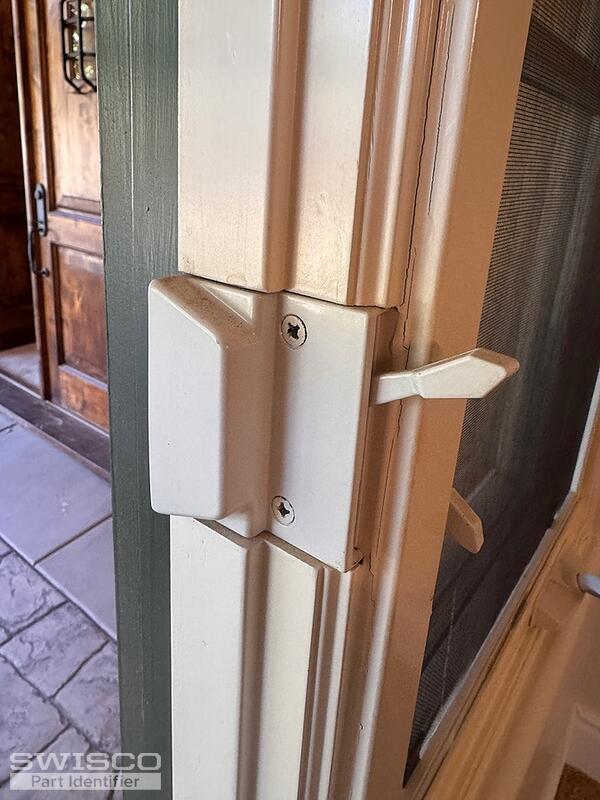

2 user uploaded images

6 Replies

Jasmine from SWISCO

May 7, 2024 11:51 am

Hey there,

Thanks for reaching out to us! The casement window lock you have looks a lot like the 38-075 Truth Hardware Low Profile Sash Lock. To confirm that this is the correct replacement, carefully look over the dimensions below. This lock can be used for both the left and right side of the window. This is available in black.

The compatible keeper is the 38-089.

Alternate image for 38-075

Alternate view of 38-075

The operator cover appears to be the 39-107 Truth Hardware Operator Cover; the handle appears to be the 39-114L Crank Handle. Both of these products are available in black as well.

I'm sorry to say that I am not sure what you a referencing in regard to the trims.

Professional from San Diego California

May 7, 2024 12:04 pm

Hi Jasmine,

Thanks for the quick response. These are the models I had seen, but I wanted to get a second opinion and this confirms it for me. I will make sure the measurements match.

Are these available for immediate shipping? Still need to provide quantities, but it will be somewhere in the range of 40-60 for each part in black.

And by trims, this is exactly what I meant. In other words, just the cosmetic covers will change, nothing in the internal hardware or actual operators need to be swapped, just new colored covers.

Thank you

Jasmine from SWISCO

May 7, 2024 12:46 pm

Yes, these are available to ship. You'll be able to add the quantities you need for each of the recommended parts on the website, once you are are ready to place the order.

Okay, thank you for clearing up the confusion. Normally when we get requests for the "trim" on the window it is in reference to the glazing bead. Just wanted to make sure I provided your with everything you requested; glad I was able to identify the right covers for you.

Please don't hesitate to reach out with any other hardware repair questions.

Have a great day!

Professional from San Diego California

May 7, 2024 1:52 pm

Thanks so much.

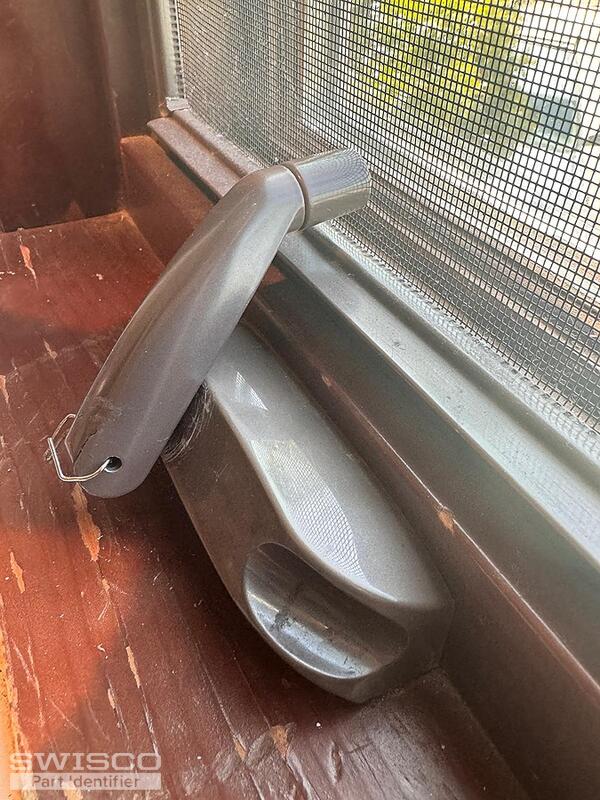

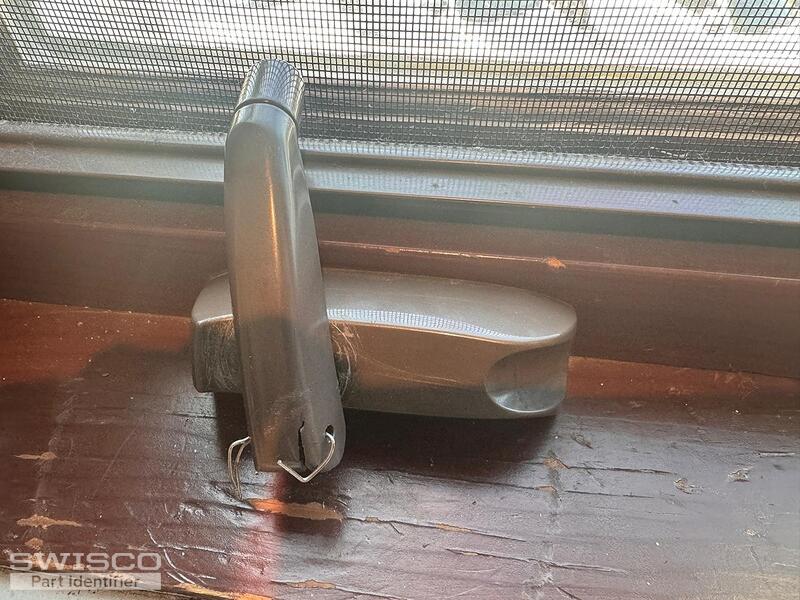

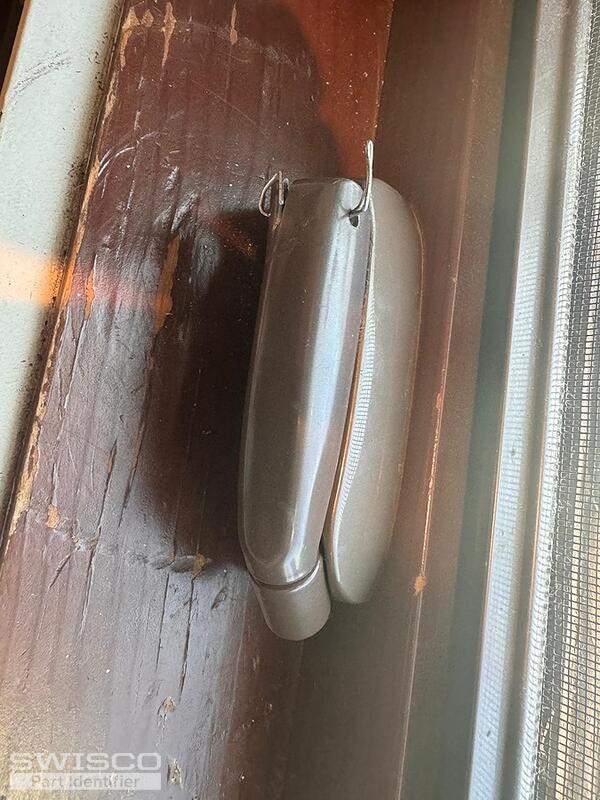

Also, while we have the conversation going, can you help me identify this crank handle and cover? the handle broke and the pin is missing too. We need to replace this.

Thank you

3 user uploaded images

Jasmine from SWISCO

May 7, 2024 2:58 pm

There is a chance we may be able to supply you with a suitable replacement for this handle and cover. However, we do not carry an exact replacement match for it. That said, for this operator, I'll need to a photo of the entire crank to determine exactly which one you have. This will help to determine if any of the covers and handles we carry would be compatible.

Please let me know if you have any questions in the meantime.
