Replacement parts metal bifold door pin

Home Owner

Oct 9, 2024 11:46 am

Hello,

I am looking for replacement parts for my closet bi-fold doors guide pins. The doors are metal These have been left as is since the house was built in the 70s. I do not know the door manufacturer.

The pin diameter is 1/4".
The nylon cap diameter is 3/8".

3 user uploaded images

8 Replies

Home Owner

Oct 10, 2024 5:28 am

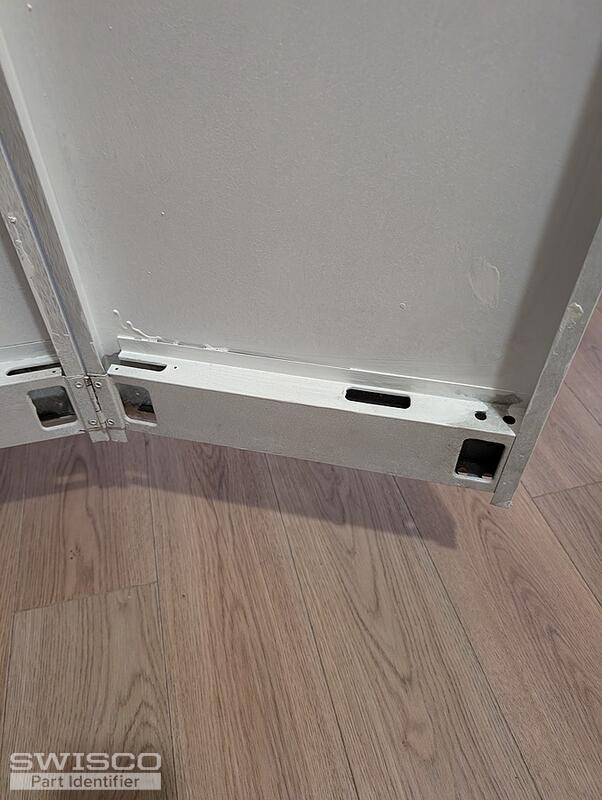

Forgot to add a larger picture of the door where the parts are missing

1 user uploaded image

Lauren from SWISCO

Oct 14, 2024 2:04 pm

Hello, thank you for posting,

I do not recognize the bracket at first sight that the pin is sitting in. I am going to have one of our senior experts take a further look to see if we can provide suitable replacement parts. We will be in contact as soon as more information is available. Thank you for your patience!

Paul from SWISCO

Oct 15, 2024 8:44 am

Hello,

Unfortunately I also do not recognize the manufacturer of this bi-fold door. May we see the track especially the pivot bracket and the bottom threaded pin if not missing? Thank you!

Home Owner

Oct 16, 2024 3:42 pm

Hello,

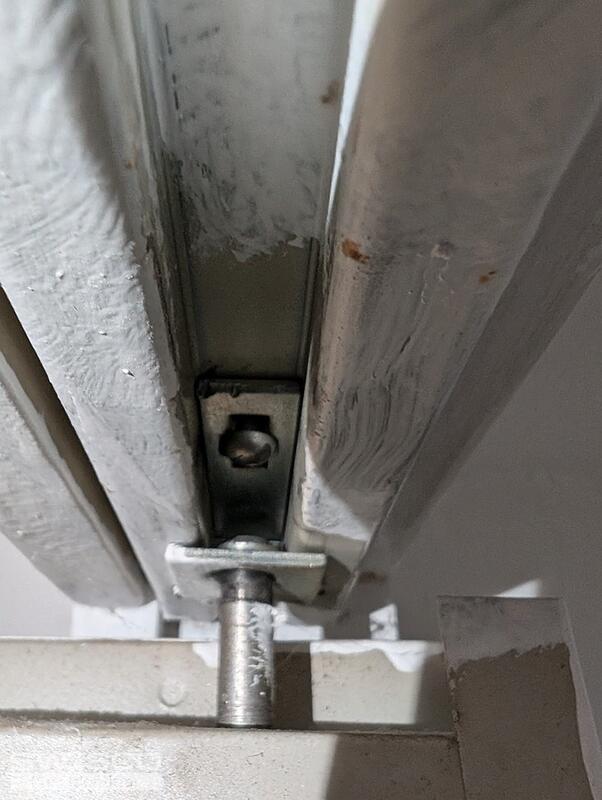

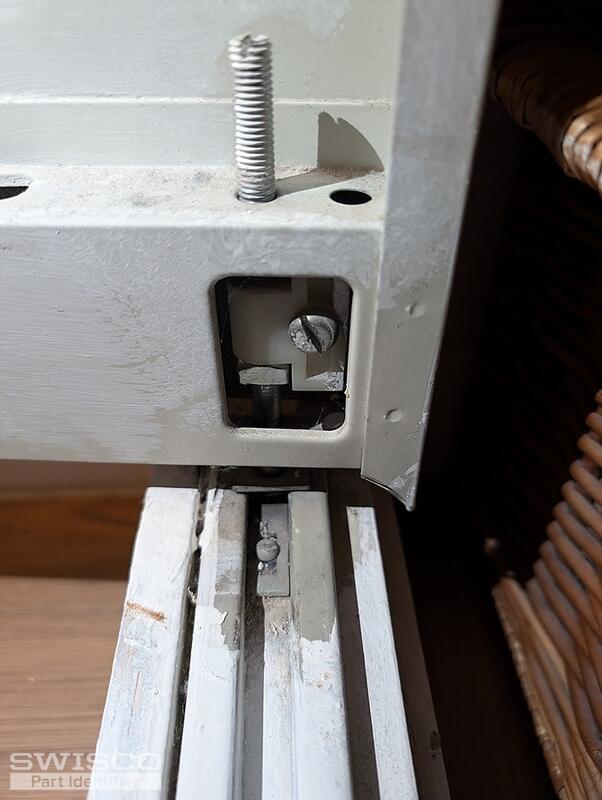

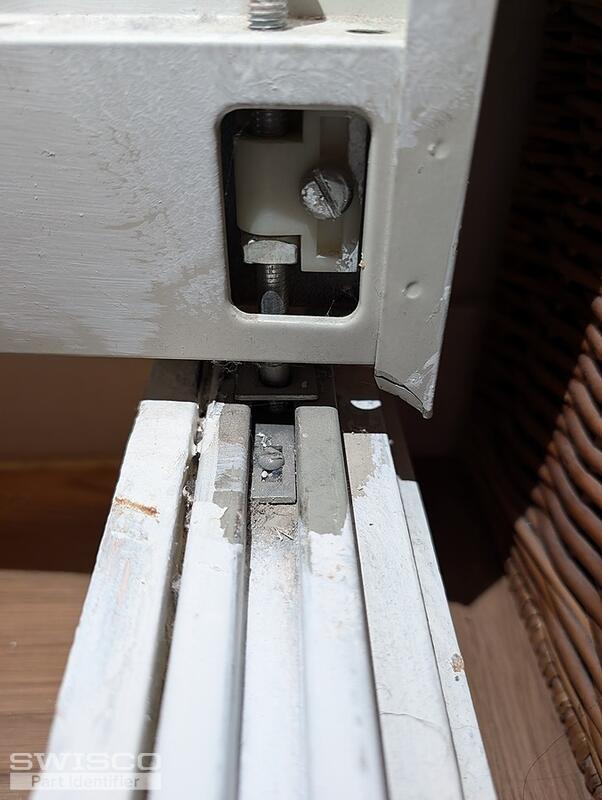

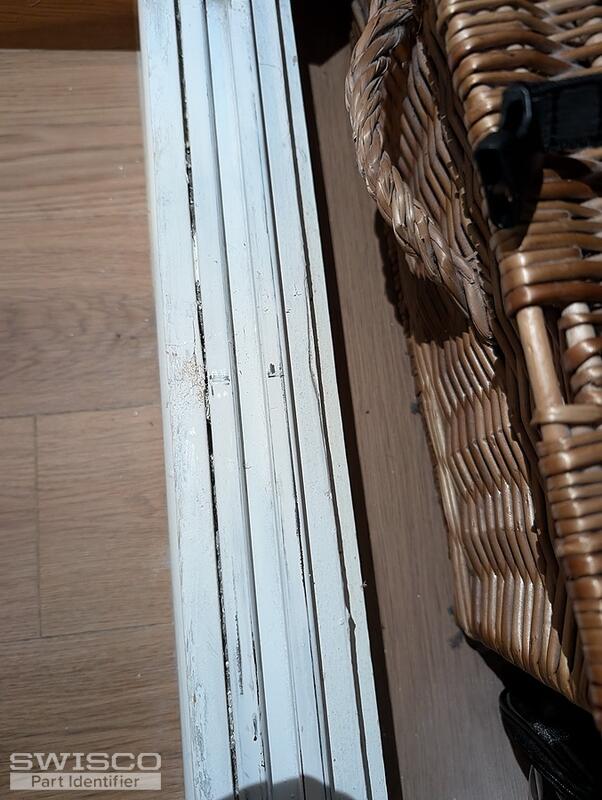

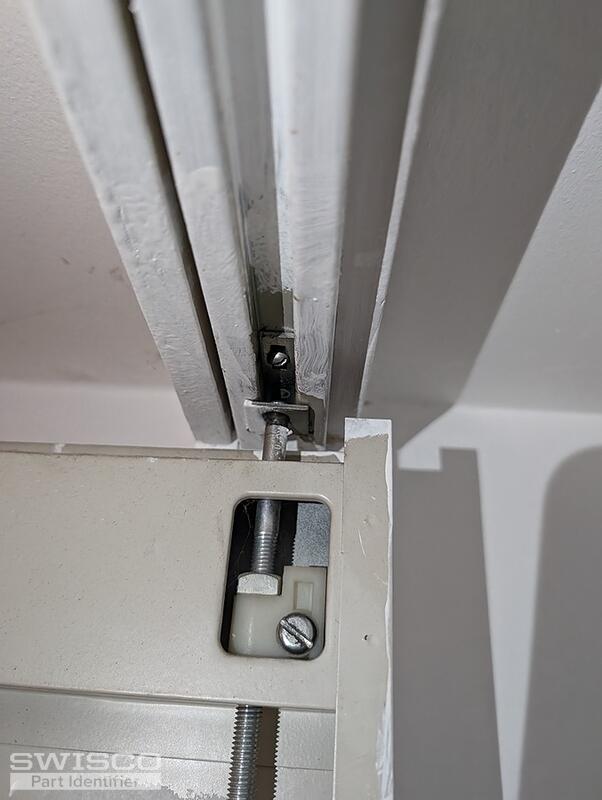

Many thanks for your help! See attached pictures of the track and the bottom and top pivot in place. Let me know if those are helpful or whether I unmount the door so I can take out the pivot pins and take pictures of them more closely.

5 user uploaded images

Paul from SWISCO

Oct 17, 2024 9:05 am

Thank you,

Unfortunately we were not able to locate your nylon housing for the pins. We can supply you with a plain pin , the 21-026B, the nylon cap, 21-105 that is similar to yours and if you need a spring,21-250. For the threaded pin we believe you can use 21-003. Please review and let us know what you think!

Home Owner

Nov 13, 2024 3:32 pm

Just a little note to say thank you, I've ordered some of the parts you suggested and managed to fix the door. The resources on your website have been invaluable for me to finally get that done. Much appreciated.

Paul from SWISCO

Nov 13, 2024 3:46 pm

This is great to hear and we appreciate your feedback! We are happy that we could supply the parts needed for your repair. Please let us know if you have any future hardware questions!
