Replacement parts needed

Home Owner from Minnesota

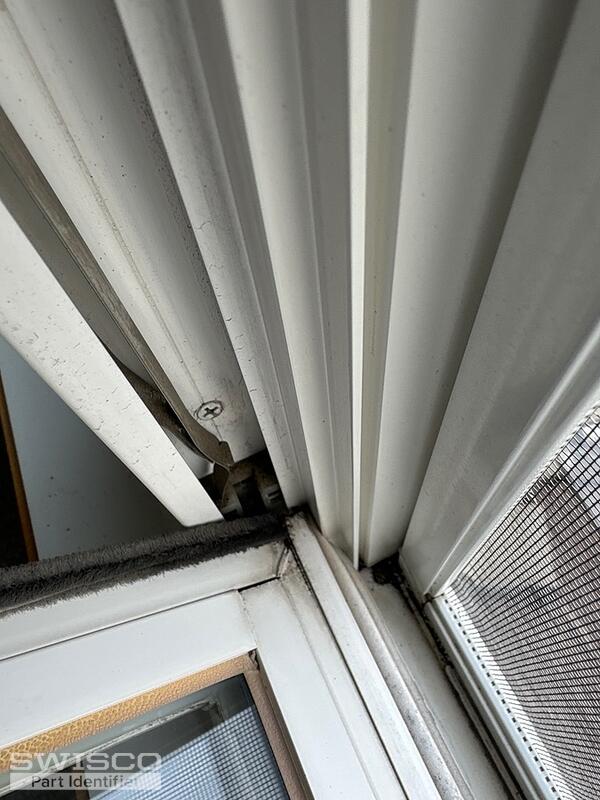

I am looking to replace the springs and tilt latches on some of the windows in a town home we purchased. I am hoping the sticker will give you an idea in what and where I can purchase them. I tried to get pictures of the spring and shoe mechanisms.
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! I am confident we can supply you with a replacement recommendation for the coil balance assembly you have, but I'll need to see the pivot shoe removed from the window to identify it.

In addition to the photo of the pivot shoe, I'll need to know the stamps/markings from the coil springs as well as the thickness (width). If there aren't any stamps/markings, I'll need to know the exact weight of the sash.

To replace the tilt latches, I believe you can use the 26-243 and its opposite handed version 26-244. Carefully review the dimensions and compare them to determine if these are the right fit.

Alternate view of 26-243
Alternate view of 26-243

Profile view of 26-243
Profile view of 26-243
