Hello,
I'm looking for 2 rollers (ball bearing type) and a retrofit track to replace the worn parts.

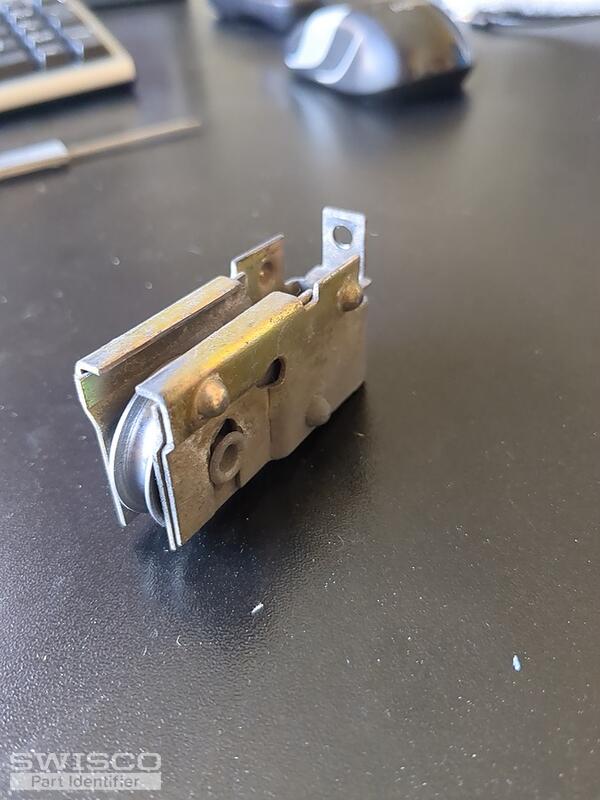

Roller dimensions:
-Wheel: concave 55/64" with 1 1/8" shoulders
-Dimple width: three dimples measuring 61/64", 31/32" and 63/64" each
-Housing width: 3/4"
-Housing height: 1 11/64"
-Housing length: 2 9/32"

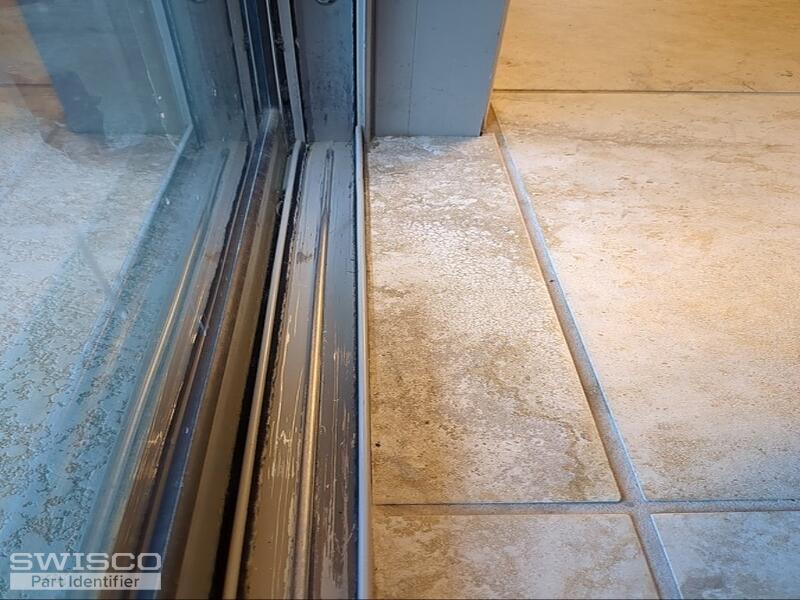

Track dimensions:
-Channel width: 1 1/4"
-Rail width: 11/64"
-Length: 6'
I would prefer a screw down rail. I plan on grinding the old rail off. Part of it has been flattened down fairly bad. Not sure if a cap will hold.
Thanks,
John
Replacement patio door rollers and track
Home Owner from Arizona
May 13, 2024 10:23 pm
5 user uploaded images
2 Replies
Casey from SWISCO
May 14, 2024 2:43 pm
Hello,
Your roller resembles the 81-269 shown below. I'd recommend double-checking your dimensions compared to ours.
Alternate image for 81-269
As for the track, we offer the 6' long 80-106. Review the specifications and installation video to confirm this would work for your application. Thank you!
Profile diagram of 80-106
