Replacement pivot shoes

A home owner from Reidville, South Carolina says:
I was hoping you could help me identify the correct replacement shoes and any other tools needed to replace both window shoes?
Thumbnail of the uploaded file named PENNCO INC.
Thumbnail of the uploaded file named IMG_2189.JPG
Profile picture of Paul
Paul from SWISCO responded:

Thank you for posting. At first glance, your pivot shoe appears to show some similarities to our 15-167. However, since your pivot shoe is still installed and we do not have the measurements of your shoe, we can not be accurate on our recommendation. You will need to remove the pivot hoe from the window and send additional photos of the pivot shoe as well as provide measurements and dimensions so that we may be able to further assist you. I also noticed a photo of a window sash lock; are you looking to replace that as well? If so, please provide the screw hole distance and we will see what options are available for you.

A home owner from Reidville, South Carolina says:
I'm hoping these pics help identify the shoe. I am helping a friend and did not want to cut it out if possible. What can I use to spread the sides so the shoe will slip out? Do you sell these tools as well?
Thumbnail of the uploaded file named IMG_2215.jpg

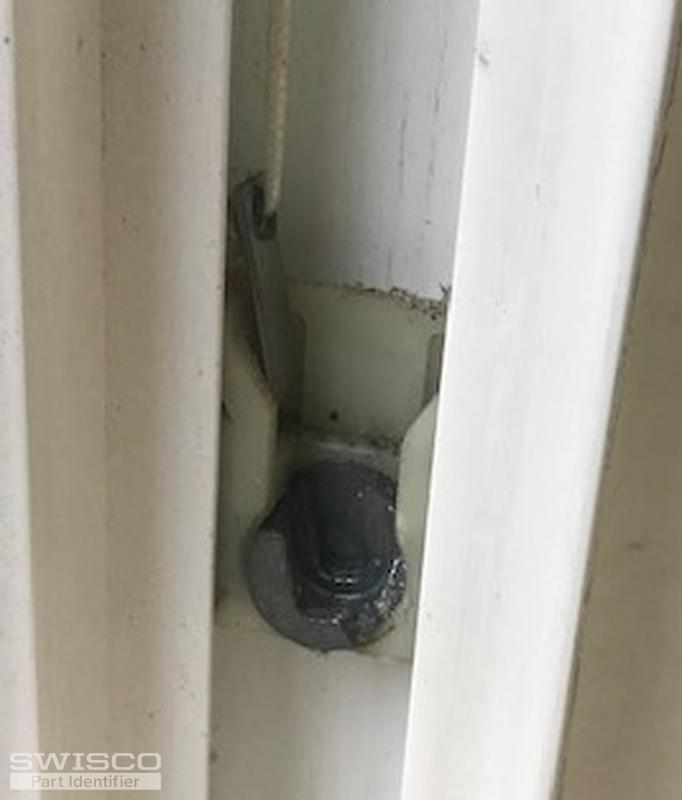

Thumbnail of the uploaded file named IMG_2216.jpg
Profile picture of Paul
Paul from SWISCO responded:

Thank you for replying back with more photos. However, I am a little confused. The photos you show here are completely different than from the ones you sent in your first inquiry. Could you get back to us and clarify which pivot shoe you are looking to replace?

The pivot shoe you show here looks similar to our 15-015. But, I can't 100% confirm that until we see photos of it removed from the window and have you give us some detailed measurements.

There is a second way to remove the pivot shoe from the window using the 75-069 jamb spreader tool. Take a look at the video below on how to remove the pivot shoe from the window using this tool.
