Replacement rollers

Quick Learner from Sedona, AZ

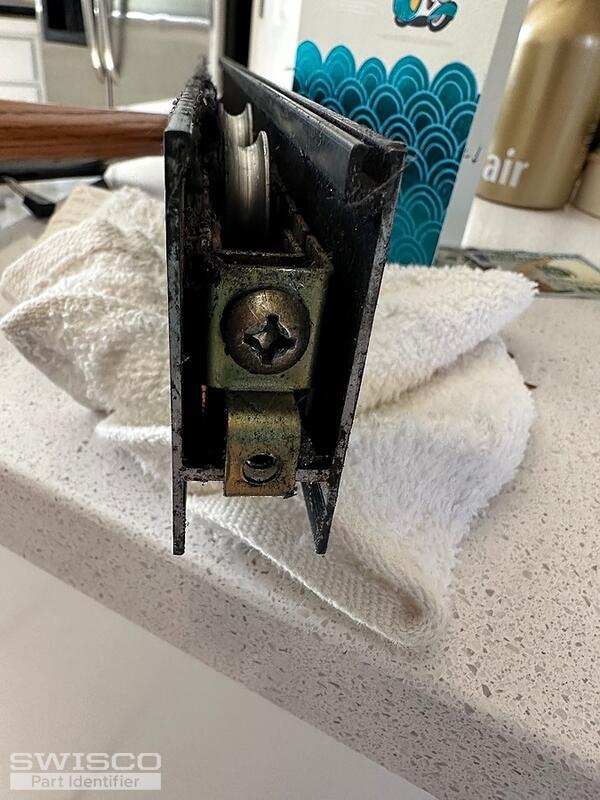

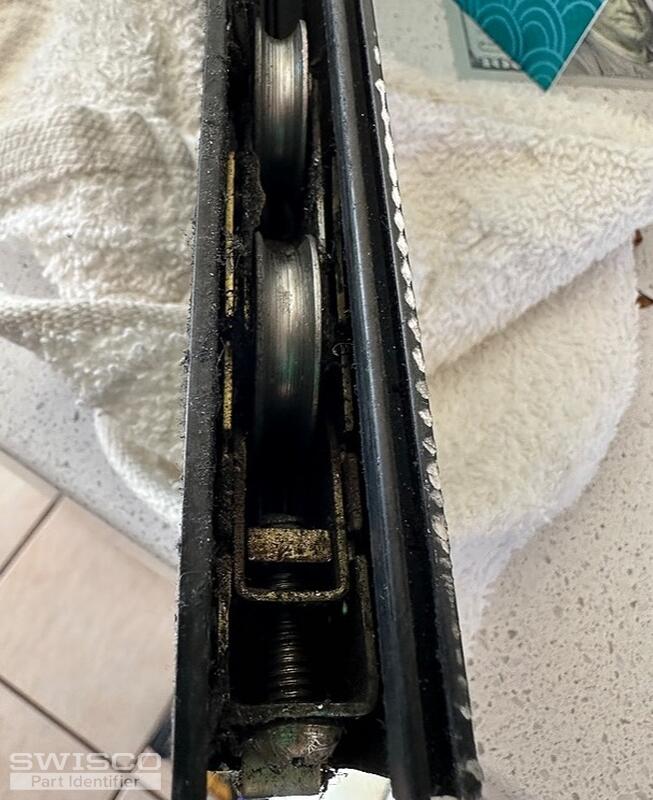

My sliding door states that it was made by Western Insulated Glass SGD-C30
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unforutnately, we don't carry an exact match for the roller assembly shown in your photos. With that being said, take a look at the similar tandem rollers related on this page, along with the related videos. The determining factor would be if one of these options matches the housing width, height, and wheel diameter of your original assembly. Thanks for posting!

Quick Learner from Sedona, AZ
Hi Casey,
Thank you For your response. The 81–056 roller assembly appears to be the one I need. My current track plate, that the roller runs on,has a slight dip in one section. Do you have a product that will repair or replace this dip that is compatible with this roller assembly. I watched the video and it looks like Swisco sells replacement tracks. I just want to order what you would suggest. Thank you again for your help.
Fred
Casey
Casey from SWISCO
SWISCO
Expert

Great! We offer the 80-106 track or 80-102 cover if the damage is minor. Take a look and see if the measurements below would fit your track rail.

Profile diagram of 80-106
Profile diagram of 80-106

Dimensions of 80-102 Track Cover
Dimensions of 80-102 Track Cover
