Replacement sliders

Quick Learner from San Diego, CA

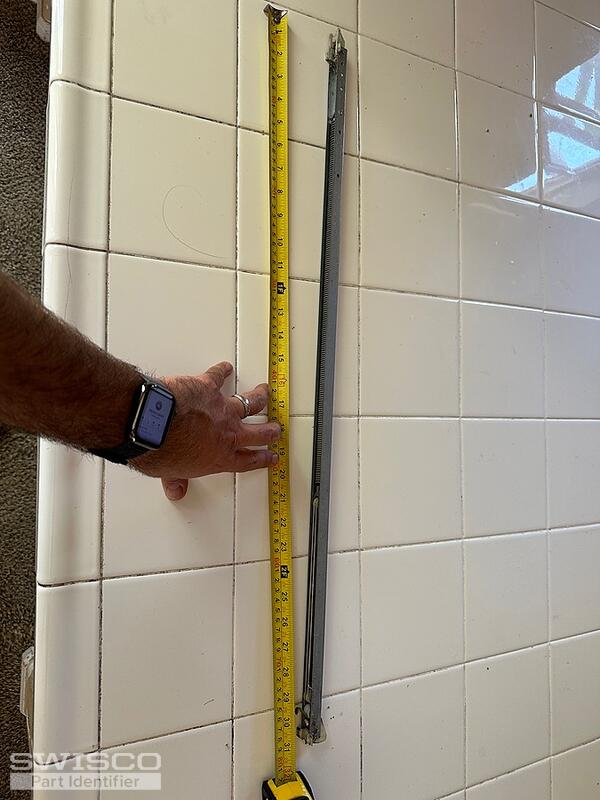

I am looking for nine sets of replacements. Would you let me know which one is the replacement part and I will order it
4 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

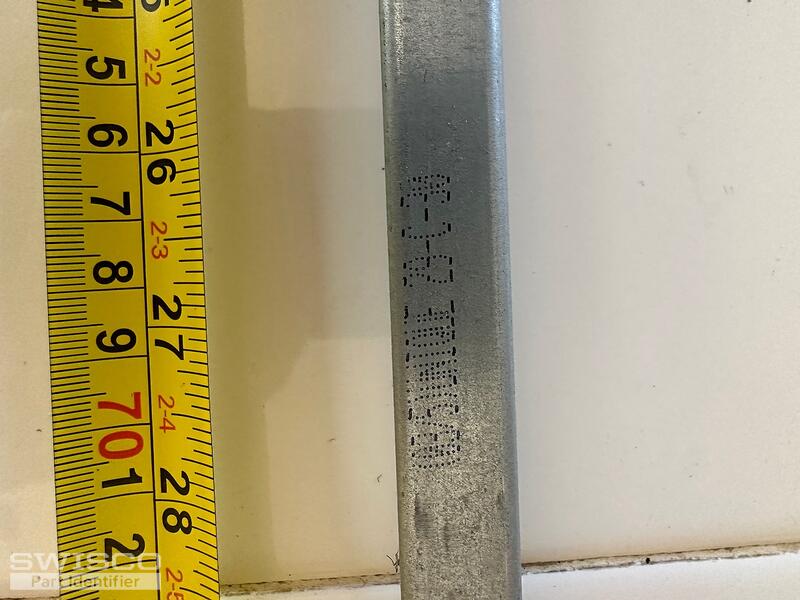

Thanks for posting. I believe this is either our S380-30 or S385-30 Channel Balance. The chief difference between these two balances is the depth of that bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best. In either case, you'll need to choose a new stamp option, which designates the strength of the balance: go with 2930, which conforms with your old balance's stamp of 29-C.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from San Diego, CA

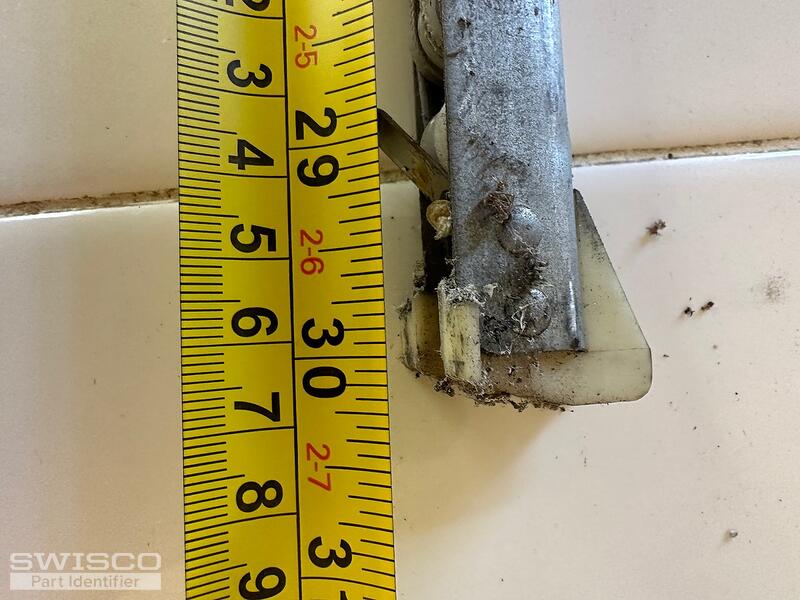

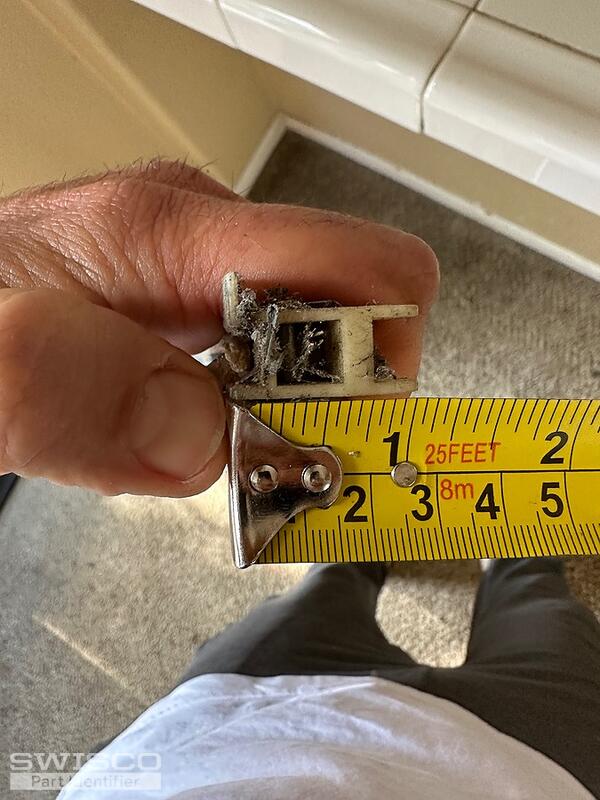

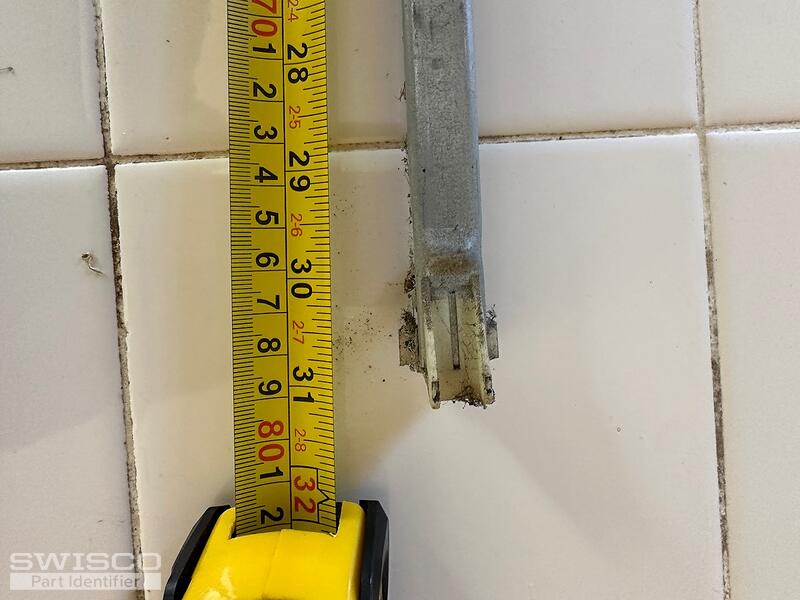

Here is an image of the measurement.
1 user uploaded image
Bob
Bob from SWISCO
SWISCO
Expert

Thanks! That appears to be 1", so the S380-30 is my top recommendation.

Quick Learner from San Diego, CA
Great. I ordered 18 for 9 windows. Would you verify order if possible that I did it correctly.
Bob
Bob from SWISCO
SWISCO
Expert

I see you ordered the S380-30 with a 2930 stamp option. The 2930 is a more modern version of your old stamp of 29-C-30, so that is correct.

Please feel free to reach out if you had any other questions.
