Replacement sliding door handle for Allen Stevens

A quick learner from Davenport FL says:
January 9, 2023
I have an Allen Stevens sliding door handle with dlock which needs replaced. The details of the handle are:
Two screws with a 4Inch center
1 1/16 door thickness.
Wooden handle on the outside
Keyed
Thumbnail of the uploaded file named IMG_3239.jpg
Thumbnail of the uploaded file named IMG_3240.jpg
Thumbnail of the uploaded file named IMG_3241.jpg

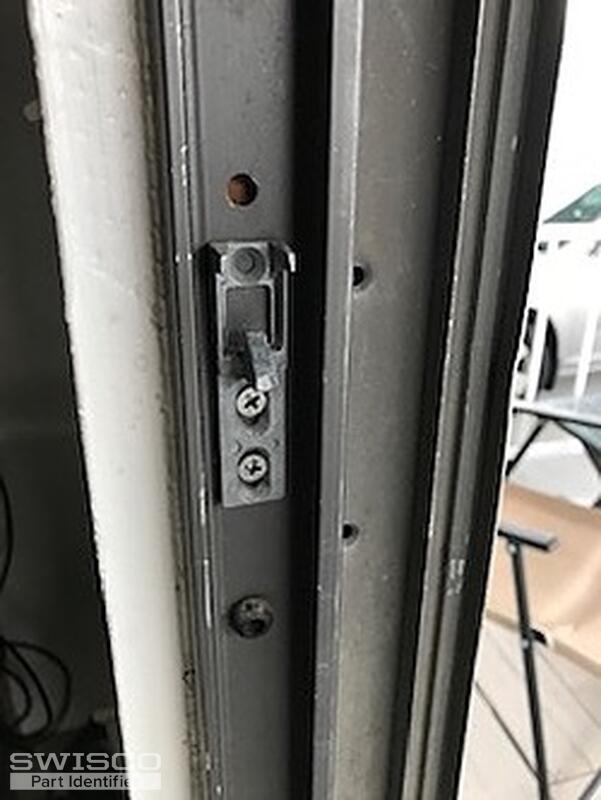

Thumbnail of the uploaded file named IMG_3242.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 10, 2023

The handle set shown here reminds me of our 82-003 with 3-15/16" hole center spacing. Please note that we also carry the 82-055K with 3-1/2" hole center spacing. The 82-055K comes keyed but the 82-003 does not so you would need to purchase the 82-306 keyed exterior pull to use with it. Look over the dimensions to see if one of these parts matches up to yours. Thanks for posting!
A home owner from New Jersey says:
February 20, 2023
Casey,
This looks a lot like our handle set.
We are looking for a version that has a lower profile for blinds clearance. Do you have anything that stands out lower than ours?

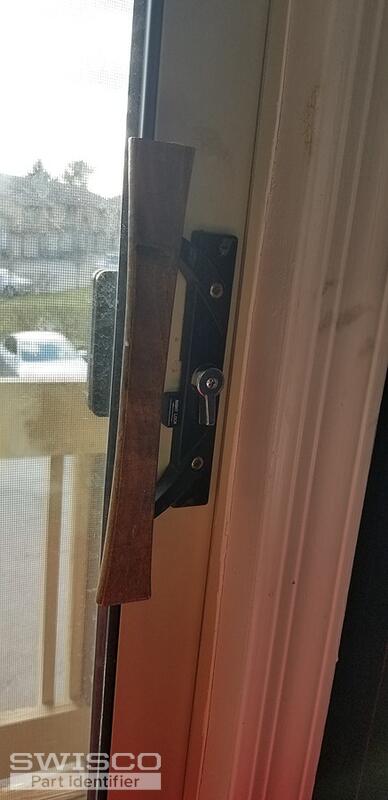

Thumbnail of the uploaded file named HA Kunk 2.jpg

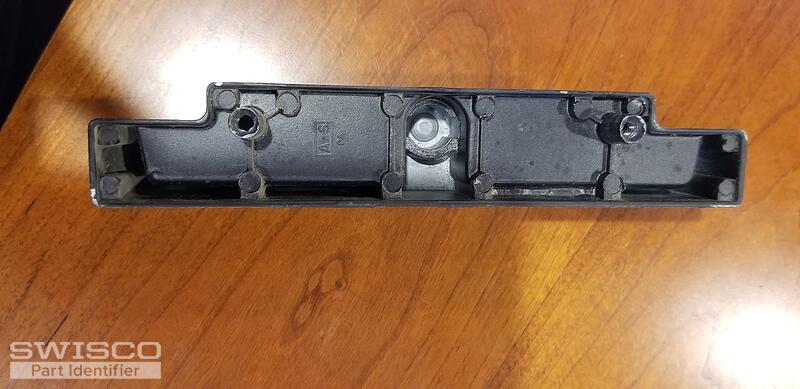

Thumbnail of the uploaded file named HA_Kunk 1.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 20, 2023

Unfortunately, we do not carry a low-profile version of any of the handles mentioned in this thread. We apologize for the inconvenience.
A home owner from New Jersey says:
February 20, 2023
Hi Casey,

Thank you for your quick response. 82-306 looks like something we were looking for. Do you think this might be a viable option?
Profile picture of Casey
Casey from SWISCO responded:
February 21, 2023

You may be able to use the 82-306 depending on your installation hole spacing but keep in mind that it is an external handle for the outside of the door. You mentioned that you are looking for something low-profile for blind clearance, which would normally be installed on the inside of the door.

Alternate view of 82-306
Alternate view of 82-306

Hole center dimensions for 82-306
Hole center dimensions for 82-306
