Slot dimensions cut in window are .560" wide X 2.570" length. Slot depth is .410"
Slot has full radius cut in end.
What would be the part that would fit these dimensions?
Thank You,
Scott J.
Replacement tilt latch
Quick Learner from White House TN
Oct 15, 2017 10:16 pm
I am looking for a replacement tilt latch. Left and right.
Slot dimensions cut in window are .560" wide X 2.570" length. Slot depth is .410"
Slot has full radius cut in end.
What would be the part that would fit these dimensions?
Thank You,
Scott J.
Slot dimensions cut in window are .560" wide X 2.570" length. Slot depth is .410"
Slot has full radius cut in end.
What would be the part that would fit these dimensions?
Thank You,
Scott J.
3 Replies
Tom from SWISCO
Oct 20, 2017 9:15 am

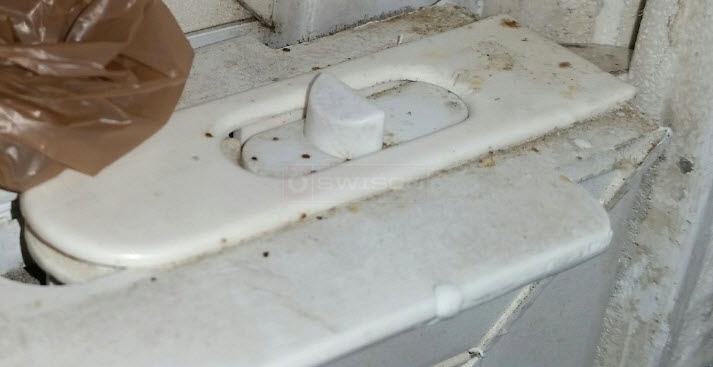

Your tilt latch looks a lot like our 26-393B, but the dimensions are a little different. I also see a gap between the end of your latch and the sash. Was this the original part to come with the window, or an after market replacement? I see you were looking at our 26-442, which more closely matches your dimensions, though not exactly. Could you get this to work in the existing slot?
Quick Learner from White House TN
Oct 20, 2017 7:48 pm
Thank you for your reply.
This is a takeover home and I can only assume these are not the original latches as some in other rooms have a square back and some like the picture are round.
All of the slot dimensions cut in the window are the same. I agree with you saying about the 26-442 being my closest option. Just wanted to touch base with you before I purchased to see if another part would work better.
Thanks for the help I will be ordering the 26-442.
This is a takeover home and I can only assume these are not the original latches as some in other rooms have a square back and some like the picture are round.
All of the slot dimensions cut in the window are the same. I agree with you saying about the 26-442 being my closest option. Just wanted to touch base with you before I purchased to see if another part would work better.
Thanks for the help I will be ordering the 26-442.
