Replacement weatherstripping for 10 year old PGT vinyl winguard casement windows

Quick Learner from Treasure Island, FL
The weather stripping on my PGT casement windows is a leaf style with a kerf base.  PGT can't tell me what model would replace it and keeps referring me to Swisco but they can't tell me any  model number that would replace it.  PGT changed the design of the windows since mine were installed and now use a bulb type weather stripping and keep referring me to that but it isn't the right weather stripping. Can anyone help me?
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thanks for reaching out to us. We're happy to help look into this but we will need more information. We specifically need you to remove an undamaged sample of the old seal and show us a clear photo of the end profile. Written out dimensions would be helpful, too.

Quick Learner from Treasure Island, FL

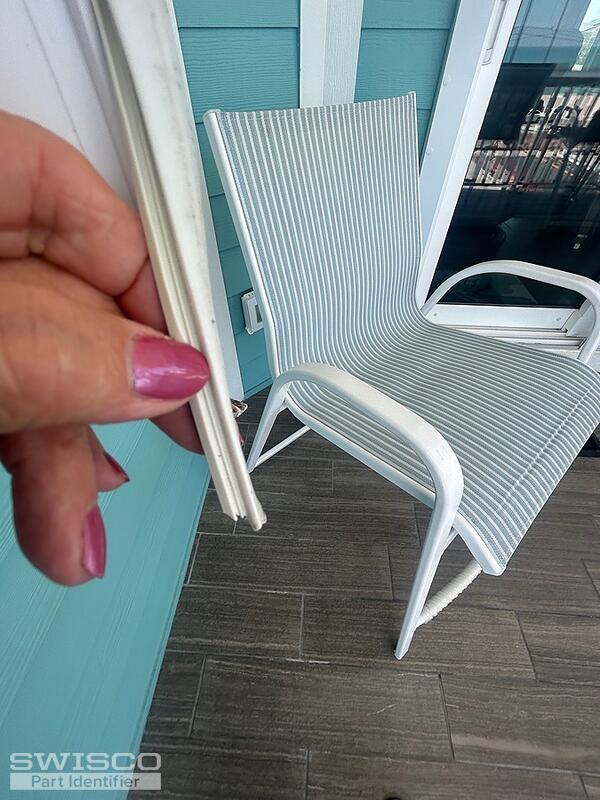

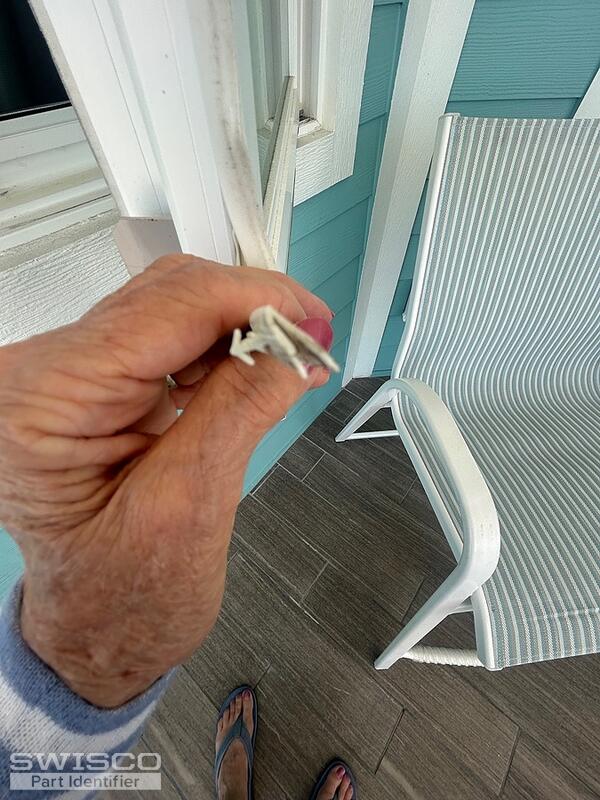

Here are the pictures of my PGT casement window weatherstripping that needs replacing. The width of the weatherstripping viewed straight on to the edge of the window frame is 3/8".  The kerf portion of the weatherstripping is 3/16" wide and 3/16" deep.
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for the additional photos! We don't have an exact match for this. The 58-114 is a bit similar but the dimensions are off. We also have the 58-053. Review the specifications for these parts and see what you think.

Profile diagram of the 58-114
Profile diagram of the 58-114

Profile drawing of the 58-053 bubble seal.
Profile drawing of the 58-053 bubble seal.
