Replacement window ballast

Home Owner from The Villages, FL

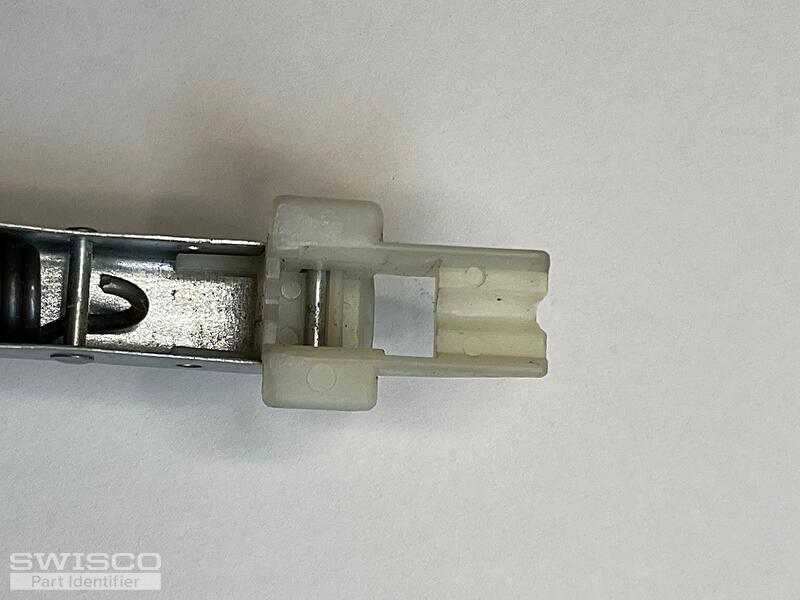

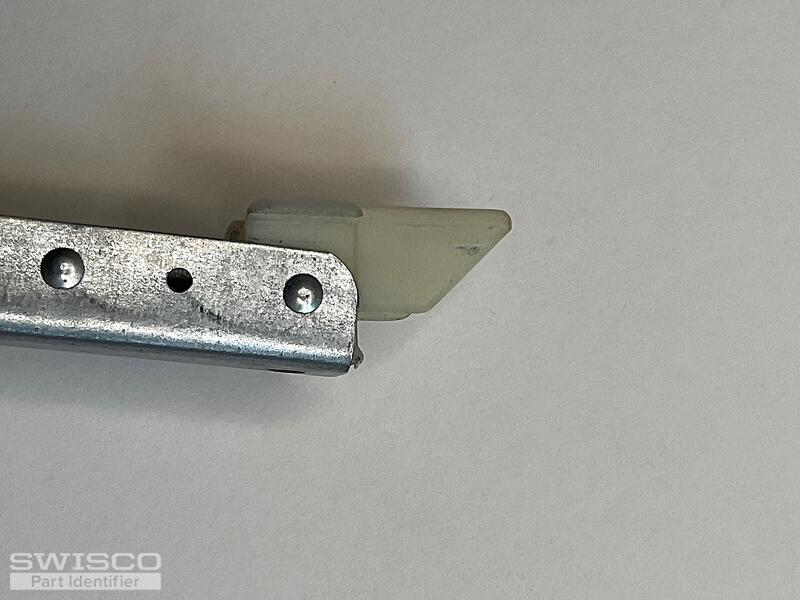

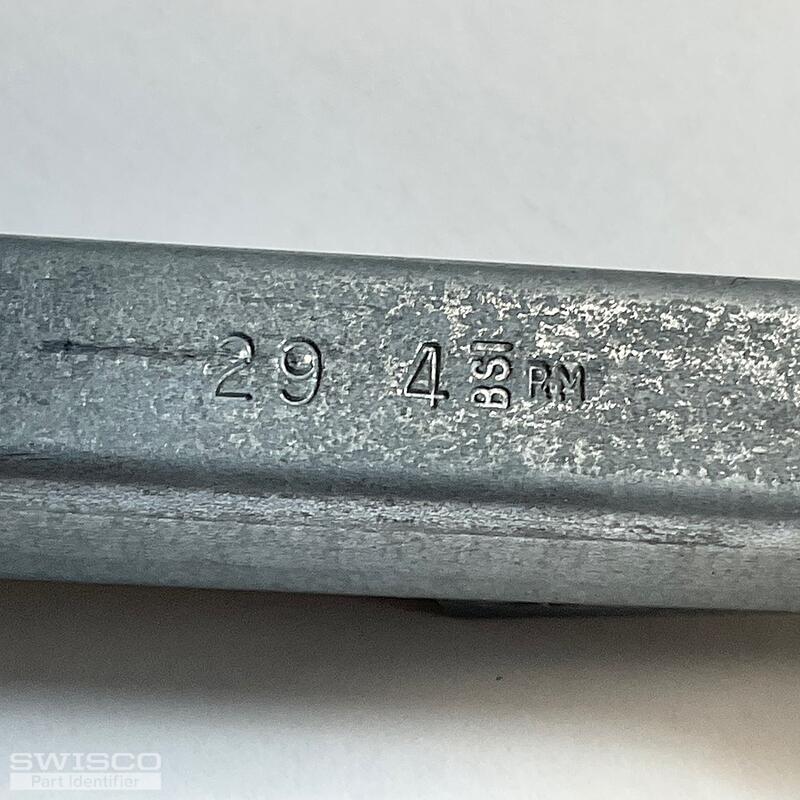

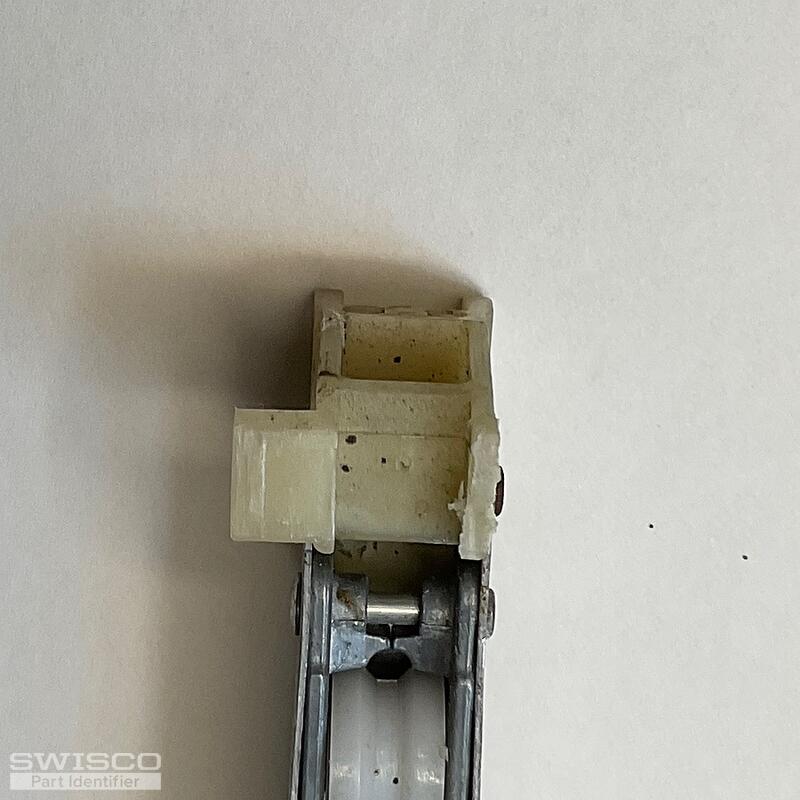

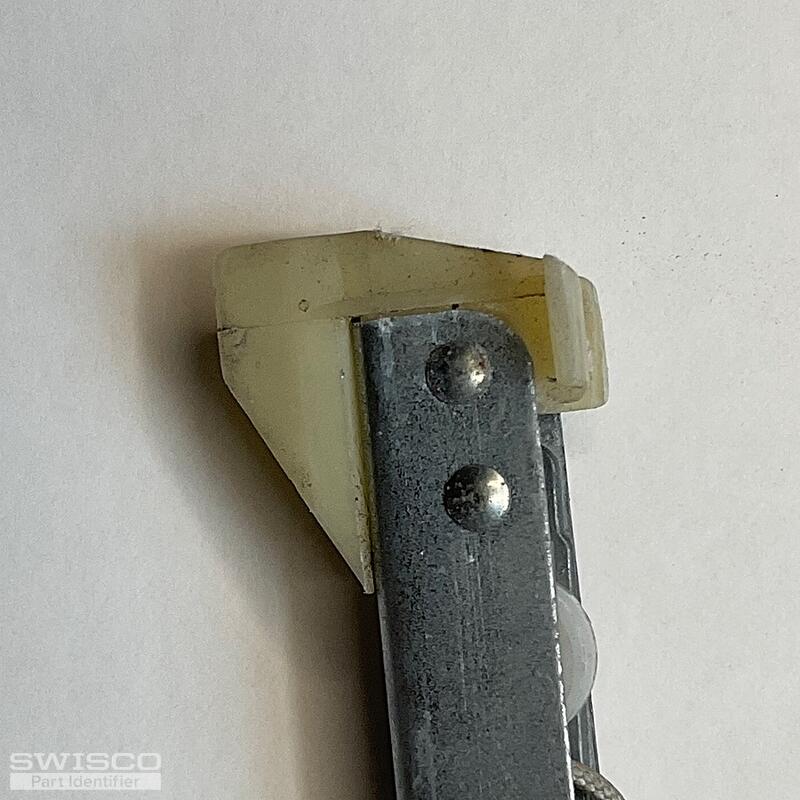

Markings on ballast: 29 4 BSI RN(photo of markings included. Additional photos can be provided. I reached the maximum upload for your site.

5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. Is the metal channel, not including the nylon fittings at either end, 30"? If so, I believe you have either our S380-30 or S385-30. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the image below. Compare both measurements with your old hardware to see what matches what you need. In either case, for a stamp option choose 2940.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
