Replacement window channel balance

Quick Learner from Los Angeles

Oct 21, 2024 8:25 pm

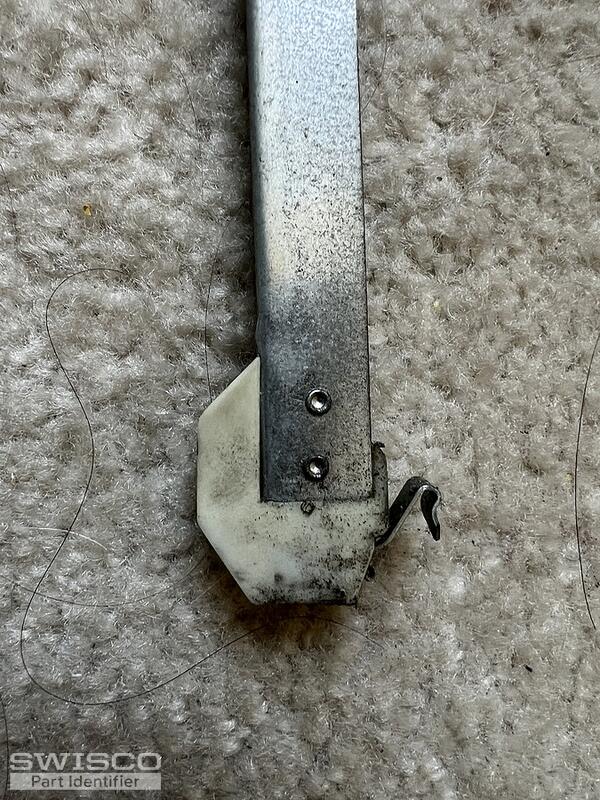

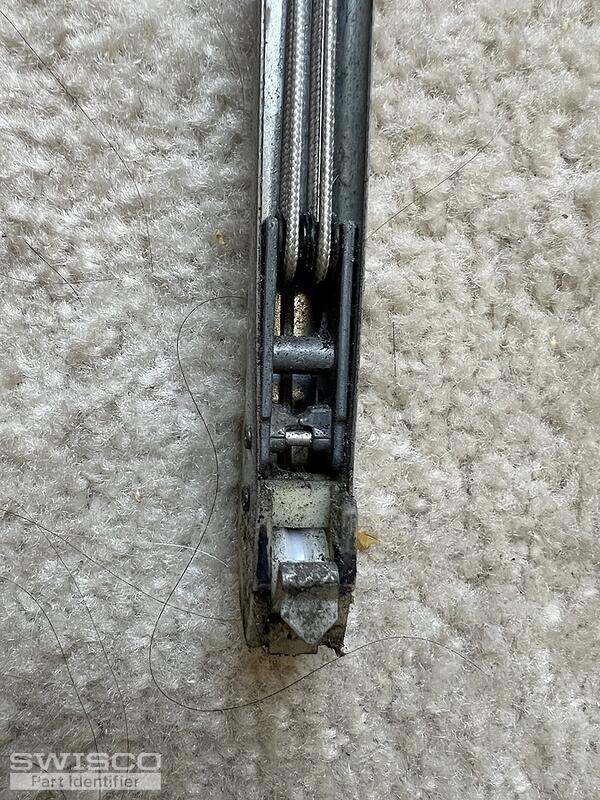

I'm looking to replace the channel balance on my windows. They are marked as 27-4 (photo attached) with bottom guides that I'm having trouble finding. If you can help identify the same part, I'd really appreciate it. Thank you.

5 user uploaded images

6 Replies

Emily from SWISCO

Oct 24, 2024 11:01 am

Hello there!

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 27-5/8" long. Can you confirm that for us? Can you also show us a close-up photo of the hook? I just need to determine if it matches the 62-106. Lastly, how many balances are you looking to replace?

Quick Learner from Los Angeles

Oct 24, 2024 1:30 pm

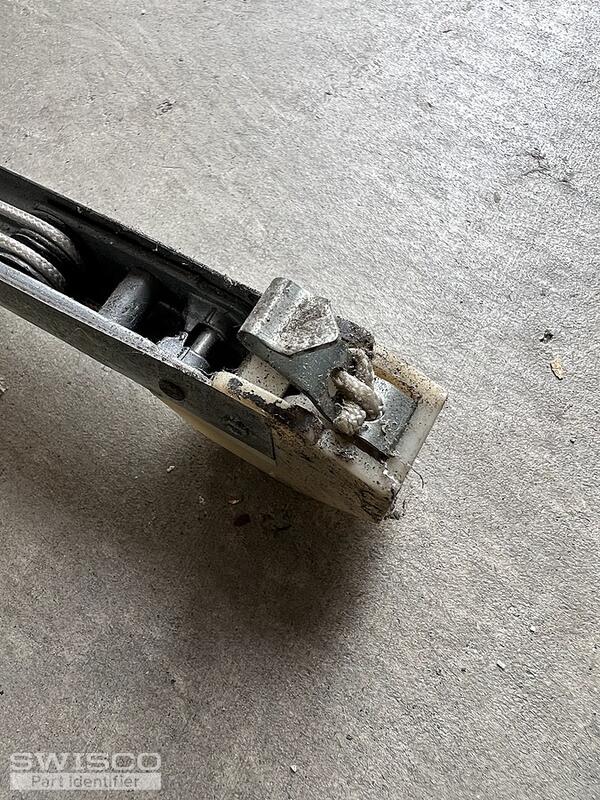

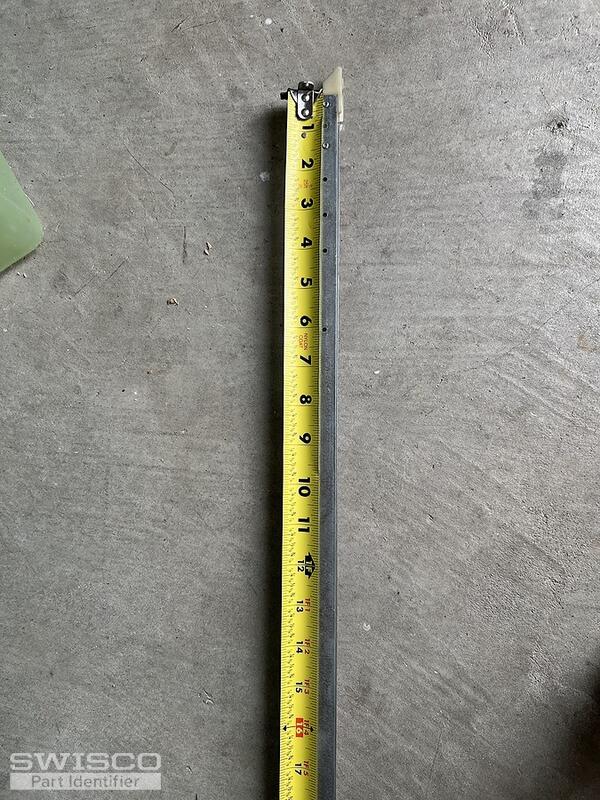

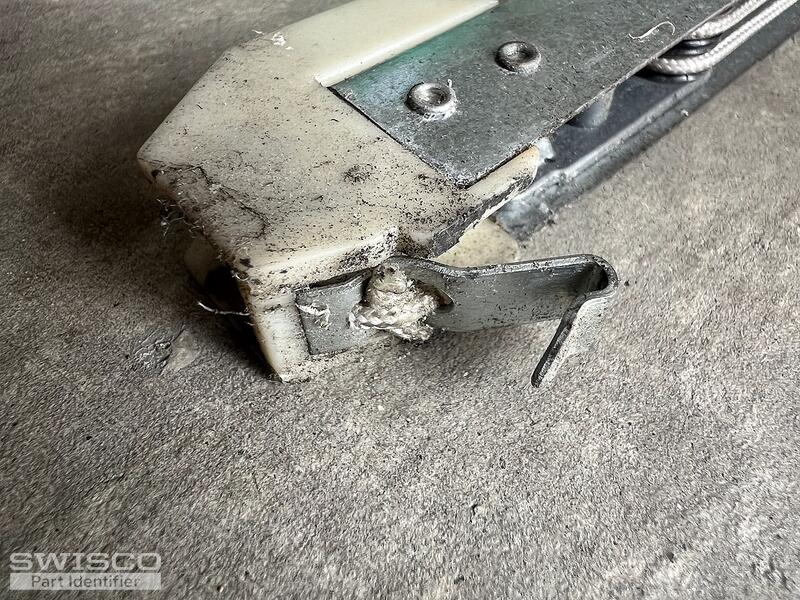

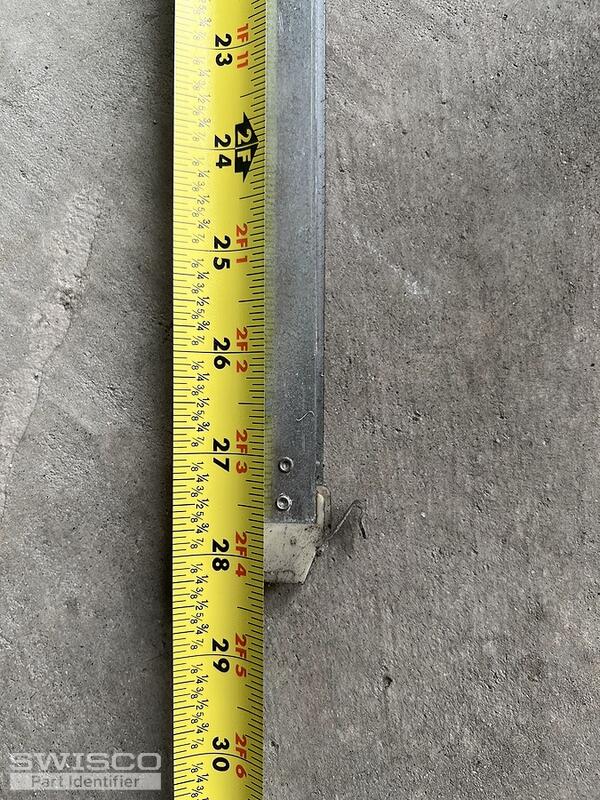

Thank you for replying. Can confirm the metal channel length (photo attached), and I've also attached more photos of the hook. I'm looking to replace 4 or 6 of them depending on the cost. I didn't realize it would require a custom build. We may replace the windows outright in the future, so if they are substantially more expensive, I may have to think about it. Please let me know if you need any more photos or details. Appreciate your help.

4 user uploaded images

Emily from SWISCO

Oct 25, 2024 8:28 am

Thank you for the additional photos! The price per balance is $35.52 per balance but we offer price discounts starting at (6) where the price is $26.64 per balance.

With that said, I will email you a purchase link for (6) of these balances that you can use to place an order on our website. Note that the top and bottom fittings of the replacements will have wings but this won't affect function.

If you'd like to change the quantity, just let me know right here on this page!

Quick Learner from Los Angeles

Oct 25, 2024 4:14 pm

Order has been placed. Thanks for your help!

Emily from SWISCO

Oct 28, 2024 8:25 am

My pleasure. I'll be here if you need anything else!
